Texas Instruments TLC251CP

B005S3JTIS

TLC251CP

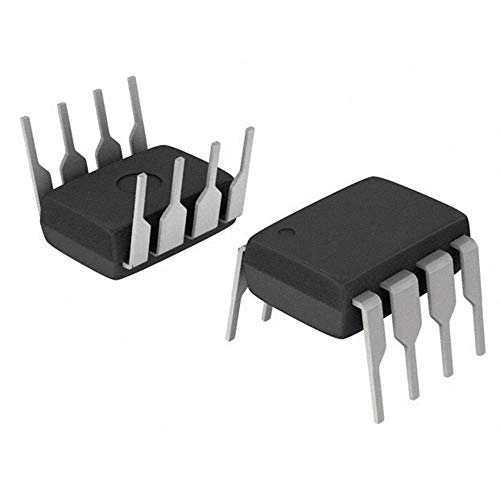

TLC251CPzoom

Attributes

Key Value
Alternate Part No.595-TLC251CP
Amplifier TypeGeneral Purpose, Low Po.
Bandwidth1.7MHz
Base Product NumberTLC251
BrandTexas Instruments
CaseDIP8
CategoryIntegrated Circuits (IC.
CMRR - Common Mode Reje.65 dB
Com Mode Inp Range (VIC.9.2
Current - Input Bias0.7 pA
Current - Supply950?A
en - Input Voltage Nois.25 nV
Gain Bandwidth Product2.2 MHz
GBP - Gain Bandwidth Pr.1.7 MHz
I(io) Max. (A)1.0p-
Ib - Input Bias Current60 pA
Inp Bias Curr. Max. (A)1.0p-
Input bias current600pA
Input offset current300pA
Input offset voltage12mV
Kind of packageTube
ManufacturerTexas Instruments
Manufacturer Part No.TLC251CP
Maximum Operating Tempe.+ 70 C
MfrTexas Instruments
Minimum Operating Tempe.0 C
MountingTHT
Mounting StyleThrough Hole
Mounting TypeThrough Hole
No. of Pins8
Number of channels1
Number of Channels1 Channel
Number of Circuits1
Oper. Temp (?C) Max.70
Oper. Temp (?C) Min0
Operating Supply Voltage1.4 V to 16 V
Operating Temperature0?C ~ 70?C
Operating temperature0...70?C
Output Type-
PackageTube
Package / Case8-DIP (0.300", 7.62mm)
Package/CasePDIP-8
PackagingTube
Part StatusActive
PD Max. (W)725m
Pinout Equivalence Numb.8-528
ProductOperational Amplifiers
Product CategoryOperational Amplifiers .
SeriesTLC251, LinCMOS?
ShutdownNo Shutdown
Single Supply Voltage1.4 V to 16 V
SKU76700
Slew Rate5.3V/?s
SR - Slew Rate3.6 V/us
Supplier Device Package8-PDIP
Supply Current per Chan.2 mA
Supply Voltage - Max16 V
Supply Voltage - Min1.4 V
Surface Mounted Yes/NoNO
TechnologyCMOS
Temp Coef. of VIO5.0u
TypeIntegrated Circuit
Type of integrated circ.operational amplifier
Unit Weight440.400 mg
Unity Gain BW (Hz)100k-
V(io) Max. (V)10m
Voltage - Input Offset1.1 mV
Voltage - Supply Span (.16 V
Voltage - Supply Span (.1.4 V
Voltage supply range? 700mV DC...8V DC/
Vos - Input Offset Volt.10 mV

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
ArrowTLC251CP1.2631277Texas Instruments1.263 @ 1
HotendaH25149172.88134Texas Instruments2.88 @ 1
Mouser595-TLC251CP3.271225Texas Instruments3.27 @ 1
TMETLC251CP3.71198TEXAS INSTRUMENTS3.7 @ 1
Digi-Key134469043.731000182Texas Instruments3.73 @ 1
thumbzoomswatee.comTLC251CP5.62134Texas Instruments5.62 @ 1
Little DiodeTLC251CP5.933128517Texas Instruments5.9331285 @ 1
