- mpnEU05
- brandname: US Motors
- manufacturername: US Motors

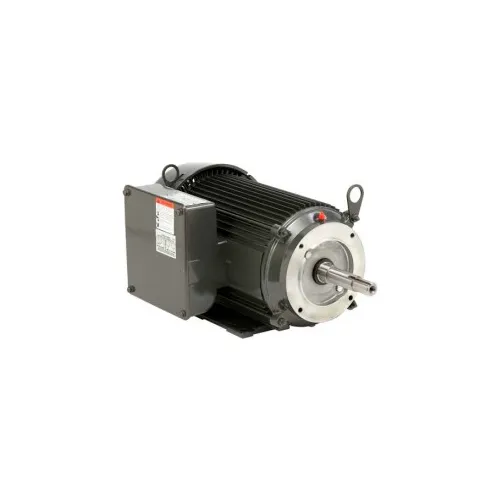

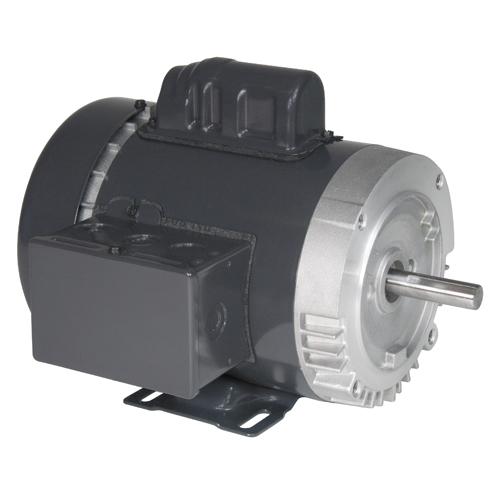

U.S. Motors US Motors Pump, 3/4 HP, 1-Phase, 3450 RPM Motor, EU05
- Brand: U.S. Motors
- PartNumber: EU05
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 10.0/5.2-5.0 |
| Bearings | Ball |
| Bolt Circle Dia. | 5 7/8 in |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | C-Face |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 45.65 |
| Family Series | US Motors Motors |
| FL Amps | 10.0/5.2-5.0 |
| Frame | 56J |
| Frequency | 60 Hz |
| Gross Weight | 41.5 lbs |
| Height | 8 5/8 in |
| Hertz | 50, 60 |
| Horsepower | 3/4 hp |
| HP | 3/4, 0.75 |
| Hz | 50/60, 60/50 |
| Ins. Class | B |
| Insulation Class | B |
| Item | Motor |
| Item Number | EU05 |
| Kilowatts | 0.6 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | C063HMS5045013J |
| Manufacturer Part Number | EU05 |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | C063HMS5045013J |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Mounting Type | J-Face/Rem Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW |
| Motor Sub Application | Commercial Pump |
| Motor Thermal Protection | Auto |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | J-Face, Removable Base |
| Nameplate RPM | 3,450/2,850 |
| NEMA Frame | 56J |
| Net Weight | 0 lbs |
| Nominal Efficiency | 79.4 % |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overload Protection | Automatic |
| Part Number | EU05 |
| Phase | 1, Single |
| Product Type | Pump, Capacitor Start |
| Rotation | CCW Shaft End |
| RPM | 3450, 3,450 RPM |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/2 in |
| Ship Weight | 42 lbs. |
| Speed (RPM) | 3450 |
| Standards | CE, CSA Certified, ISO9. |
| Thermal Protection | Automatic |
| Voltage | 110-120V, 208V, 220V, 2. |
| Voltage (AC) | 110 VAC, 115 VAC, 208-2. |
| Volts | 115, 208, 230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0920882 | 325.99 | 1 | In Stock | | U.S. Motors | 41.5 | 325.99 @ 1 |
 | bscsource.com | EU05 | 347.29 | 1 | In Stock | | US Motors | | 347.29 @ 1 |
 | Guardian | 53655783 | 372.76 | 1 | In Stock | | US Motors | | 372.76 @ 1 |
 | Global Industrial | WBB466540 | 400.95 | 1 | In Stock | | US Motors | | 400.95 @ 1 |
 | emotorpro.com | EU05 | 435.39 | 1 | In Stock | | U.S. Motors | 42.0 | 435.39 @ 1 |
 | motorsandcontrol.com | EU05 | 443.9 | 1 | In Stock | | US Motors (Nidec) | 45.65 | 443.9 @ 1 |
 | National Supply Network | B466540 | 451.04 | 1 | In Stock | | US MOTORS | | 451.04 @ 1 |
 | Galco | EU05-USM | 454.48 | 1 | In Stock | | US Motors | 41.5 | 454.48 @ 1 |
| motionindustries.com | 04377245 | 581.7 | 1 | In Stock | | US Motors (Nidec) | | 581.7 @ 1 |
