- mpnC14756
- brandname: CLEVELAND
- manufacturername: CLEVELAND

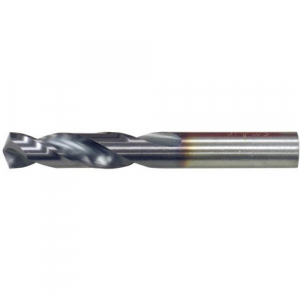

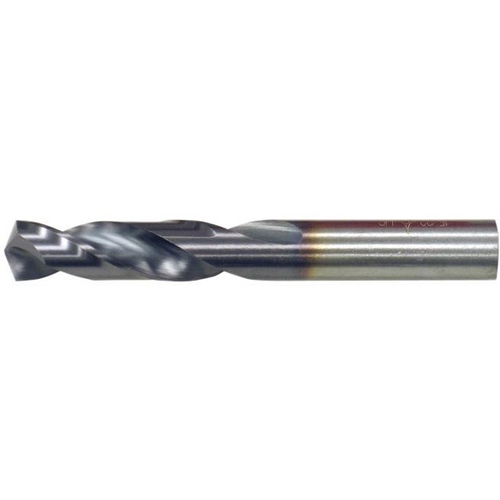

Cleveland 2133 Style Cobalt Steel Short Length Drill Bit, TiCN Coated, Round Shank, 135 Degree Split Point, 4 mm (Pack of 12)
- Brand: Cleveland
- PartNumber: C14756
- Model: C14756
- Size: 4 mm
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Application | For Drilling Carbon Ste. |
| Bit Dia. | 4.00mm |
| Construction | Heavy-Duty |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1575, 0.1575" / 4.00mm |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 4.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | TiCN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 4.00 mm |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0326 mm |
| Drilling Length | 22.00mm |
| Finish - Machining | TiCN |
| Flute Length | 22.00 mm |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Hand of Spiral Cut | RHS / RHC |
| Helix Angle | 28 Degrees |
| Item | Screw Machine Drill Bit |
| Length of Flute | 0.8661" / 22.00mm |
| List Number | 2133-TC |
| List Style | 2133-TC |
| Material | HSS-CO 8% (M42), Cobalt |
| Material - Machining | Cobalt |
| Material Grade - Machin. | M42 |
| Maximum Drilling Depth | 22.00 mm |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Number of Pieces | 0 |
| Overall Length | 2.1654" / 55.00mm, 55.0. |
| Point | 135? Split |
| Point Type | Split |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, M, N, P |
| Secondary Material Appl. | Nickel, Titanium |
| Secondary Material Appl. | S |
| Series | 2133-TC |
| Shank | Straight |
| Shank Dia. | 4.00 mm |
| Shank Length | 33.00 mm |
| Shank Shape | Straight |
| Shank Size | 4.00mm, 0.1575" / 4.00mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sizes Included | 4.00mm |
| Spiral Direction | Right Hand |
| Standards | DIN 1897 |
| Style | 2133-TC |
| Surface Condition | TiCN |
| Tool Size | 4mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6111060 | 5.16 | 7 | 12 | | Cleveland | | 5.16 @ 12 |
 | Megadepot | C14756 | 6.05 | 1 | 12 | | Cleveland | | 6.05 @ 12 |
 | usmegastore.com | C14756 | 6.19 | 1 | 12 | | Cleveland | | 6.19 @ 12 |
 | Zoro | G3002531 | 6.19 | 12 | 12 | 8 | Cleveland | 0.01 | 6.19 @ 12 |
 | sustainablesupply.com | C2974762 | 6.37 | 1 | 12 | | Cleveland | 0.01 | 6.37 @ 12 |
