- mpnC15034
- brandname: CLEVELAND
- manufacturername: CLEVELAND

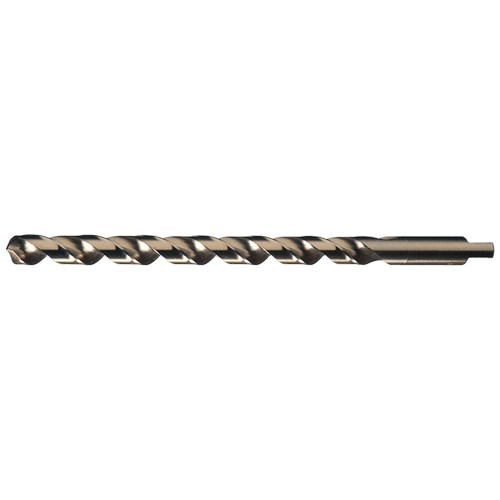

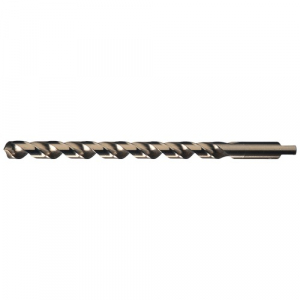

Cleveland 2513 Cobalt Steel Long Length Drill Bit, Gold Oxide Finish, Round Shank with Tang, 118 Degree Notched Point, 7/16" Dia. x 7 1/4" Lg (Pack of 1)
- Brand: Cleveland
- PartNumber: C15034
- Size: 7/16"
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Applicable Materials | Carbon Steel, Cast Iron. |
| Application | For Stainless Steel, To. |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Cutting Depth | 3-7/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.4375 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Individual, Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 118 Degrees, 118 Degre. |
| Drill Bit Point Type | Notched Point |
| Drill Bit Size | 7/16 in |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Taper Length |
| Drill Point Length | 0.1314 in |
| Drill Size - Decimal In. | 0.4375 in |
| Drill Size - Fraction | 7/16 in |
| Finish | Straw/Gold Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 5 11/16 in, 3-7/16 in |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | 21 Degrees /34 Degrees |
| Item | Taper Length Drill Bit |
| List Number | 2513 |
| Material | M42 HSS-Co 8, HSS-CO 8%. |
| Material - Machining | Cobalt |
| Material Grade - Machin. | M42 |
| Maximum Drilling Depth | 5 11/16 in |
| Measurement System | Fractional Inch |
| Number of Flutes | 2 |
| Overall Length | 7 1/4 in, 7-1/4 in |
| Point Angle | 118 deg |
| Point Type | Notched |
| Primary Material Applic. | Cast Iron, Stainless St. |
| Primary Material Applic. | K, M, P |
| Secondary Material Appl. | Cast Iron, Carbon Steel. |
| Secondary Material Appl. | K, M, P |
| Series | 2513 |
| Shank Dia. | 7/16 in |
| Shank Length | 1 9/16 in |
| Shank Size | 7/16 in |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sizes Included | 7/16" |
| Spiral Direction | Right Hand |
| Standards | AIS |
| Style | 2513 |
| Surface Condition | Straw |
| Tool Size | 7/16" |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6111162 | 32.69 | 2 | In Stock | | Cleveland | | 32.69 @ 2 |
 | Zoro | G2998797 | 36.11 | 1 | In Stock | 26 | Cleveland | 0.22 | 36.11 @ 1 |
 | Megadepot | C15034 | 40.12 | 1 | In Stock | | Cleveland | | 40.12 @ 1 |
 | usmegastore.com | C15034 | 40.38 | 1 | In Stock | | Cleveland | | 40.38 @ 1 |
 | sustainablesupply.com | C2769997 | 47.79 | 1 | In Stock | | Cleveland | 0.22 | 47.79 @ 1 |
| Grainger | 439R54 | 55.44 | 1 | In Stock | | CLEVELAND | | 55.44 @ 1 |
