FAG NU211-E-TVP2

B019FF9V6E

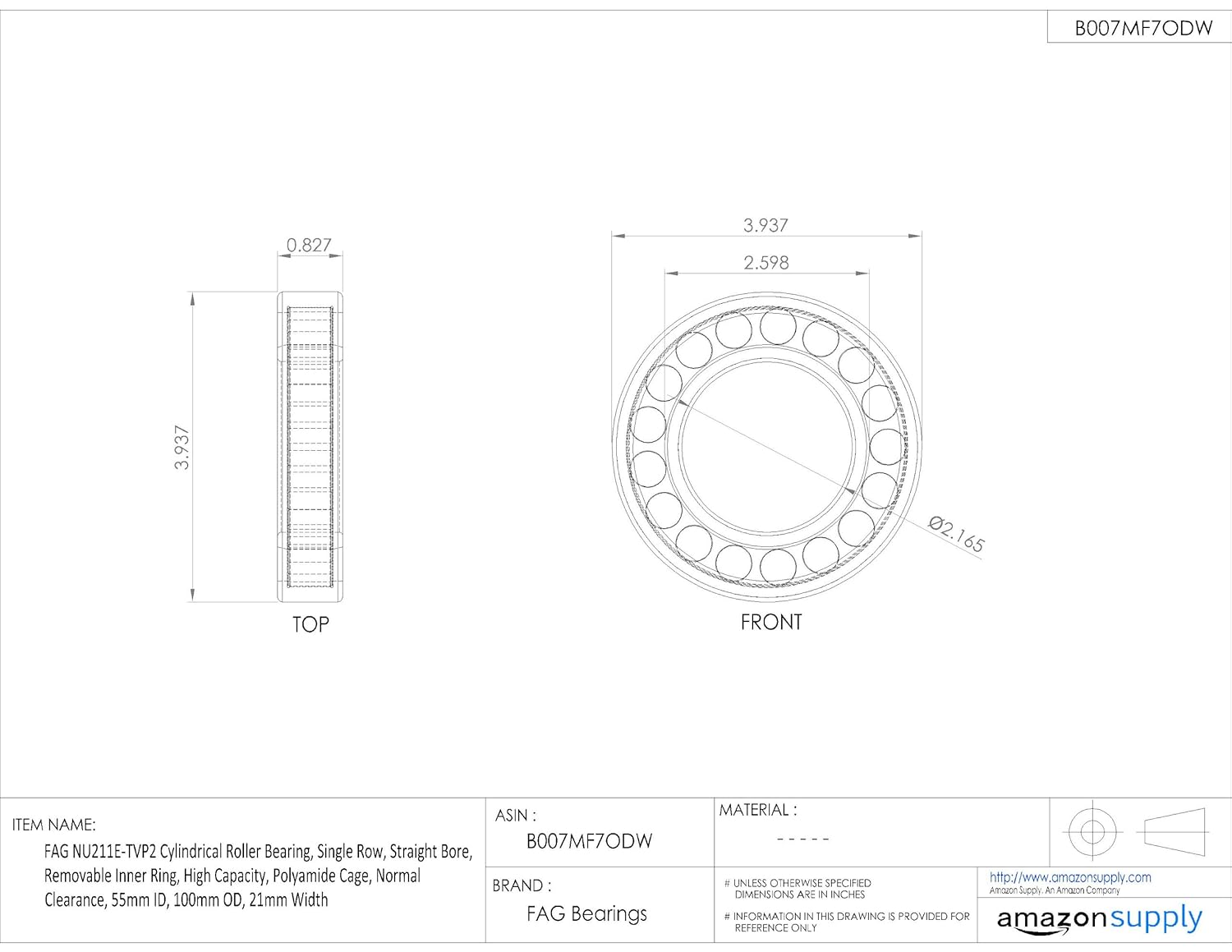

FAG BEARING NU211-E-TVP2 Cylindrical Roller Bearing, 21MM Width, 100MM OD, 55MM BORE, 8700RPM MAX

FAG BEARING NU211-E-TVP2 Cylindrical Roller Bearing, 21MM Width, 100MM OD, 55MM BORE, 8700RPM MAXzoom

Attributes

Key Value
Bore2.165 Inch | 55 Millime.
Bore Dia.55 mm
Bore Diameter55 mm
Bore Diameter Tolerance+0/-0.012 mm
Bore ProfileStraight
Cage MaterialPolymer, PA66
Category - BDICylindrical Roller Bear.
Dynamic Load Capacity (.99,000 lb
Dynamic Radial Load Cap.99,000 N
EAN4012801022781
Harmonized Tariff Code8482.50.00.00
Housing Fillet Radius1.5 mm
Inch - MetricMetric
Internal ClearanceC0-Medium
ItemCylindrical Roller Bear.
Long Description55MM Bore; Straight Bor.
LubricationOil
Manufacturer Item NumberNU211E.TVP2
Manufacturer NameSCHAEFFLER GROUP
Minimum Buy QuantityN/A
NounBearing
Number of RowsOne
Number of Rows of Rolle.Single Row
Other FeaturesHigh Capacity | Plain I.
Outer Ring Inside Diame.86.6 mm
Outside Dia.100 mm
Outside Diameter3.937 Inch | 100 Millim.
Outside Diameter Tolera.+0/-0.013 mm
Overall Width21 mm
Precision ClassRBEC 1 | ISO P0
Product Group - BDIB04144
ProfileComplete with Outer and.
RelubricatableYes
RetainerYes
Retaining Ring DiameterNot Applicable
Retaining Ring ThicknessNot Applicable
Roller MaterialSteel
Rolling ElementCylindrical Roller Bear.
Seal TypeNot Applicable
SeparableInner Ring - Both Sides
Shaft Fillet Radius1.1 mm
Snap RingNo
Static Load Capacity (L.95,000 lb
Temp. Range (F)-22 Degrees to 302 Deg.
TypeCage Guided
UNSPSC31171547
Weight / Kilogram0.664
Weight / LBS1.464
Width0.827 Inch | 21 Millime.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAmazonSCB007MF7ODW59.891In StockFAG Bearings59.89 @ 1
thumbzoomZoroG7197461104.991In Stock10Fag Bearings1.46104.99 @ 1
thumbzoomBDI Express1411341116.1676840114FAG BEARING1.4608116.16768401 @ 1
thumbzoomRadwellNU211-E-TVP2120.014FAG120.0 @ 1
thumbzoomsustainablesupply.comC1648707155.541In StockFag Bearings1.46155.54 @ 1
