Marathon Industries 326TTFS6076

mpn326TTFS6076
brandname: Marathon Motors
manufacturername: Marathon Motors

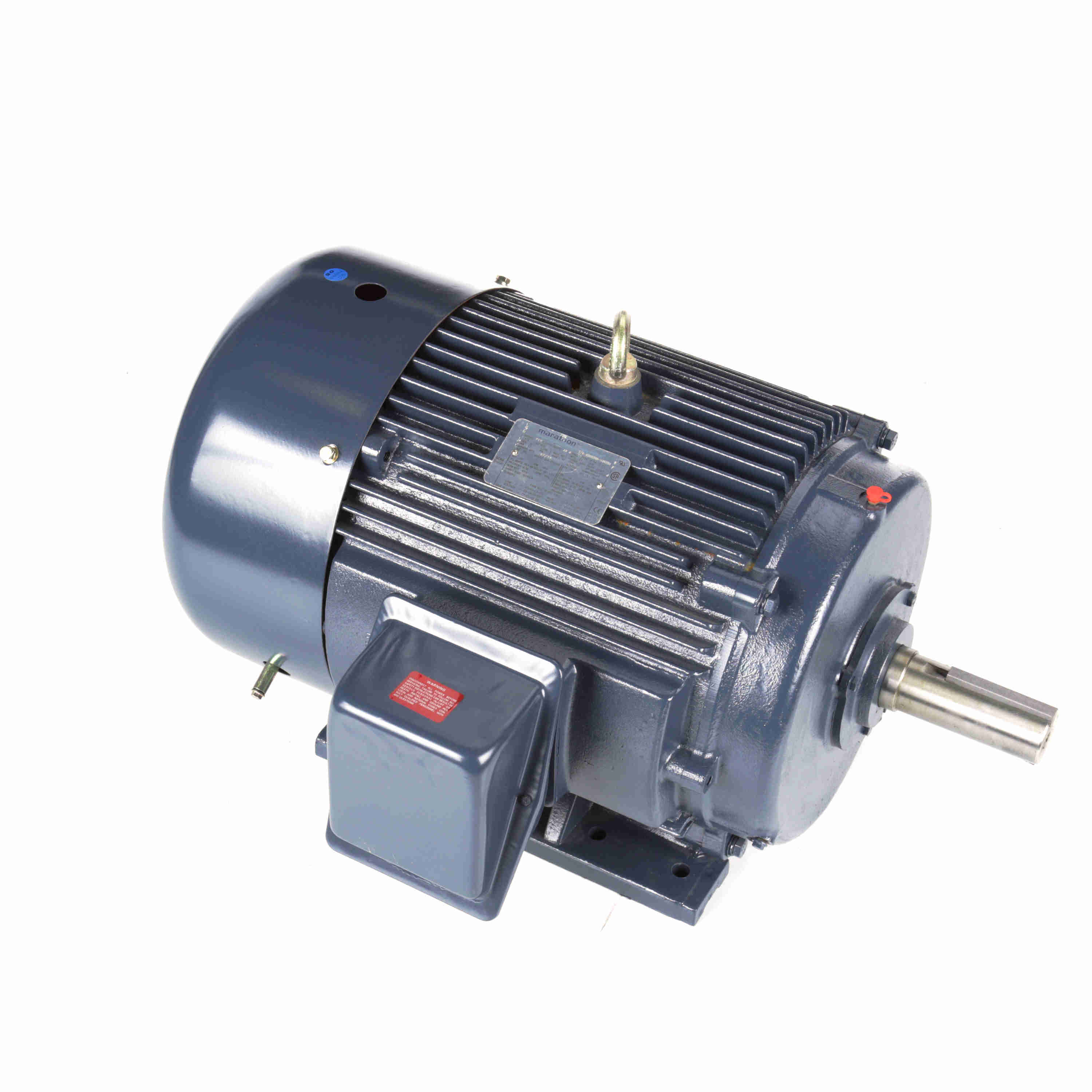

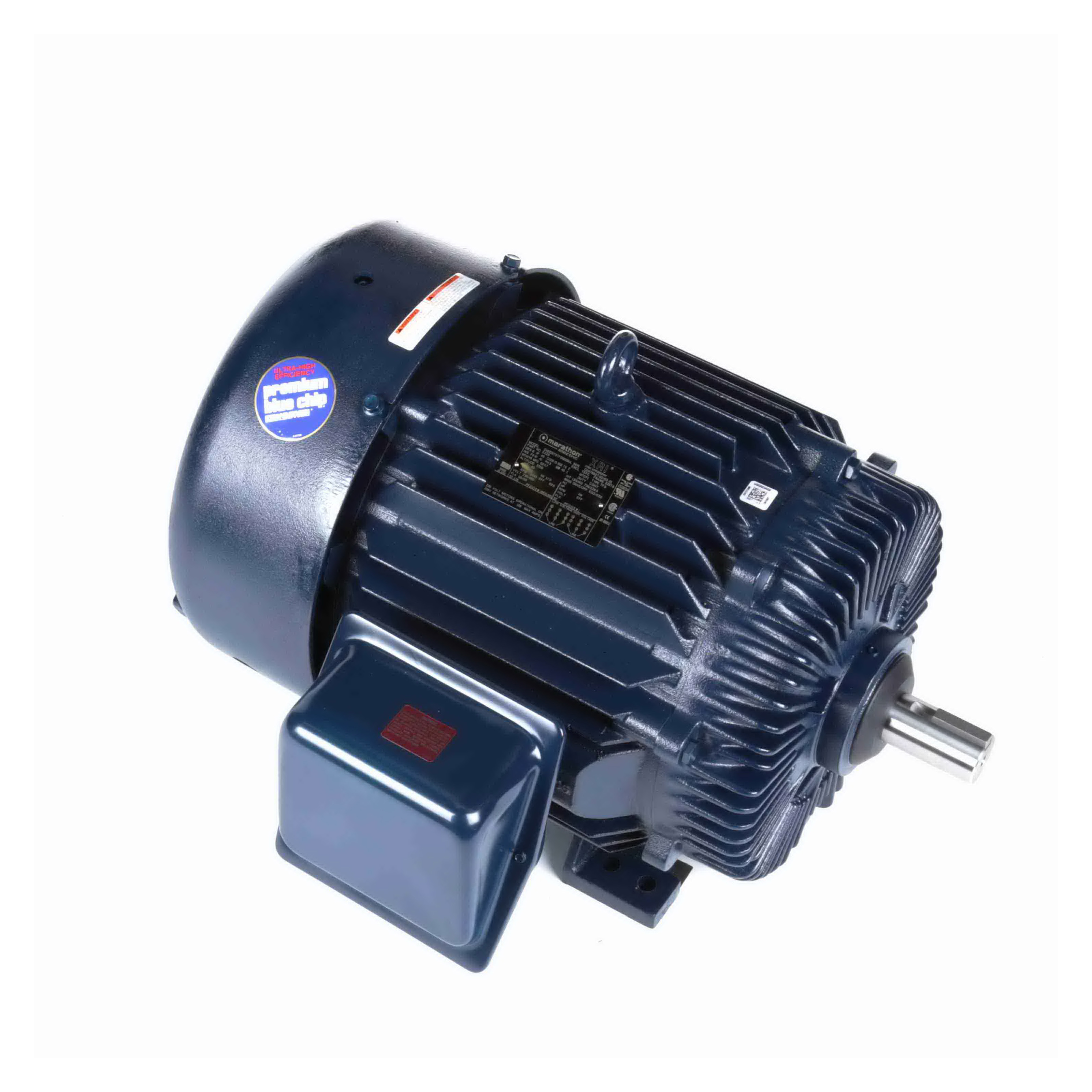

Motor 3-Ph 30 HP 1180 RPM 230/460V

Motor 3-Ph 30 HP 1180 RPM 230/460V

zoom

Brand: Marathon Industries
PartNumber: 326TTFS6076
Manufacturer: MARATHON MOTORS
Label: MARATHON MOTORS

Attributes

Key	Value
CC Number	CC003A
Classification	NEMA Premium XRI Effici.
Country of Origin (subj.	United States
Duty	Continuous
Enclosure	TEFC
Frame	326T
Frame Material	Cast Iron
Frame Remarks	Rigid
Full Load Amps	77.0/38.5
HP	30
Hz	60
Ins. Class	F
Inverter Rated	Yes
Item	General Purpose Motor
Item Condition	Factory New
Length Less Shaft	24-7/8"
Manufacturer	Marathon Electric
Manufacturers Warranty .	1 yr.
Max. Ambient Temp.	40 Degrees C
Motor Application	General Application
Motor Bearings	Ball
Motor Design	3-Phase
Motor Efficiency Group	NEMA Premium Efficient
Motor Enclosure Design	Totally Enclosed Fan-Co.
Motor Frame Material	Cast Iron
Motor Mounting Position	Horizontal
Motor Mounting Type	Rigid Base
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
Motor Thermal Protection	None
Nameplate RPM	1180
No. of Speeds	1
Nominal Efficiency	95.8%
Overall Length	30-3/8"
Phase	3
RPM	1200
RPM Group	1101-1200
RPM Range	1101-1200
Shaft Dia.	2-1/8"
Shaft Length	5-1/4"
Standards	UL (E49747), CSA (LR202.
Voltage	230/460
Voltage Compatibility	460, 230/460, 220-230/4.
Volts	230/460

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G9815337	4257.64	1	In Stock	25	Marathon Motors		4257.64 @ 1
	Purvis	E240MTH	4760.2	1	In Stock		Marathon		4760.2 @ 1
	Dealers Electric	326TTFS6076	5000.78	1	In Stock		Marathon Electric	691.0	5000.78 @ 1
	Raptor Supplies	AD6EQE	5159.3077575	1	In Stock		MARATHON MOTORS		5159.3077575 @ 1
