Martin Sprocket 100E23H

B00BC9850K

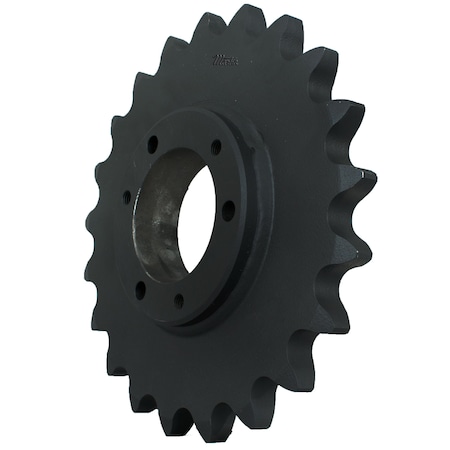

Martin Sprocket 100E23H SPK ROLLER QD SABER

Martin Sprocket 100E23H SPK ROLLER QD SABERzoom

Attributes

Key Value
Bore TypeBushed
bore type:Bushed
bushing bore range:7/8 to 3-1/2 in
Bushing CodeE
bushing size:E
bushing type:QD
Caliper Diameter8.4085
caliper diameter:8.4085 in
chain / sprocket type:Standard Roller Chain
Chain Number100
chain number & pitch:100 / 1-1/4 in
Chain Roller Dia.0.75
chain roller diameter:0.7500 in
chain roller width:0.7500 in
Hardened TeethYes
hardened teeth:Hardened Teeth
Hub Dia. (In.)6.25
hub diameter:6 in
hub outside diameter:6.2500 in
hub projection:0.9375 in
Length through Bore (In.1.625
length through bore:1.6250 in
manufacturer upc number:697950042411
MaterialSteel
material:Steel
mounting screw size:1/2-13 NC
number of hubs:1
number of mounting scre.3 at 120
Number of Rows1
number of strands acros.1
Number of Teeth23
Number Of Teeth23
number of teeth:23
Outside Dia9.844"
Outside Dia.0.692
Outside Dia. (In.)9.844
outside diameter:9.8440 in
overall width:2-15/16 in
Pitch1.250 in., 1.25
Pitch Dia.9.1799
pitch diameter:9.5766 in
pitch type:Single
Roller Width0.75
Set Screw Size1/2-13 NC
Setscrew Location(3) at 120 degrees
Sprocket Hub TypeQD
storage dimension heigh.1.6250 in
storage dimension lengt.9.8440 in
storage dimension width:9.8440 in
Storage Height1.625
Storage Length9.844
Storage Width9.844
surface treatment:Protective Coating
tooth thickness:0.6920 in
tooth width:0.6920 in
TypeStandard Roller Chain
Weight14.4
weight:14.4 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.com100E23H205.161In StockMartin1.0205.16 @ 1
thumbzoomMRO Supply258769237.131In StockMartin Sprocket237.13 @ 1
thumbzoommotionindustries.com00175987249.991In StockMartin249.99 @ 1
thumbzoomPurvis100E23H251.041In StockMartin251.04 @ 1
thumbzoomapexindustrialautomation.com100E23H259.9113Martin Sprocket259.91 @ 1
thumbzoomZoroG2449164322.9911Martin Sprocket & Gear14.4322.99 @ 1
