Molex 39310047

mpn39310047
brandname: Molex
manufacturername: Molex

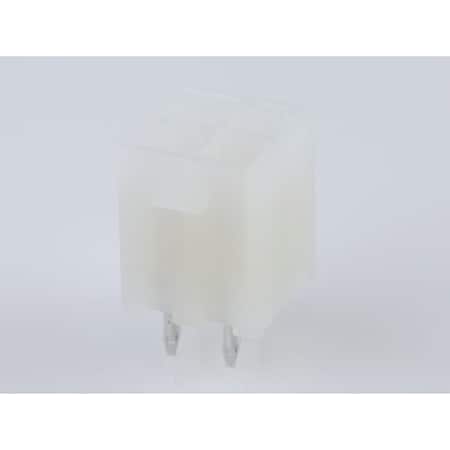

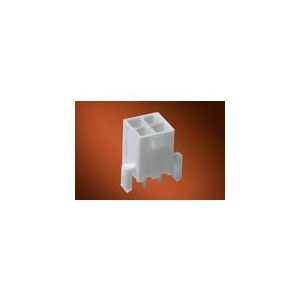

Molex / Waldom 39-31-0047 Connector Power

Molex / Waldom 39-31-0047 Connector Power

zoom

Brand: Molex
PartNumber: 39310047
Model: 39310047
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Applications	General Purpose, Indust.
Base Product Number	003931
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Header
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	30.0?in (0.76?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Mating	-
Contact Length - Post	0.138" (3.50mm)
Contact Material	Brass
Contact Plating Thickne.	0.762 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	9 A
Current Rating (Amps)	-
Description	CONN HEADER VERT 4POS 4.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM16949-ND
Fastening Type	Locking Ramp
Features	-
Flammability Rating	UL 94V-2
Hole Center to Center	4.2 mm
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.504" (12.80mm)
Insulation Material	Polyamide (PA66), Nylon.
Manufacturer	Molex
Manufacturer Product Nu.	0039310047
Manufacturer Standard L.	19 Weeks
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-2
Max. Temp.	260?C
Max. Voltage	600V
Mfr	Molex
Mounting Type	Through Hole
Number of Contacts	4
Number of Positions	4
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Overall Contact Length	-
Package	Bulk
Pitch - Mating	0.165" (4.20mm)
Product Status	Active
Row Spacing - Mating	0.165" (4.20mm)
Series	Mini-Fit Jr 5566
Shrouding	Shrouded - 4 Wall
Standards	CSA Certified; UL E29179
Style	Board to Cable/Wire
Terminal Finish	Matte Tin Plated
Terminal Type	Through Hole
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Newark	01AH1133	0.494	1	385		MOLEX		0.494 @ 1
	Waldom	MOLEX 39-31-0047	0.78	70	4462		MOLEX		0.78 @ 70
	jensentools.com	10188584	1.04	1	4462		Molex		1.04 @ 1
	Digi-Key	3160228	1.86	1	5696		Molex		1.86 @ 1
	Radwell	39-31-0047	2.5	5600	40		MOLEX		2.5 @ 5600
	Zoro	G005964410	7224.0	1	40		Molex		7224.0 @ 1
