- mpnPNF18-6RN-M
- brandname: Panduit
- manufacturername: Panduit

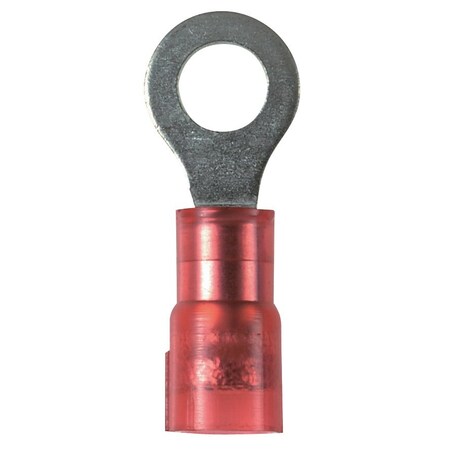

Panduit PNF18-6RN-M 22/18#6 Ring Terminal Nylon Insulated (Package of 100)
- Brand: Panduit
- PartNumber: PNF18-6RN-M
- Color: Red
- PackageQuantity: 100
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 22 - 18 |
| Approvals | CSA, UL |
| Base Product Number | PNF18 |
| Category | Connectors, Interconnec. |
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin (subj. | Mexico |
| Description | CONN RING CIRC 18-22AWG. |
| Detailed Description | Ring Terminal Connector. |
| Digi-Key Part Number | 298-20227-ND |
| Family Series | Panduit Terminals, Pan-. |
| Features | Serrated Termination |
| Gross Weight | 0 lbs |
| Insulated | Insulated |
| Insulation | Insulated |
| Insulation Diameter | 0.080" ~ 0.136" (2.03mm. |
| Insulation Material | Nylon |
| Item Number | PNF18-6RN-M |
| Length - Overall | 0.760" (19.30mm) |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | PNF18-6RN-M |
| Manufacturer Product Nu. | PNF18-6RN-M |
| Manufacturer Standard L. | 3 Weeks |
| Material | Copper, Nylon |
| Material - Insulation | Polyamide (PA), Nylon |
| Max Temp | 221 ?F |
| Mfr | Panduit Corp |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Package | Bulk |
| Package Quantity | 1,000 |
| Plating Material | Tin |
| Product Series | Pan-Term Terminals |
| Product Status | Active |
| RoHS Compliant | Yes |
| Series | Pan-Term? |
| Stud Size | #6 |
| Stud/Tab Size | 6 Stud |
| Terminal Material | Copper |
| Terminal Type | Ring, Circular |
| Termination | Crimp |
| Thickness | 0.032" (0.81mm) |
| Volts | 600 V |
| Width - Outer Edges | 0.220" (5.59mm) |
| Wire Gauge | 18-22 AWG |
| Wire Size | 22-18 AWG |
| Wire Size (AWG) | 18 AWG, 19 AWG, 20 AWG,. |
| Wire Strip Length | 0.219 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | PNF18-6RN-M | 0.324 | 1 | 781 | | PANDUIT | | 0.324 @ 100 |
| Future Electronics | 7027929 | 0.468 | 1000 | 100 | | Panduit | | 0.468 @ 1000 |
 | Galco | PNF18-6RN-M-PNDT | 0.47 | 1000 | 100 | | Panduit | | 0.47 @ 1000 |
 | Platt.com | 0709675 | 0.55 | 1 | 100 | | Panduit | | 0.55 @ 100 |
 | Newark | 48AC9727 | 0.556 | 1000 | 100 | | PANDUIT | | 0.556 @ 1000 |
| Airline Hydraulics | PANDUIT PNF18-6RN-M | 0.56 | 1 | 100 | | Panduit Corp | | 0.56 @ 100 |
 | Digi-Key | 451892 | 0.6283 | 1 | 2400 | | Panduit Corp | | 0.6283 @ 100 |
| us.rs-online.com | 71947910 | 0.70077 | 3 | 1000 | | Panduit | | 0.70077 @ 100 |
 | alldataresource.com | PNF18-6RN-M | 447.33 | 1 | 100 | | Panduit | | 447.33 @ 100 |
 | Carlton Bates Company | 07498381061 | 460.0 | 1 | 100 | | PANDUIT | | 460.0 @ 100 |
 | gordonelectricsupply.com | PNF18-6RN-M | 492.0 | 1 | 100 | 12 | PANDUIT | | 492.0 @ 100 |
 | Zoro | G2788785 | 525.32 | 1 | 100 | 106 | Panduit | | 525.32 @ 100 |
