Sealmaster SFT-14

B006MICBV0

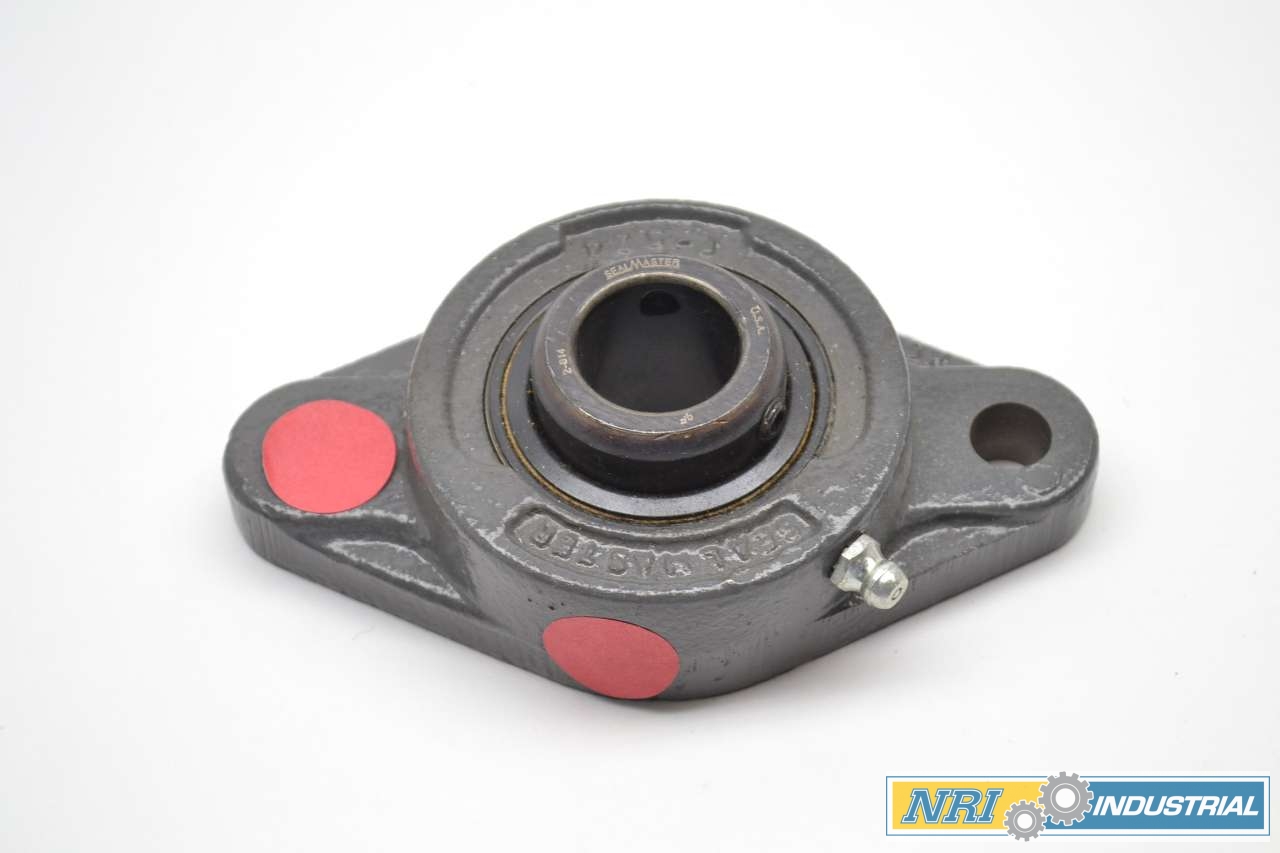

Sealmaster SFT-14 Standard Duty Flange Cartridge Unit, 2 Bolt, Regreasable, Felt Seals, Setscrew Locking Collar, Cast Iron Housing, 7/8" Bore, 4-7/8" Overall Length, 3-57/64" Bolt Hole Spacing Width, 17/32" Flange Height, ?2 Degrees Misalignment Angle

Sealmaster SFT-14 Standard Duty Flange Cartridge Unit, 2 Bolt, Regreasable, Felt Seals, Setscrew Locking Collar, Cast Iron Housing, 7/8" Bore, 4-7/8" Overall Length, 3-57/64" Bolt Hole Spacing Width, 17/32" Flange Height, ?2 Degrees Misalignment Anglezoom

Attributes

Key Value
Back Side to Center Wid.0.625 in
Bearing Insert TypeBall
Bearing TypeTwo Bolt Flange
Bolt Size7/16 in
Bolt Spacing3.891 Inch | 98.83 Mill.
Bore0.875 Inch | 22.225 Mil.
Bore Dia.7/8 in
Bore Diameter7/8 in
BrandSEALMASTER
Cartridge Pilot Depth0 Inch | 0 Millimeter
Cartridge Pilot Diameter0 Inch | 0 Millimeter
CategoryFlange Block Bearings
Dimension A4 7/8 in
Dimension B3 57/64 in
Dimension C17/32 in
Dimension D1 1/32 in
Dimension E1 7/16 in
Dimension F15/32 in
Dimension G17/32 in
Dimension H2 3/8 in
Dimension J2 3/4 in
Dimension L1 3/8 in
Dimension M13/16 in
Dimension N9/16 in
Duty SeriesStandard
EAN0662461004265
Estimated Weight1.55
Expansion / Non-expansi.Non-expansion
Family SeriesSealmaster Bearings, SF.
Global Part Number GPN16809
Gross Weight0 lbs
Harmonized Tariff Code8483.20.40.40
Housing Configuration1 Piece Solid
Housing MaterialCast Iron
Housing Style2 Bolt Flange Block
Inch - MetricInch
Insert Material52100 Steel/Black Oxide.
Insert Part Number2-014
Item NumberSFT-14
Length Thru Bore1.375 Inch | 34.925 Mil.
Locking DeviceSetscrew, Set Screw
ManufacturerSEALMASTER
Manufacturer NameREGAL BELOIT
Manufacturer Part NumberSFT-14
Mount Hole Center-to-Ce.3 57/64 in
Mount Hole Center-to-Ce.3 57/64 in
Mount Hole Size15/32 in
Mounting Bolt Size3/8 in
Mounting Bolts15/32 Inch
Mounting MethodSet Screw
Net Weight0.0969 lbs
Nominal Bolt Circle Dia.3.9 Inch | 99 Millimeter
Number of Mounting Holes2
Other FeaturesSingle Row | Standard D.
Overall Height2 3/4 in
Overall Length4 7/8 in
Overall Width1 7/16 in
Part NumberSFT-14
Pilot ConfigurationNo Pilot
price$ 83.43 / each
Product SeriesSFT
RelubricatableYes
Seal TypeStandard Felt Seal
SealsFelt Labyrinth
Shaft Diameter (in)0.875 ", 0.875
Shaft Range0.5-0.99
titleSFT-14
TypeTwo Bolt Flange
UNSPSC31171501
UPC Code662461004265
Weight / kgm0.73
Weight / LBS1.6

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialB44673939.811In StockSEALMASTER39.81 @ 1
thumbzoomLily BearingSFT-1470.921In StockSEALMASTER1.60670.92 @ 1
thumbzoomRadwellSFT-1496.014SEALMASTER3.096.0 @ 1
thumbzoomMRO Supply421692104.881In StockSealMaster104.88 @ 1
thumbzoomGalcoSFT-14-SMST108.571In StockSealmaster0.0969108.57 @ 1
thumbzoomapexindustrialautomation.comSFT-14112.371694Sealmaster112.37 @ 1
thumbzoommotorsandcontrol.comSFT-14112.371In StockSealmaster1.55112.37 @ 1
us.rs-online.com72115599120.651In StockSealmaster120.65 @ 1
thumbzoomPurvisSFT-14121.161In StockSealmaster121.16 @ 1
thumbzoomZoroG8216162150.9911Sealmaster1.5150.99 @ 1
