Sealmaster SFT-15

B006MICCA0

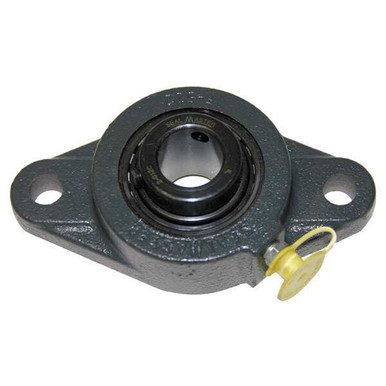

Sealmaster SFT-15 Standard Duty Flange Cartridge Unit, 2 Bolt, Regreasable, Felt Seals, Setscrew Locking Collar, Cast Iron Housing, 15/16" Bore, 4-7/8" Overall Length, 3-57/64" Bolt Hole Spacing Width, 17/32" Flange Height, ?2 Degrees Misalignment Angle

Sealmaster SFT-15 Standard Duty Flange Cartridge Unit, 2 Bolt, Regreasable, Felt Seals, Setscrew Locking Collar, Cast Iron Housing, 15/16" Bore, 4-7/8" Overall Length, 3-57/64" Bolt Hole Spacing Width, 17/32" Flange Height, ?2 Degrees Misalignment Anglezoom

Attributes

Key Value
Back Side to Center Wid.0.625 in
Bearing Insert TypeBall
Bearing TypeTwo Bolt Flange
Bolt Size7/16 in
Bore Dia.15/16 in
Bore Diameter15/16 in
BrandSealmaster
Current Stock35
Dimension A4 7/8 in
Dimension B3 57/64 in
Dimension C17/32 in
Dimension D1 1/32 in
Dimension E1 7/16 in
Dimension F15/32 in
Dimension G1 7/16 in
Dimension H2 3/8 in
Dimension J2 3/4 in
Dimension L1 3/8 in
Dimension M13/16 in
Dimension N9/16 in
Duty SeriesStandard
Estimated Weight1.53
Family SeriesSealmaster Bearings, SF.
Gross Weight0 lbs
Housing MaterialCast Iron
Insert Material52100 Steel/Black Oxide.
International ShippingNo
Item NumberSFT-15
Locking DeviceSetscrew, Set Screw
ManufacturerSealmaster
Manufacturer Part NumberSFT-15
Mount Hole Center-to-Ce.3 57/64 in
Mount Hole Center-to-Ce.3 57/64 in
Mount Hole Size15/32 in
Mounting Bolt Size3/8 in
MpnSFT-15
Net Weight0.0956 lbs
Overall Height2 3/4 in
Overall Length4 7/8 in
Overall Width1 7/16 in
Part NumberSFT-15
Product SeriesSFT
Seal TypeStandard Felt Seal
Shaft Diameter (in)0.9375, 0.9375 "
Shaft Range0.5-0.99
SKUZO-G6100342
SubCategoryPower Transmission
TypeTwo Bolt Flange
UPC Code662461004272

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRadwellSFT-1561.01In StockSEALMASTER1.4561.0 @ 1
thumbzoomMRO Supply2255855100.811In StockSealMaster100.81 @ 1
thumbzoomGalcoSFT-15-SMST104.361In StockSealmaster0.0956104.36 @ 1
thumbzoomapexindustrialautomation.comSFT-15108.01129Sealmaster108.01 @ 1
thumbzoommotorsandcontrol.comSFT-15108.011In StockSealmaster1.53108.01 @ 1
us.rs-online.com72115600115.931In StockSealmaster115.93 @ 1
thumbzoomPurvisSFT15123.721In StockSealmaster123.72 @ 1
thumbzoomZoroG6100342128.99140Sealmaster1.55128.99 @ 1
motionindustries.com00564337156.21In StockSealmaster156.2 @ 1
thumbzoomsimsupply.comZO-G6100342191.8135Sealmaster191.8 @ 1
