Schneider Electric HDA261002

B00CONGTJW

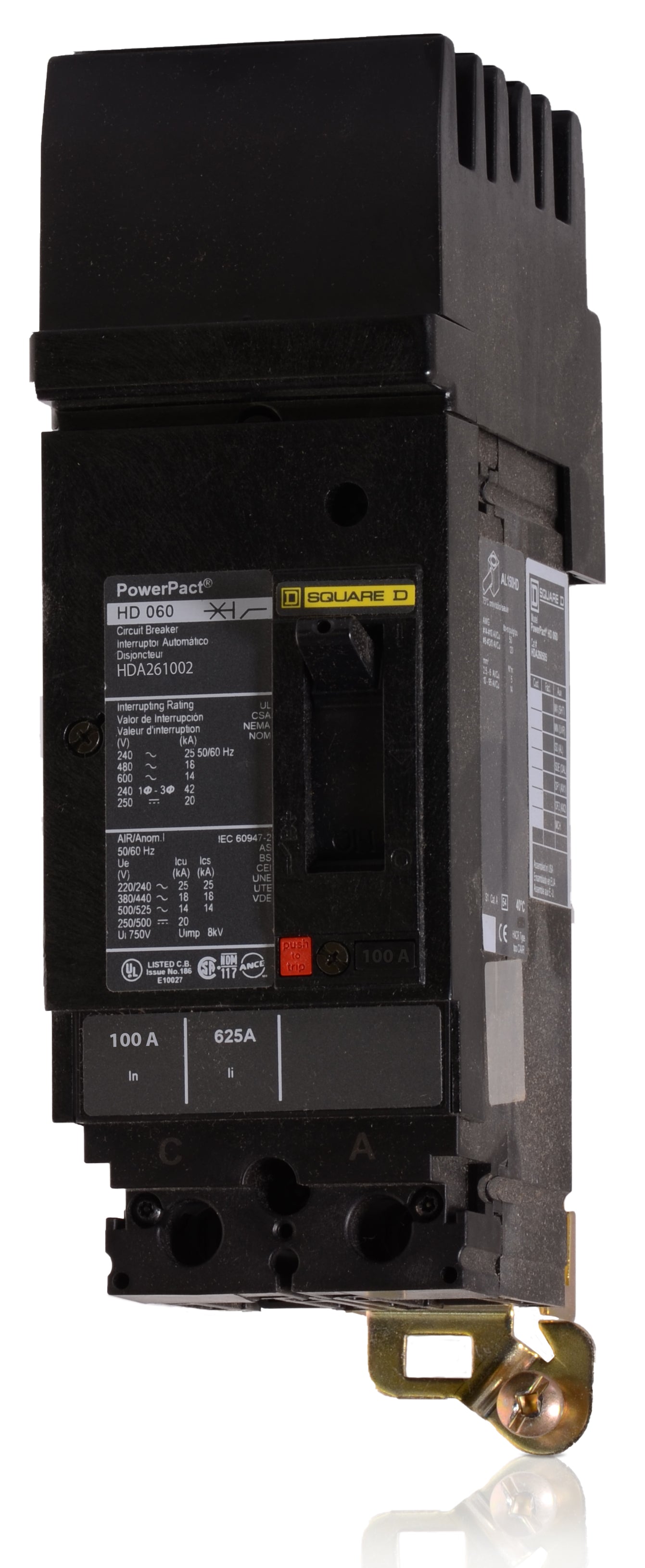

SCHNEIDER ELECTRIC 600-VOLT 100-AMP HDA261002 Molded CASE Circuit Breaker 600V 100A

SCHNEIDER ELECTRIC 600-VOLT 100-AMP HDA261002 Molded CASE Circuit Breaker 600V 100Azoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating690V AC
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage100
Amperage Rating100
Amps100 A
ApplicationHACR rated Applications.
ApprovalsCE, CSA, IEC, UL
Awg GaugeAWG 14...AWG 3/0 alumin.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Breaking Capacity25 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeD
California Proposition .DINP, which is known to.
Catalog NumberHDA261002
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Actuatortoggle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.I-Line Bracket
Circularity ProfileENVEOLI2206027EN
ColorBlack
Color FamilyBlack
Communication InterfaceModbus || Ethernet
ConnectionI-LINE CONNECTION (ON E.
Connection TypeI-Line Style Plug-In
Contactor TypeMagnetic
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginMX - Mexico, Mexico
Current Rating100-100A, 100 A
Depth86 mm
Device Applicationdistribution
DisplayHDA261002 Circuit break.
ECCNEAR99
Electrical ConnectionI-Line connection line .
Environmental DisclosureENVPEP2206027EN
Eu Rohs DirectiveCompliant
Family NamePowerPact H Family
Family SeriesSquare D Circuit Breake.
FeaturesMercury Free; PVC Free
FrameH-Frame
Frame SizeH
Frame TypeH Frame, H-Frame
Frequency Rating50/60HZ
FunctionsLong Time and Instantan.
Gross Weight4.11 lbs
Gtin785901750383
Height163 mm, 3 in., 6.42
High Amp Trip Setting1700 A
Interrupt Rating25 kA at 220/240V AC, 1.
Interrupting Rating18kAIC at 480V
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemCircuit breaker,PowerPa.
Item NumberHDA261002
Item TypeMOLDED CASE CIRCUIT BRE.
Length16 mm, 4.8 IN
Line Rated Current100-100 A
Local Signallingswitched off (OFF) 1 tr.
Made in USANo
Magnetic Hold Current900 A
Magnetic Tripping Curre.1700-1700 A
ManufacturerSquare D, Schneider Ele.
Manufacturer Part NumberHDA261002
Max. AIR Rating25 kA
Max. Wire Size3/0 AWG (Cu/Al)
Mercury FreeYes
Min. Wire Size14 AWG (Cu/Al)
Mounting Height3 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
Mounting TypeI-Line
MpnHDA261002
Net Weight2.2 kg, 0 lbs
Network Frequency50/60 Hz
No. of Poles2
Number of Poles2
Number Of Slots2 auxiliary switch OF p.
Operating Temperature-13F AND 158F (-25 C AN.
Phase1
Phase ConnectionAC
Poles3, 2
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.2t
ProtectionThermal Magnetic
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rated Voltage690V AC 50/60 Hz IEC 60.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesHDA, PowerPact H-Frame .
Special FeaturesI-LINE PLUG-ON
StandardUL || CSA || NEMA || NO.
StandardsUL || CSA || NEMA || NO.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionI-Line, Lug
Terminal IdentifierAL150HD
Terminals IncludedLine and Load
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip RangeHOLD: 900A - TRIP: 1700A
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
TypeThermal/Magnetic
UNSPSC39121616
Upc785901750383
UPC785901750383
UPC Code785901750383
Utilisation Categorycategory A
Voltage600
Voltage Rating600 V, 600 VAC/250 VDC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width104 mm, 4.09
Wire Stripping Length16 mm
