TB Woods AL0951

B071VLZWDM

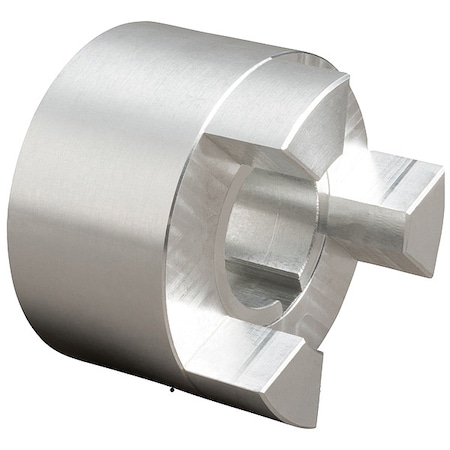

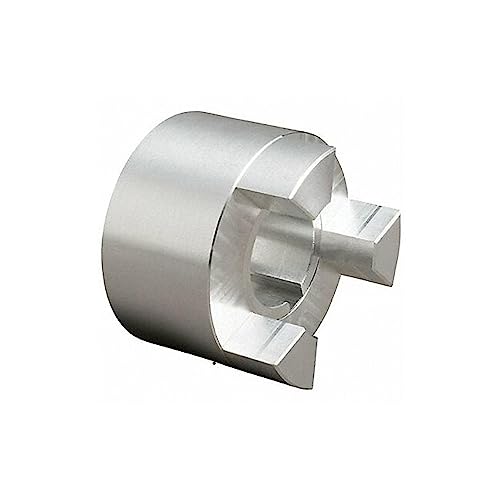

Jaw Coupling Hub,1",Aluminum

Jaw Coupling Hub,1",Aluminumzoom

Attributes

Key Value
Assembled Coupling Leng.2.5 in
Bore Dia.1 in
Bore Diameter1 in
Bore shapeFinish with keyway
Bore size1 in
Bore size frac (in)1.000000
Bore Tolerance+0.0005/+0.0015 in
Bore tolerance+.0005 to +.0015
Bore tolerance (in)+.0005 to +.0015
BrandTb Woods
Center0.5
ColorAluminum
Coupling Overall Length2 1/2 in
Coupling sizeAL095
Current Stock197
Dimension (in) (LTB)1.46
Dimension (in) (OD)2.13
Dimension (in) (S)1.46
Family ID2,008
Family nameJaw coupling
Hub Diameter2 7/64 in
Hub materialAluminum
International ShippingNo
ItemJaw Coupling Hub
Item - Jaw Coupling HubsJaw Coupling Hub
Jaw typeStraight
Keyseat1/4 x 1/8
Keyway1/4 in x 1/8 in
Keyway Depth1/8 in
Keyway Size1/4" x 1/8"
Keyway Size Type1/4 in x 1/8 in
Keyway Width1/4 in
Lead TimeExpected to ship in 1-2.
Length through Bore1 in
Length-through-bore1
MaterialAluminum
Material - HubsAluminum
Material typeAluminum
Max compatible bore size1.125
Max parallel misalignme.0.015
Max RPM9,000
Max speed9000
Maximum Bore Diameter1 1/8 in
Maximum Operating Tempe.250 Degrees F
Maximum Torque for Spid.194 in-lb (Buna-N), 291.
Min compatible bore size0.4375
MpnAL0951
O.D.2.11
Outside Dia.2.11 in
Outside Diameter2 7/64 in
Overall length2.5
Overall Length2.54 in
Product descriptionAL095 X 1
Product familyL-jaw hub
Screw Thread Size5/16"-18 NC
Setscrew length0.375
Setscrew length frac (i.0.375000
Setscrew size5/16 18NC
SizeAL095
Size - Jaw CouplingsAL095
Size code95
SKUZO-G1338976
SubCategoryPower Transmission
Unit Of MeasureEnglish
UPC698672037624

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply33792022.573In StockTB Woods22.57 @ 3
thumbzoomZoroG133897623.751258Tb Woods0.0123.75 @ 1
thumbzoomsustainablesupply.comC281812925.61In StockTB Wood's0.0125.6 @ 1
thumbzoomsimsupply.comZO-G133897634.911197Tb Woods34.91 @ 1
