TE Connectivity / AMP Brand 1-284040-0

B00UR8QR6G

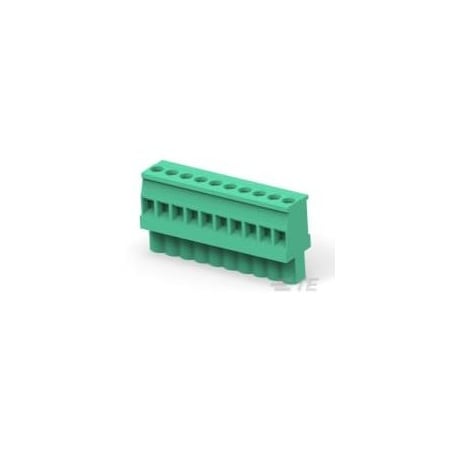

TE Connectivity/AMP Brand 1-284040-0 Connector Terminal Blocks

TE Connectivity/AMP Brand 1-284040-0 Connector Terminal Blockszoom

Attributes

Key Value
Block TypeNone
Centerline (Pitch).197 in
ColorGreen
Connector & Contact Ter.Wire & Cable
Connector StylePlug
Contact Base MaterialPhosphor Bronze
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Tin
Contact Mating FinishTin
Contact Tail Length-
Current - IEC-
Current - UL15 A
Current Rating (Max)15 A
FeaturesRetention Latches (Non-.
Header Orientation-
Housing ColorGreen
Housing MaterialPA 6.6, Polyamide (PA66.
Ingress Protection-
Insulation Height0.984" (25.00mm)
InterlockWithout
Marking ColorWhite
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting AngleVertical
Mounting TypeFree Hanging (In-Line)
Number of Levels1
Number of Positions10
Number of Rows1
Operating Temperature-40?C ~ 110?C
Package Quantity1
Part StatusActive
Pitch0.197" (5.00mm)
Plug Wire Entry270?
Positions Per Level10
Screw FlangeWithout
Screw MaterialBrass
Screw Plating MaterialNickel
Screw SizeM3
Screwless Terminal BlockYes
Side StackableYes
Termination StyleScrew - Rising Cage Cla.
Torque - Screw0.79 Nm (7.0 Lb-In)
TypePlug, Female Sockets
Voltage300 VAC
Voltage - UL300 V
Wire Entry AngleSide
Wire Gauge or Range - A.12-30 AWG
Wire Gauge or Range - m.0.05-3mm?
Wire Range30 to 12 AWG
Wire Strip Length6-7.5mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1-284040-08.071388TE Connectivity / AMP Brand8.07 @ 2
Newark95Y51658.882002AMP - TE CONNECTIVITY8.88 @ 200
HotendaH154039710.8812TE Connectivity AMP Connectors10.88 @ 2
AmazonTPB07KQNMJH228.79121TE Connectivity / AMP Brand28.79 @ 2
AmazonSCB07KQNMJH264.7112TE Connectivity / AMP64.71 @ 2
thumbzoomZoroG00093019988.912Te Connectivity88.9 @ 2
