Ultradex S08M SDUCR2

B018KKJD7M

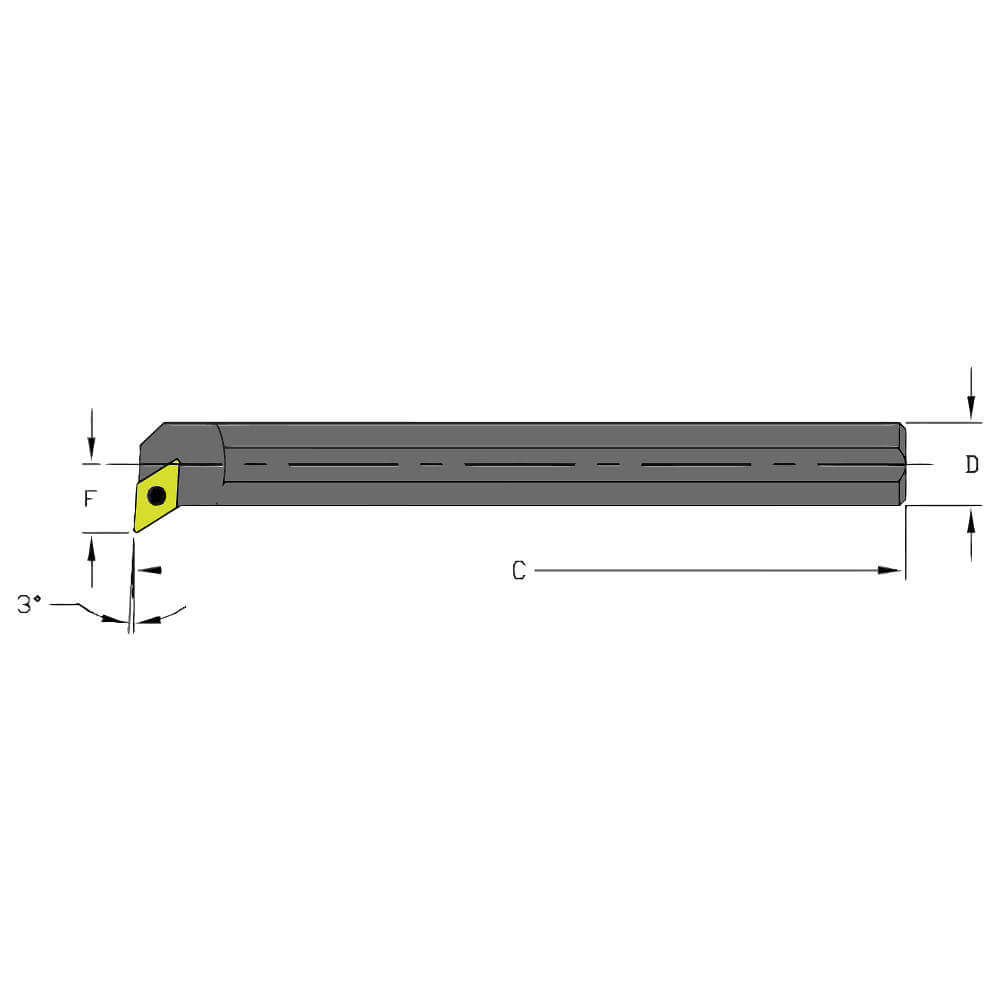

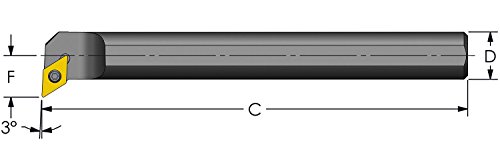

Ultra-Dex S08M SDUCR2 Steel Boring Bar to Hold a Positive DCMT 21.51 at -3 Degree Lead, Right Hand, No Coolant, 0.500" x 6", 0.720" Minimum Bore

Ultra-Dex S08M SDUCR2 Steel Boring Bar to Hold a Positive DCMT 21.51 at -3 Degree Lead, Right Hand, No Coolant, 0.500" x 6", 0.720" Minimum Borezoom

Attributes

Key Value
ANSI CodeS08M SDUCR2
ANSI NumberS08M SDUCR2
Bar Dia.0.500"
Center to Cutting Tip7/16 in
Cutting DirectionRight Hand
Cutting Direction (HAND)Right Hand
Cutting Edge Type-3 Degrees
For Use WithDCMT 21.51
Inscribed Circle1/4"
Insert Shape55 Degrees Diamond
Insert Size21.51
Insert StyleDCMT
Insert Thickness0.0937"
ItemIndexable Boring Bar
Lead Angle-3 Degrees
Left/Right HandRight Hand
Master Insert Identific.DCMT 21.51
Min. Bore0.720"
Min. Bore Dia.0.7200 in
Minimum Bore Diameter (..720"
Mounting StyleScrew Lock
Overall Length6 in
RakePositive
Shank Dia.1/2 in
Shank MaterialHigh Speed Steel
StyleSolid, SDUCR
TypeTurning

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG923535397.391In Stock10Ultra-Dex Usa0.397.39 @ 1
thumbzoomfreertool.comFTS-FG551370109.861In StockUltra-Dex109.86 @ 1
thumbzoomRaptor SuppliesAH3WDU147.49021In StockULTRA-DEX USA147.4902 @ 1
