Ultradex S20S MWLNR4

B018KKQ18Q

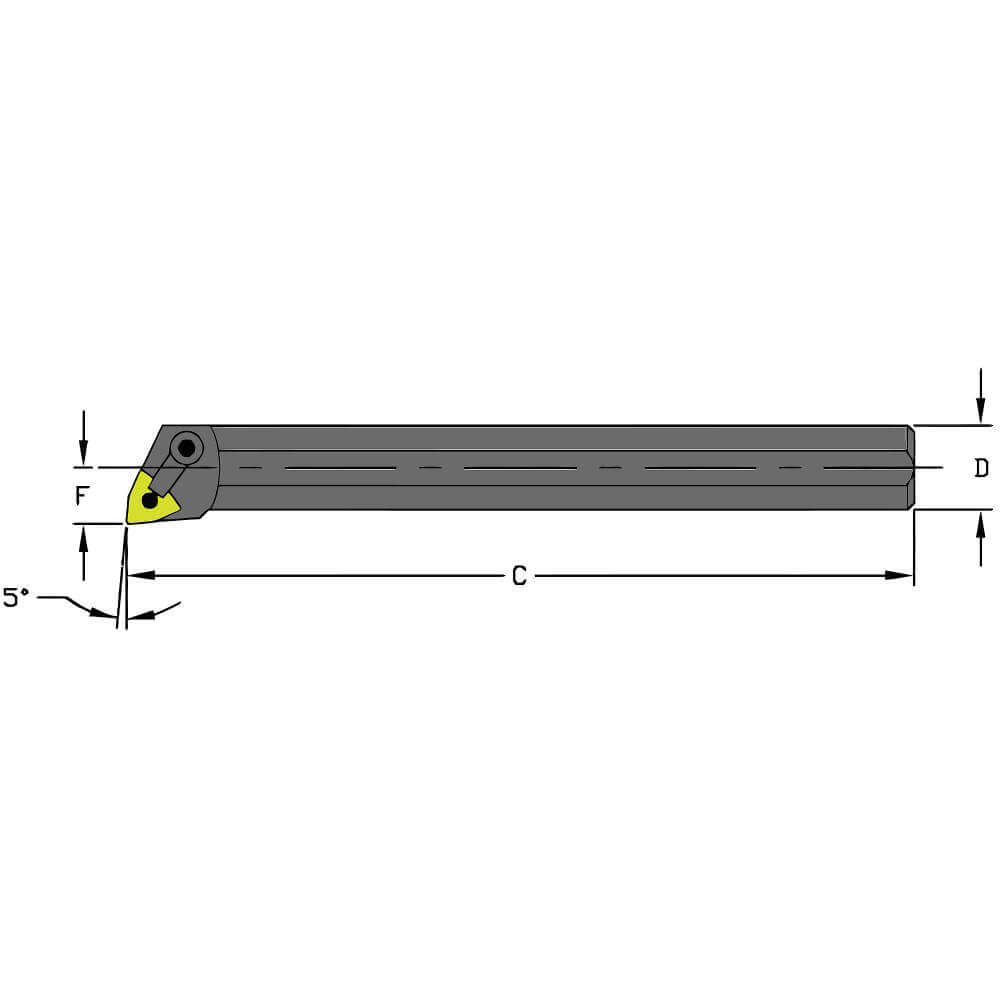

Ultra-Dex S20S MWLNR4 Steel Boring Bar to Hold a Negative WNMG 432 at -5 Degree Lead, Right Hand, No Coolant, 1.250" x 10", 1.470" Minimum Bore

Ultra-Dex S20S MWLNR4 Steel Boring Bar to Hold a Negative WNMG 432 at -5 Degree Lead, Right Hand, No Coolant, 1.250" x 10", 1.470" Minimum Borezoom

Attributes

Key Value
ANSI CodeS20S MWLNR4
ANSI NumberS20S MWLNR4
Bar Dia.1.250"
Center to Cutting Tip0.7650 in
Cutting DirectionRight Hand
Cutting Edge Type-5 Degrees
For Use WithWNMG 432
Inscribed Circle1/2"
Insert Inscribed Circle1/2 in
Insert ShapeTrigon
Insert Size432
Insert Thickness0.1875"
ItemIndexable Boring Bar
Lead Angle-5 Degrees
Left/Right HandRight Hand
Min. Bore1.470"
Min. Bore Dia.1.4700 in
Mounting StyleClamp And Lock Pin
Overall Length10 in
RakeNegative
Shank Dia.1-1/4 in
Shank MaterialHigh Speed Steel
StyleSolid
TypeTurning

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG9236534229.561In Stock10Ultra-Dex Usa3.2229.56 @ 1
thumbzoomRaptor SuppliesAH3WJX320.51184751In StockULTRA-DEX USA320.5118475 @ 1
