- mpnEE283
- brandname: US Motors
- manufacturername: US Motors

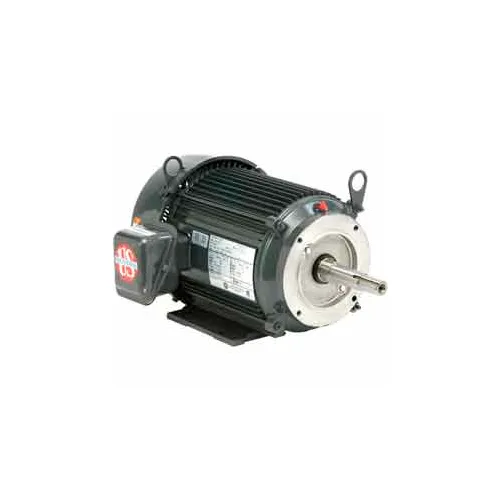

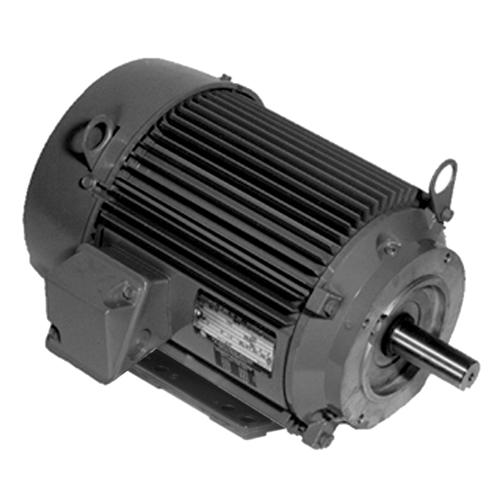

US Motors Pump, 1/2 HP, 3-Phase, 3450 RPM Motor, EE283
- PartNumber: EE283
- Model: EE283
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: US Motors / Emerson
- Label: US Motors / Emerson
Attributes
| Key | Value |
|---|
| Amps | 2.0-1.9/.95 |
| Bearing Type | Ball |
| Bearings | Ball |
| Body Dia. | 6.5 in |
| CC Number | CC030A |
| Composition | Rolled Steel |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 18.70 |
| Family Series | US Motors Motors |
| Finish | Unfinished |
| FL Amps | 2.0-1.9/.95 |
| Frame | 56J |
| Frequency | 60 Hz |
| Full Load Amps | 2.8-2.7/1.35 |
| Full Load Amps @ 50Hz | 2.8-2.7/1.35 |
| Gross Weight | 24 lbs |
| Hertz | 50, 60 |
| Horsepower | 1/2 hp |
| HP | 0.5, 1/2 |
| HP @ 50Hz | 1/2 |
| Hz | 50/60, 60/50 |
| Ins. Class | B |
| Insulation Class | B |
| Item | Jet Pump Motor |
| Item Number | EE283 |
| Kilowatts | 0.4 kW |
| Length Less Shaft | 9 5/16 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | P063TLL4856013J |
| Manufacturer Part Number | EE283 |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | P063TLL4856013J |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.6 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CCWSE |
| Motor Sub Application | Jet Pump |
| Motor Thermal Protection | None |
| Mounting | Footless, Face |
| Mounting Type | C-Face |
| Nameplate RPM | 3,600 |
| NEMA Design | C |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 80.1 % |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 11 3/16 in |
| Overload Protection | None |
| Part Number | EE283 |
| Phase | 3, Three |
| Product Type | Pump, Three Phase |
| Rotation | CCW Shaft End |
| RPM | 3450, 3,450 RPM |
| RPM @ 50Hz | 3,600 |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.60 |
| Service Factor @ 50Hz | 1 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Shaft Material | 303 Stainless Steel |
| Ship Weight | 17 lbs. |
| Speed (RPM) | 3450 |
| Standards | CSA Certified, UL Recog. |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208-230/460V AC, 208V, . |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage @ 50Hz | 208-230/460 |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460 |
| Weight | 17 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G3313660 | 169.0 | 1 | In Stock | | U.S. Motors | 24.0 | 169.0 @ 1 |
 | Global Industrial | WBB466563 | 232.95 | 1 | In Stock | | US Motors | | 232.95 @ 1 |
 | emotorpro.com | EE283 | 240.75 | 1 | In Stock | | U.S. Motors | 17.0 | 240.75 @ 1 |
 | motorsandcontrol.com | EE283 | 245.9 | 1 | In Stock | | US Motors (Nidec) | 18.7 | 245.9 @ 1 |
 | Galco | EE283-USM | 245.91 | 1 | In Stock | | US Motors | 24.0 | 245.91 @ 1 |
 | National Supply Network | B466563 | 256.34 | 1 | In Stock | | US MOTORS | | 256.34 @ 1 |
 | bscsource.com | EE283 | 361.49 | 1 | In Stock | | US Motors | | 361.49 @ 1 |
 | Guardian | 81423071 | 397.78 | 1 | In Stock | | US Motors | | 397.78 @ 1 |
