- mpnEU3002
- brandname: US Motors
- manufacturername: US Motors

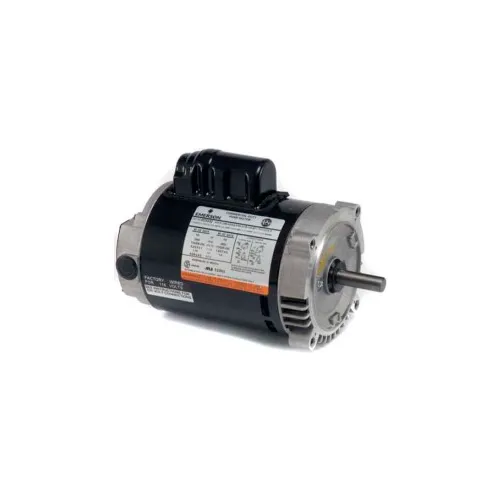

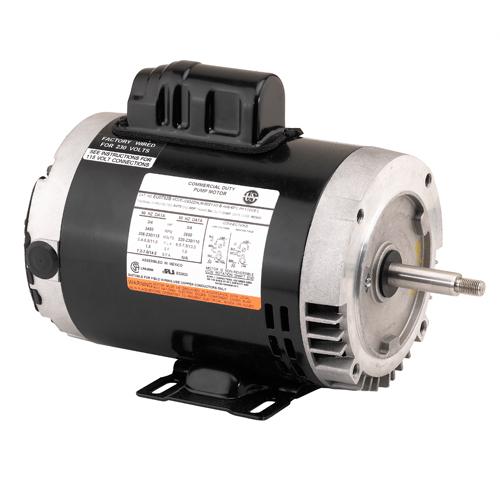

U.S. Motors US Motors Pump, 3 HP, 1-Phase, 3450 RPM Motor, EU3002
- Brand: U.S. Motors
- PartNumber: EU3002
- Binding: Misc.
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 14.0-12.8 |
| Bearings | Ball |
| Bolt Circle Dia. | 3/8 in |
| Capacitor | 35MFD/370VAC |
| Composition | Rolled Steel |
| Conduit Box Location | Exterior |
| Conduit Box Position | F3 |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 40.70 |
| Family Series | US Motors Motors |
| FL Amps | 14.0-12.8 |
| Frame | 56J |
| Frequency | 60 Hz |
| Full Load Amps | 14.0-12.8 |
| Gross Weight | 39.6 lbs |
| Height | 8 1/2 in |
| Hertz | 60 |
| Horsepower | 3 hp |
| HP | 3 |
| Hz | 60, 60/50 |
| Ins. Class | B |
| Insulation Class | B |
| Inverter Rated | No |
| Item | Special Application Com. |
| Item Number | EU3002 |
| Kilowatts | 2.2 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | T063CML1415013J |
| Manufacturer Part Number | EU3002 |
| Max. Ambient Temp. | 104 Degrees F |
| Max. SF Amps | 15.7-14.2 A |
| Maximum Ambient Tempera. | 40? C |
| Model Number | T063CML1415013J |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Shaft Rotation | CCW |
| Motor Thermal Protection | Auto |
| Mounting | Footless, Face |
| Mounting Type | C-Face |
| Nameplate RPM | 3,450 |
| NEMA Frame | 56J |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 87 % |
| Nominal Voltage | 208 VAC, 240 VAC |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 13 3/8 in |
| Overload Protection | Automatic |
| Part Number | EU3002 |
| Phase | 1, Single |
| Product Type | Pump, Capacitor Start |
| Rotation | CCW Shaft End |
| RPM | 3450, 3,450 RPM |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8 in |
| Ship Weight | 37 lbs. |
| Speed (RPM) | 3450 |
| Thermal Protection | Automatic |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208V, 230V, 208-230V AC |
| Voltage (AC) | 208-230 VAC |
| Voltage Compatibility | 115/208-230V AC, 200-23. |
| Volts | 208, 230 |
| Weight | 39.6 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1928916 | 378.0 | 1 | In Stock | | U.S. Motors | 40.0 | 378.0 @ 1 |
 | Global Industrial | WBB465399 | 599.0 | 1 | In Stock | 17 | US Motors | | 599.0 @ 1 |
 | National Supply Network | B465399 | 666.69 | 1 | In Stock | | US MOTORS | | 666.69 @ 1 |
 | emotorpro.com | EU3002 | 670.19 | 1 | In Stock | | U.S. Motors | 37.0 | 670.19 @ 1 |
 | motorsandcontrol.com | EU3002 | 683.3 | 1 | In Stock | | US Motors (Nidec) | 40.7 | 683.3 @ 1 |
 | Galco | EU3002-USM | 699.58 | 1 | In Stock | | US Motors | 39.6 | 699.58 @ 1 |
| motionindustries.com | 04385286 | 895.4 | 1 | In Stock | | US Motors (Nidec) | | 895.4 @ 1 |
