- mpnC23125
- brandname: Cle-Line
- manufacturername: Cle-Line

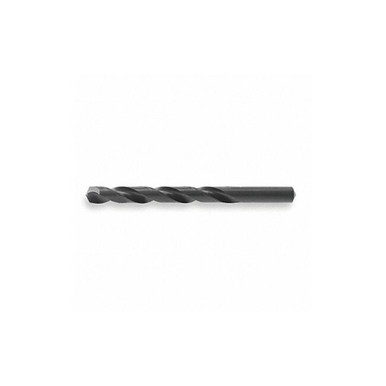

Jobber Bit, 1/16 in, High Speed Steel
- Brand: Cle-line
- PartNumber: C23125
- Model: C23125
- Color: Black Oxide
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Current Stock | 397 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.0625 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.0625", 0.0625 |
| Diameter (Fraction) | 1/16" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 1/16 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0129 in |
| Drill Size - Decimal In. | 0.0625 in |
| Drill Size - Fraction | 1/16 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | Tin, Black Oxide |
| Flute Length | 0.8750", 7/8 in |
| Flute Length (Metric) | 22.22mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 21/32 in |
| Mpn | C23125 |
| Number of Flutes | 2 |
| Overall Length | 1 7/8 in, 1-7/8 in, 1.8. |
| Overall Length (Metric) | 47.63mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Series | 1801 |
| Shank Configuration | Straight |
| Shank Dia. | 1/16 in |
| Shank Length | 1 in, 1.0000" |
| Shank Length (Metric) | 25.40mm |
| Shank Size | 1/16 in Dia x 1 in L, 0. |
| Shank Size (Metric) | 1.59mm |
| Shank Type | Straight |
| SKU | ZO-G0839885 |
| Style | 1801 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 1/16" |
| Type | Heavy Duty |
| UPC | 697334231257 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2542940 | 0.8194 | 12 | 12 | | Cle-Line | | 0.8194 @ 12 |
 | Megadepot | C23125 | 0.89 | 1 | 12 | | Cle-Line | | 0.89 @ 12 |
 | usmegastore.com | C23125 | 0.89 | 1 | 12 | | Cle-Line | | 0.89 @ 12 |
 | heavydutydepot.com | C23125 | 0.9 | 112 | 12 | | Cle-Line | | 0.9 @ 112 |
 | MRO Supply | 6124648 | 0.98 | 51 | 12 | | Cle-Line | | 0.98 @ 51 |
 | Zoro | G0839885 | 1.05 | 1 | 815 | | Cle-Line | 0.01 | 1.05 @ 12 |
 | Raptor Supplies | AB9CMJ | 1.363167 | 1 | 12 | | CLE-LINE | | 1.363167 @ 12 |
 | sustainablesupply.com | C1465193 | 1.44 | 1 | 12 | | Cle-Line | 0.01 | 1.44 @ 12 |
 | simsupply.com | ZO-G0839885 | 7.22 | 1 | 397 | | Cle-Line | | 7.22 @ 12 |
| AmazonSC | B00J9I4Z6O | 14.64 | 1 | 12 | | Cle-line | | 14.64 @ 12 |
