Inspired LED E96L24DC-KO

mpnE96L24DC-KO
brandname: Magnitude
manufacturername: Magnitude

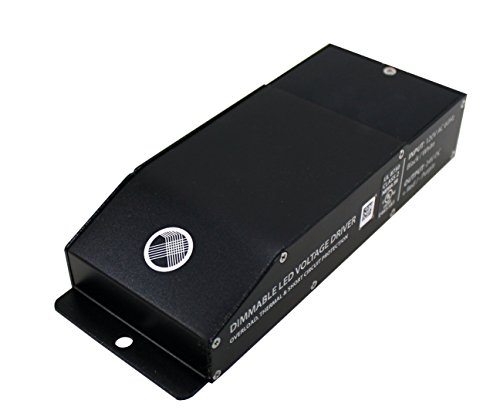

24V 96W Magnitude Electronic Transformer LED Driver (E96L24DC-KO)

Brand: Inspired LED
PartNumber: E96L24DC-KO
Model: 96W LED Driver 24V
PackageQuantity: 1
Binding: Electronics
Manufacturer: Magnitude
Label: Magnitude

Attributes

Key	Value
-30?C (-22?F)	Start Temp. (Min)
0.95	Power Factor
1 A	Input Current
1.0625	Weight (lb.)
1.26''	Height (in)
120VAC	Voltage (V)
2.67''	Width (in)
24V	Output Voltage
4.0A	Output Current
50?C (122?F)	Start Temp. (Max)
6.77''	Length (in)
96W	Output Power
AMP	0.41, 1.75
Amps Rating	4000 mA
Approval Agency	UL, FCC, CSA
Brand	Magnitude, Magnitude Li.
Case Quantity	20
Category	Power Supplies - Extern.
Collection	E Series
Constant Voltage	Type
Current - Output (Max)	4.16A
Description	E-SERIES, CV, PHASE-CUT.
Detailed Description	4.16A 24V Constant Volt.
Digi-Key Part Number	3165-E96L24DC-KO-ND
Digi-Key Programmable	Not Verified
Dimmable	Yes
Dimming	MLV, TRIAC
Dimming Control	MLV
E96L24DC-KO	Stock Code
Efficiency	up to 90%, 90%
ETL Listed	No
Features	OCP, OVP, SS
For additional options .	Notes
Hard Wired LED Driver	Ballast Type:
Height	1.26 in., 1-13/50 in
Input Current	1.0 Amp
Input Voltage	120, 120V
Input Wires (White Blac.	Lead Lengths
IP Rating	IP-67
LED	Bulb Type
LED Voltage Drivers-UL .	Family
Length	6-77/100 in, 6.77 in.
Lighting Technology	LED
Location	Indoor, Outdoor
Magnitude	Brand
Manufacturer	Magnitude Lighting
Manufacturer Product Nu.	E96L24DC-KO
Material	Aluminum
Maximum Wattage	96 Watt
Mfr	Magnitude Lighting
Mounting	Clamp
Mounting Type	Chassis Mount
MPN	E96L24DC-KO
MPN (Part No.)	E96L24DC-KO
NEMA	NEMA 3R, N/A
Number of Outputs	1
Operating Temperature	-30?C ~ 65?C
Other Certifications	Class 2
Output Current	4.2 Amps Max
Output Voltage	24, 24V DC
Package	Box
Power (Watts)	96 W
Power Factor	0.95
Product Category	Ballasts & Drivers
Product Height (in.)	1.3
Product Length (in.)	6.77
Product Rating	Wet Rated, NEMA 3R, Cla.
Product Status	Active
Product Type	Ballast and LED Drivers
Product Warranty	5 Years
Product Width (in.)	2.67
Ratings	NEMA 3R
Ratings and Certificati.	UL/Wet Location
Series	E Series
Series/Collection	Magnitude Lighting E Se.
Size / Dimension	6.77" L x 2.67" W x 1.2.
Standard Number	8750, 15B, CSA C22.2 No.
Super compact ALUMINUM .	Housing
Termination Style	Wire Leads
Topology	Buck
Two Hole flange mounti.	Mounting
Type	Constant Voltage
UL 8750, class 2	UL Listed
UL Listed	Yes, UL 8750
UPC	857814006151
Voltage - Input (Max)	130VAC
Voltage - Input (Min)	100VAC
Voltage - Output	24V
Volts	120V
Warranty	5-Year Limited
Wattage Rating (W)	96
Watts	96 W
Weight	-, 1.1 lb.
Width	2.67 in., 2-67/100 in
Yes	Dimmable

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
beeslighting.com	E96L24DC-KO	105.23	1	9	Magnitude Lighting	105.23 @ 1
Digi-Key	16262236	127.75	1	221	Magnitude Lighting	127.75 @ 1
bulbspro.com	E96L24DC-KO	136.25	1	In Stock	Magnitude	136.25 @ 1
ferguson.com	7577172	147.31	1	In Stock	Magnitude Lighting Converters	147.31 @ 1
