- mpnPNL-4-C
- brandname: Panduit
- manufacturername: Panduit

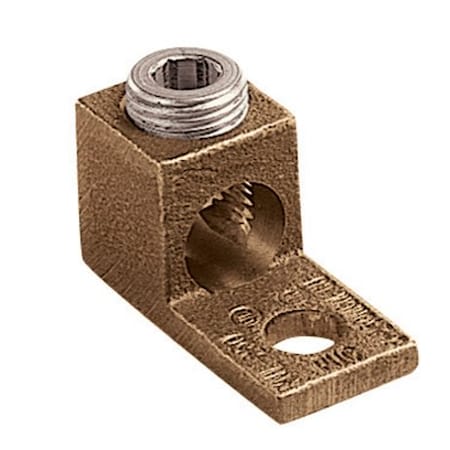

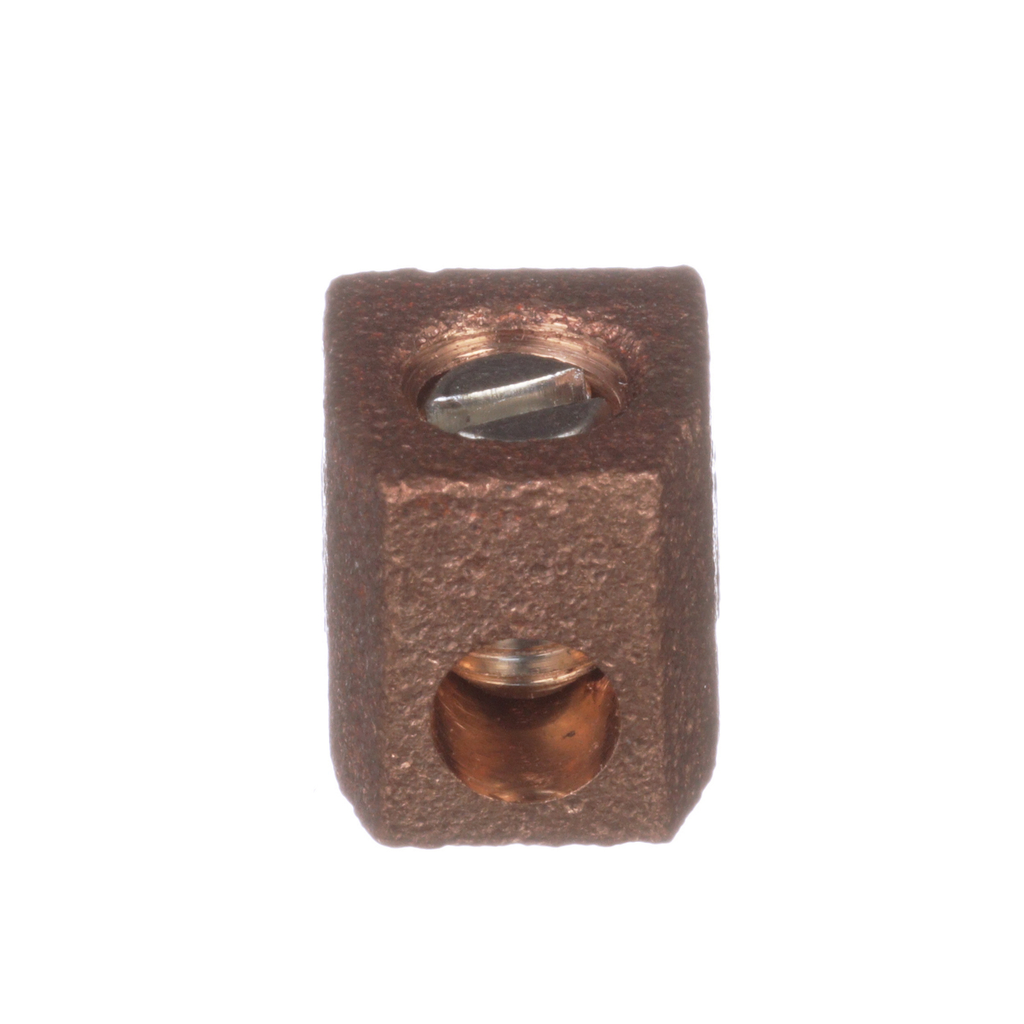

Panduit Hardware CU MECHLUG 1H ST 14SOL 4STR PK100
- Brand: Panduit Hardware
- PartNumber: PNL-4-C
- Model: PNL-4-C
- PackageQuantity: 1
- Manufacturer: Panduit Hardware
- Label: Panduit Hardware
Attributes
| Key | Value |
|---|
| Approvals | CSA, UL |
| ARRA Compliant | Y |
| Base Material | Cast Copper |
| Base Product Number | PNL-4 |
| Brand | Panduit, Pan-Lug? |
| Buy American Compliant | Y |
| California Pro65 Cancer | No |
| Catalog Number | PNL-4-C |
| Category | Connectors, Interconnec. |
| Color | - |
| Conductors | 1 |
| Contact Finish | - |
| Contact Material | Copper Alloy |
| Country of Origin | IN - India, India |
| Country of Origin (subj. | India |
| Country of Origin 2Digit | IN |
| Description | CONN TERM RECT LUG 4-14. |
| Detailed Description | Terminal Connector Rect. |
| Diameter - Barrel ID | - |
| Diameter - Barrel OD | - |
| Diameter - Ring ID | 0.270" (6.86mm) |
| Digi-Key Part Number | 298-15561-ND |
| EAN | 00074983632527 |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | With Screw |
| Gross Weight | 0 lbs |
| GTIN | 00074983632527 |
| GTIN Package | 00074983632527 |
| Hazardous Material Flag | N |
| Height | 0.56 in. |
| Insulation | Non-Insulated |
| Item | Cu,Mech Lug,1h,St,#14so. |
| Item Number | PNL-4-C |
| Item Type | Mechanical Connectors -. |
| Length - Overall | 1.250" (31.75mm) |
| Lug Wire Size | 14-4 AWG |
| Made in USA | No |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | PNL-4-C |
| Manufacturer Product Nu. | PNL-4-C |
| Manufacturer Standard L. | 8 Weeks |
| Material | Copper, Cast Copper |
| Material/Composition | Copper |
| Max Conductor Range | 4 AWG |
| Maximum Voltage (V) | 600 |
| Mercury Content Indicat. | No |
| Mfr | Panduit Corp |
| Min Conductor Range | 14 AWG |
| Min Order Qty | 100 |
| Min. Order UOM | Piece |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| No. of Holes | 1-Hole |
| Number of Conductors | 1 |
| Number of Holes | 1 |
| Overall Height (In.) | 0.56 |
| Overall Height (mm) | 14.2 |
| Overall Length (In.) | 1.25 |
| Overall Length (mm) | 31.8 |
| Package | Bulk |
| Pallet Quantity | 0 |
| Pallet Volume | 0.000000 |
| Pallet Weight | 0.0000 |
| Product Segment | IEI |
| Product Series | Pan-Lug Mechanical |
| Product Status | Active |
| Product Type | Mechanical Connectors -. |
| Rated Voltage | 600V |
| REACH Status | False |
| RoHS Compliant | Compliant, Yes |
| Series | Pan-Lug? |
| Standard Carton Volume . | 0.0000 |
| Standard Carton Weight . | 0.0000 |
| Standard Package Volume. | 0.0528 |
| Standard Package Weight. | 5.3000 |
| Std Ctn Qty | 0 |
| Std Package Height In | 3.4 |
| Std Package Height MM | 86.36 |
| Std Package Length In | 7.75 |
| Std Package Length MM | 196.85 |
| Std Package Width In | 3.4 |
| Std Package Width MM | 86.36 |
| Std. Pkg. Qty. | 100 |
| Std. Pkg. UOM | Piece |
| Stud Hole Size (In.) | 1/4 |
| Stud Size | 1/4 in, 44565 |
| Stud/Tab Size | - |
| Sub Brand | Pan-Lug, Pan-Lug? |
| Tab Thickness | 0.140" (3.56mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Lug, Grounding |
| Termination | Screw |
| Tongue Length (In.) | 0.66 |
| Tongue Thickness (In.) | 0.14 |
| Tongue Type | Straight Tongue |
| Tongue Width (In.) | 0.53 |
| Tongue Width (mm) | 13.5 |
| Type | Mechanical Lug |
| UL Temperature Rating (. | 90 |
| UNSPSC | 39121405 |
| UOM EA PK | PK |
| UPC | 07498363252, 0749836325. |
| UPC Code | 074983632527 |
| Voltage Rating | 600 |
| Width - Outer Edges | 0.530" (13.46mm) |
| Wire Gauge | 4-14 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | mayerelectric.com | PANPNL4C | 4.3452 | 1 | 5 | | PANDUIT | 5.3 | 4.3452 @ 5 |
| Onlinecomponents.com | PNL-4-C | 4.45 | 1 | 5 | | Panduit | | 4.45 @ 5 |
 | Digi-Key | 4577268 | 4.61 | 1 | 5 | | Panduit Corp | | 4.61 @ 5 |
 | Zoro | G0412131 | 5.18 | 2 | 5 | 148 | Panduit | 5.3 | 5.18 @ 5 |
 | Galco | PNL-4-C-PNDT | 5.69 | 100 | 5 | | Panduit | | 5.69 @ 100 |
 | Newark | 14AC0810 | 5.95 | 1 | 5 | | PANDUIT | | 5.95 @ 5 |
 | Platt.com | 0709729 | 6.12 | 1 | 5 | | Panduit | | 6.12 @ 5 |
 | crescentelectric.com | 145394 | 6.48 | 1 | 5 | | Panduit | | 6.48 @ 5 |
| Airline Hydraulics | PANDUIT PNL-4-C | 6.86 | 1 | 5 | | Panduit Corp | | 6.86 @ 5 |
| us.rs-online.com | 71263933 | 7.97 | 1 | 176 | | Panduit | | 7.97 @ 5 |
 | Carlton Bates Company | 07498363252 | 487.0 | 1 | 5 | | PANDUIT | | 487.0 @ 5 |
 | gordonelectricsupply.com | PNL-4-C | 600.0 | 1 | 5 | 12 | PANDUIT | | 600.0 @ 5 |
 | turtle.com | PAN PNL-4-C | 670.51 | 1 | 5 | | Panduit | | 670.51 @ 5 |
| Graybar | 99534621 | 743.1424 | 1 | 43 | | Panduit | | 743.1424 @ 5 |
| steinerelectric.com | 70720 | 776.04 | 1 | 5 | | Panduit | | 776.04 @ 5 |
