Ruland FCMR38-16-12-A

B0060M90VC

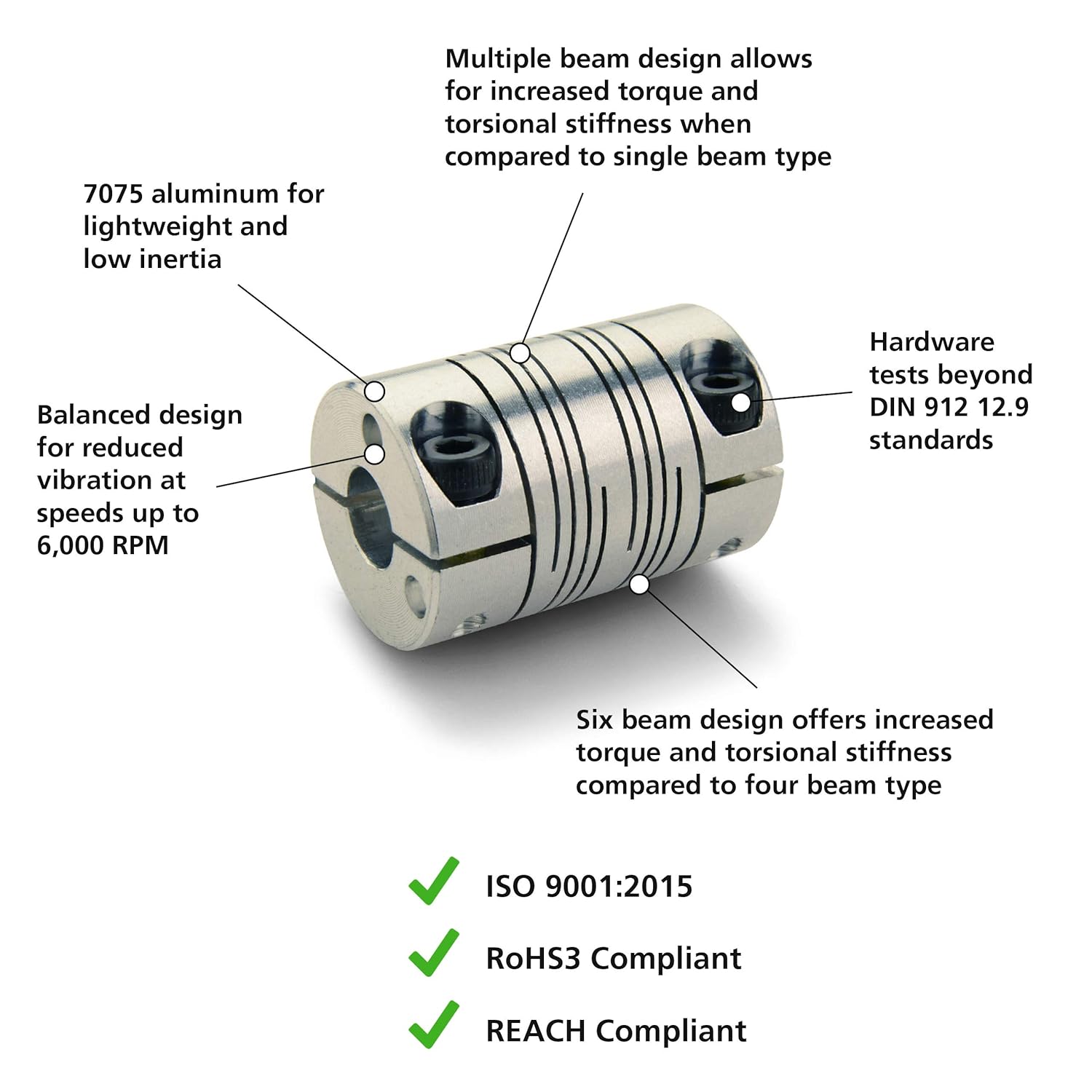

Ruland FCMR38-16-12-A Clamping Beam Coupling, Polished Aluminum, Metric, 16mm Bore A Diameter, 12mm Bore B Diameter, 38.1mm OD, 57.15mm Length, 10.73 Nm Nominal Torque

Ruland FCMR38-16-12-A Clamping Beam Coupling, Polished Aluminum, Metric, 16mm Bore A Diameter, 12mm Bore B Diameter, 38.1mm OD, 57.15mm Length, 10.73 Nm Nominal Torquezoom

Attributes

Key Value
Angular Misalignment3?
Axial Motion0.38 mm
B1 Max Shaft Penetration27.3 mm
B2 Max Shaft Penetration27.3 mm
Balanced DesignYes
Bore (B1)16 mm
Bore Dia.16mm x 12mm
Bore Tolerance+0.025 mm / -0.000 mm
Cap ScrewM5
CategoryHardware, Fasteners, Ac.
Clearance Dia. (In.)1.642 in
Clearance Dia. (mm)41.71
Clearance Diameter (C) .41.71 mm
Country of OriginUSA
Country of Origin (subj.United States
Description16MMX12MM ALUMINUM BEAM.
Digi-Key Part Number3188-FCMR38-16-12-A-ND
Dynamic Torque Non-Reve.5.37 Nm
Dynamic Torque Reversing2.68 Nm
FinishBright
Finish SpecificationBright, No Plating
Full Bearing Support Re.Yes
Hex Wrench Size4.0 mm
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Length (L)57.2 mm
Length through Bore26.47 mm
Length through Bore (In.1.042
Length through Bore (mm)26.47
ManufacturerRuland Manufacturing
Manufacturer Product Nu.FCMR38-16-12-A
MaterialAluminum
Material - CouplingsAluminum
Material Specification7075-T651 Extruded and .
Max. Angular Misalignme.3 Degrees
Max. Axial Misalignment.+/-0.03
Max. Bore (mm)16 mm
Max. Parallel Misalignm.0.015 in
Max. RPM6,000 RPM
Max. Temp.225 Degrees F
Max. Temp. Range (F)225 Degrees
Maximum Speed6,000 RPM
MfrRuland Manufacturing
Min. Bore (mm)12
Moment of Inertia30.032 x10
Note 1Torque ratings are at m.
Note 2Performance ratings are.
Note 3Torque ratings for the .
Number of Screws2 ea
Nypatch? Anti-Vibration.Yes
Outer Diameter (OD)38.1 mm
Outside Dia.38.1 mm
Outside Dia. (In.)1.5
Outside Dia. (mm)38.1
Overall Length57.2 mm
Overall Length (In.)2.25
Overall Length (mm)57.2
PackageBag
Parallel Misalignment0.76 mm
Product StatusActive
Rated Torque95 in-lb
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBlack Oxide
Screw MaterialAlloy Steel with
Screw SizeM5
Screw Size (mm)M5
Screw TypeCap Screw
Seating Torque9.5 Nm
Series-
Shaft Locking Type - Co.1 Piece Clamp
SizeFCMR38
Small Bore (B2)12 mm
Specifications1.500" (38.10mm) Outer .
Static Torque10.73 Nm
Style6-Beam Clamp
Tariff Code8483.60.8000
Temperature-40?F to 225?F (-40?C t.
Torque (In.-Lbs.)95
Torsional Stiffness0.39 Deg/Nm
Torsional Stiffness (De.0.044
TypeBeam Coupling
UNSPC31163003
UPC634529008201
UPC Code63452900820
Weight (lbs)0.291900
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com72177055101.291In StockRuland Manufacturing101.29 @ 1
thumbzoomAmazonSCB0060M90VC103.81In StockRuland103.8 @ 1
thumbzoomZoroG8330673111.761In Stock10Ruland0.76111.76 @ 1
thumbzoomRulandFCMR38-16-12-A116.571In StockRuland0.2919116.57 @ 1
Grainger30UU36123.01In Stock15RULAND MANUFACTURING123.0 @ 1
AmazonTPB0060M90VC133.021In Stock5Ruland Manufacturing133.02 @ 1
thumbzoomsustainablesupply.comC1644877134.061In StockRuland Manufacturing0.76134.06 @ 1
RS Delivers186-4118146.4121In StockRuland146.412 @ 1
motionindustries.com04804783156.591In StockRuland Manufacturing Co Inc156.59 @ 1
thumbzoomDigi-Key13602890171.1110Ruland Manufacturing171.1 @ 1
thumbzoomRaptor SuppliesAF9UKU197.1675811In StockRULAND MANUFACTURING197.167581 @ 1
