- mpn1241.6923.1121000
- brandname: Schurter
- manufacturername: Schurter

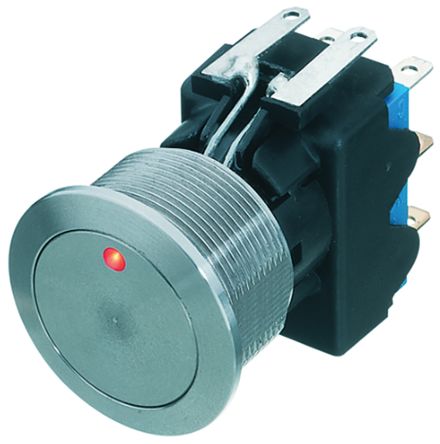

SCHURTER 1241.6923.1121000 MSM19 DP PI SF 5 A @125VAC RD (10 pieces)
- PartNumber: 1241.6923.1121000-SCHURTER
- Model: 1241.6923.1121000-SCHURTER
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: SCHURTER
- Label: SCHURTER
Attributes
| Key | Value |
|---|
| Actuator Color | Silver |
| Actuator Colour | Red |
| Actuator Shape | Round |
| Actuator Type | Round, Button, Flush, B. |
| Base Material | Stainless Steel |
| Body Style | Round |
| Brand | Schurter |
| Circuit | DPDT |
| Color - Actuator/Cap | Silver |
| Contact AC Voltage Rati. | 250V |
| Contact Configuration | Double Pole Double Thro. |
| Contact Current Rating | 3 A, 5 A |
| Contact DC Voltage Rati. | 125V |
| Contact Form | DPDT |
| Contact Material | Silver |
| Current Rating | 5 A |
| Current Rating (Amps) | 5A (AC) |
| Dimensions, Cutout, Inc. | 19.1 Dia. mm |
| Electrical Life | 200,000 Cycles |
| Family Name | Metal Line Switches Fam. |
| Features | - |
| Illuminated | Yes |
| Illumination | Illuminated |
| Illumination Color | Red |
| Illumination Type, Color | LED, Red |
| Illumination Voltage (N. | 1.9 VDC |
| Ingress Protection | IP40 |
| IP Rating | IP40, IP40, IP67 |
| Lamp Voltage | 1.9 VDC |
| LED Colour | LED Colour |
| Mechanical Life | 1,500,000 Cycles |
| Mfr | Schurter Inc. |
| Mounting Hole Size | 19 mm |
| Mounting Type | Panel Mount, Front, Pan. |
| Operating Temperature | -25?C ~ 85?C |
| Operation | On (Mom) |
| Panel Cut Out Diameter | Panel Cut Out Diameter |
| Panel Cut Out Size | 19.1 (Dia.)mm |
| Panel Cutout Dimensions | Circular - 19.10mm Dia |
| Part Status | Active |
| Series | MSM DP 19 Series |
| Special Features | Point Illuminated |
| Standards | IP 67 |
| Stock | Stock |
| Switch Function | On-Mom |
| Switch Operation | Momentary |
| Temperature Rating | -25 to +85 C |
| Terminal Type | Tab |
| Termination | QC Tabs |
| Termination Style | Quick Connect - 0.110" . |
| Type | Push Button, Illuminate. |
| Voltage Rating | 125 V dc, 250 V ac, 125. |
| Voltage Rating - AC | 125 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Digi-Key | 486-1419-ND | 32.36 | 1 | In Stock | | Schurter Inc. | | 32.36 @ 1 |
| us.rs-online.com | 70020862 | 37.55 | 20 | In Stock | | Schurter | | 37.55 @ 20 |
 | RS Delivers | 867-4022 | 40.6524 | 10 | In Stock | | Schurter | | 40.6524 @ 10 |
