- mpnEH740
- brandname: US Motors
- manufacturername: US Motors

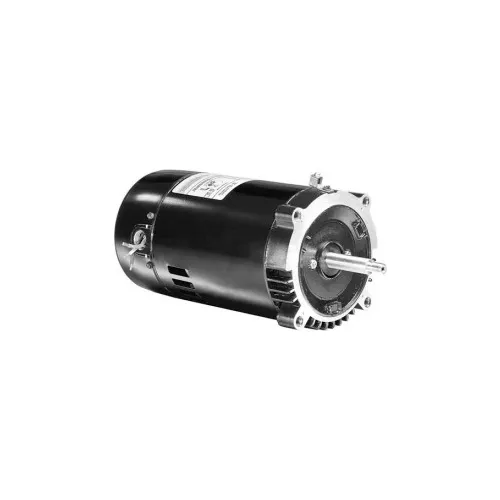

US Motors EH740 3 hp 56J Frame C-Face 230V Pool and Spa Motor
- Brand: US Motors
- Model: EH740
- PackageQuantity: 1
- Binding: Lawn & Patio
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| Ambient Temperature | 50 Degrees C |
| Bearings | Ball |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Enclosure | Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 44.00 |
| Finish | Unfinished |
| Frame | 56C |
| Full Load Amps | 9.6/9.4/4.7 |
| Gross Weight | 39 lbs |
| Hertz | 50, 60 |
| HP | 3 |
| Hz | 60, 50/60 |
| Ins. Class | B |
| Insulation Class | B |
| Item | Pool and Spa Pump Motor |
| Length Less Shaft | 10 13/16 in |
| Manufacturer | US Motors (Nidec) |
| Manufacturer Model # | P063GFF4532014J |
| Max. Ambient Temp. | 50 Degrees C |
| Max. SF Amps | 9.6 |
| Maximum Ambient Tempera. | 50? C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Flange Material | Aluminum |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Pool and Spa Pump |
| Motor Thermal Protection | None |
| Mounting | Footless, Face |
| Nameplate RPM | 3,450 |
| No. of Speeds | 1 |
| Number of Speeds | 1 |
| Part Number | EH740 |
| Phase | 3, Three |
| Product Type | Three Phase, Pool and S. |
| Replacement For | Mfr. No. H740 |
| Rotation | Reversible |
| RPM | 3450 |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.25 |
| Shaft | Keyed |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/16 in |
| Shaft Material | Stainless Steel |
| Ship Weight | 40 lbs. |
| Speed (RPM) | 3450 |
| Standards | CSA (156060), UL (E2292. |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208-230/460V AC, 208V, . |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460 |
| Weight | 40 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB466079 | 490.95 | 1 | In Stock | | US Motors | | 490.95 @ 1 |
 | emotorpro.com | EH740 | 506.55 | 1 | In Stock | | U.S. Motors | 40.0 | 506.55 @ 1 |
 | Zoro | G0201506 | 529.15 | 1 | In Stock | | U.S. Motors | 39.0 | 529.15 @ 1 |
 | National Supply Network | B466079 | 548.94 | 1 | In Stock | | US MOTORS | | 548.94 @ 1 |
 | motorsandcontrol.com | EH740 | 597.36 | 1 | In Stock | | US Motors (Nidec) | 44.0 | 597.36 @ 1 |
| Pool Supply World | 318246 | 599.99 | 1 | In Stock | | U.S. Motors Emerson | | 599.99 @ 1 |
 | Galco | EH740-USM | 613.11 | 1 | In Stock | | US Motors | 39.0 | 613.11 @ 1 |
| motionindustries.com | 04385632 | 782.83 | 1 | In Stock | | US Motors (Nidec) | | 782.83 @ 1 |
