WEG 00512ET3E215T-W22

B00BC85OE6

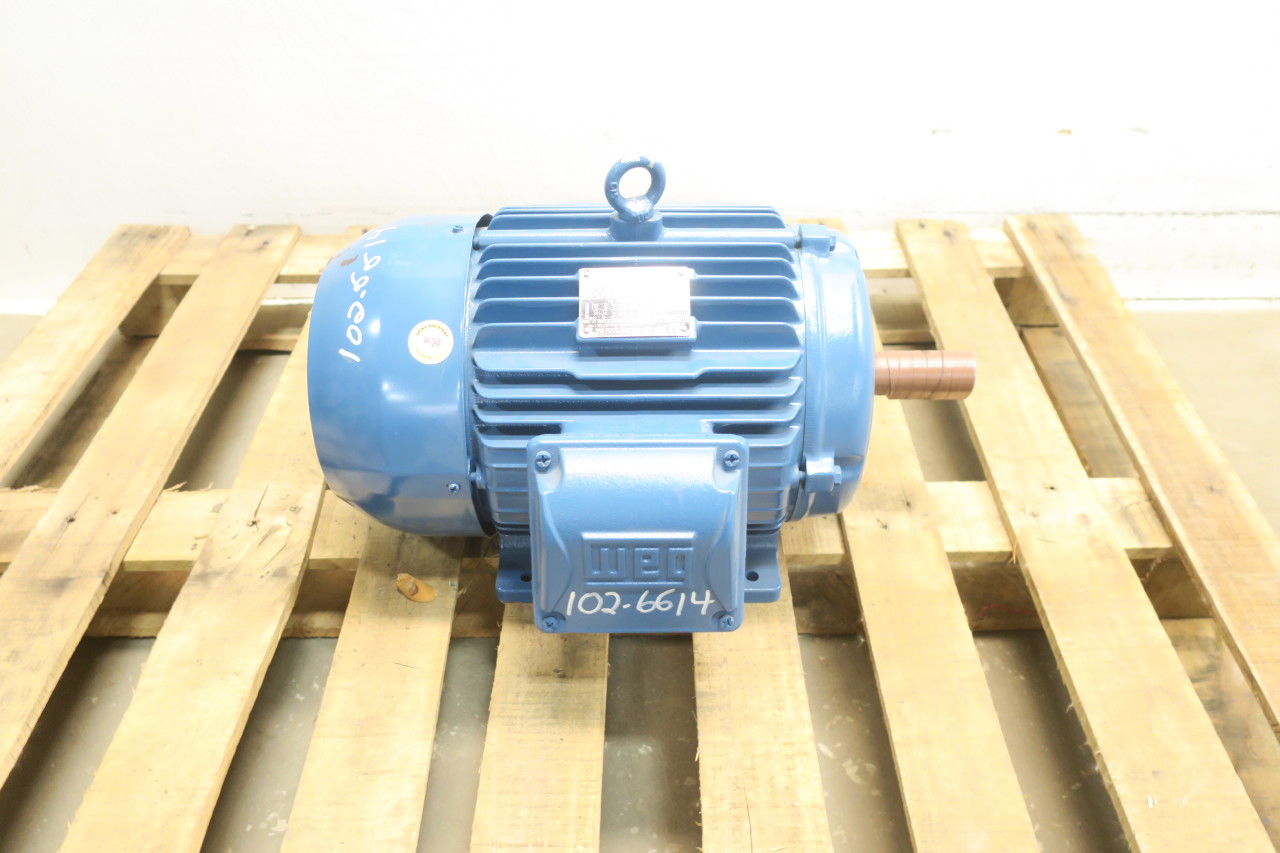

WEG Mtr,3 Ph,5 HP,1160,230/460V,Eff 89.5 (00512ET3E215T-W22)

WEG Mtr,3 Ph,5 HP,1160,230/460V,Eff 89.5 (00512ET3E215T-W22)zoom

Attributes

Key Value
Amperage Rating15.1 to 13.7/6.83 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
CC NumberCC029A
ClassificationThree Phase
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Country of Origin (subj.Multiple
Degree of ProtectionIP55
Description:MOTOR 5HP 6P 213/5T WFF2
Dimensions19.517 in L
Drive End Flange TypeStandard
DutyContinuous
Duty CycleContinuous
Efficiency %89.5 %
EnclosureTEFC, IC411-TEFC, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight179.00
Family SeriesWEG Electric Motors
FL Amps6.83
FL Efficiency89.5
FlangesWithout
Footnotes2
FRAME213/5T
Frame215T, 213T, 213/5T
Frame MaterialCast Iron
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps6.83
Full Load Amps @ 50Hz7.6, 7.8, 8.1
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Hertz60
Horsepower5 hp
HP5
HP @ 50Hz5
Hz60
Ins. ClassF
Insulation ClassClass F
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number00512ET3E215T-W22
Kw3.7
Length Less Shaft16 1/8 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00512ET3E215T-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:00512ET3E215T-W22
Model11456699
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTEFC
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeFOOT
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFooted, Foot Mount
Nameplate RPM1200
NEMA DesignB
NEMA Frame215T
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency89.5
Nominal Voltage208 VAC
Number of Poles4
Number of Speeds1
Output Rating25 HP
Overall Length19.517
Part Number00512ET3E215T-W22
Phase3, 3 ph, Three
Product TypeGeneral Purpose
RotationCW/CCW
RPM1,200 RPM, 1200, 1170
RPM @ 50Hz960
RPM Group1101-1200
RPM Range1,101-1,200
Service Factor1.25
Service Factor @ 50Hz1
Shaft Dia.1 3/8 in
Shaft Length3 3/8 in
Shaft Size1-3/8 in Dia x 3-3/8 in.
Speed (RPM)1200
StandardNEMA MG-1
StandardsCE, CSA, NOM, UL
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Terminal BoxLeft position
UPC:7891327195790
Usable @ 200VNo
Usable @ 208VYes
Voltage575 V, 230/460V AC, 208.
VOLTAGE230/460
Voltage (AC)208 VAC
Voltage @ 50Hz380V AC, 400V AC, 415V .
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460
WEIGHT170
Weight171 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD596343679.01In StockWEG679.0 @ 1
thumbzoomelectricmotorwholesale.com00512ET3E215T-W22790.01In StockWEG171.0790.0 @ 1
AmazonTPB007ICPB8O975.61In Stock2WEG975.6 @ 1
thumbzoommotorsandcontrol.com00512ET3E215T-W22987.751In StockWEG Electric179.0987.75 @ 1
thumbzoomWalker Industrial00512ET3E215T-W22999.01In Stock17WEG999.0 @ 1
kscdirect.comWEG 00512ET3E215T-W221022.941In StockWEG ELECTRIC CORP1022.94 @ 1
thumbzoomMRO Supply13121961065.61In StockWEG1065.6 @ 1
thumbzoomZoroG07035161109.016Weg170.01109.0 @ 1
thumbzoomGalco00512ET3E215T-W22-WEG1116.341In StockWEG Electric1116.34 @ 1
thumbzoomindustrialrefrigerationparts.com00512ET3E215T-W221148.971In StockWEG1148.97 @ 1
thumbzoomDealers Electric00512ET3E215T-W221207.821In StockWeg200.01207.82 @ 1
thumbzoomvfds.com00512ET3E215T-W221332.01In StockWEG1332.0 @ 1
thumbzoomPurvis00512ET3E215T-W221353.321In StockWEG1353.32 @ 1
Airline HydraulicsWEG 00512ET3E215T-W221373.21In StockWEG1373.2 @ 1
thumbzoomNational Supply NetworkB8735831683.991In StockWeg Electric Motors1683.99 @ 1
thumbzoomRaptor SuppliesAE7TVF1900.1207161In StockWEG1900.120716 @ 1
