- mpnTDG534A04000
- brandname: Widia
- manufacturername: Widia

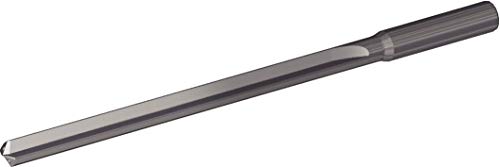

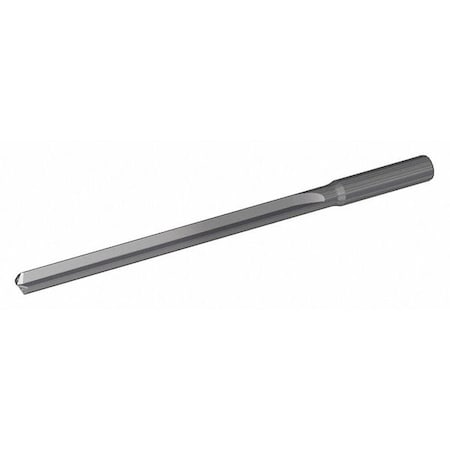

WIDIA TDG534A04000 TOP Drill G TDG534A Drill, 4 mm Dia, 130? Cutting Angle, Right Hand Cut, Carbide, Uncoated
- Brand: WIDIA
- PartNumber: 4157375
- Model: 4157375
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: WIDIA Products Group
- Label: WIDIA Products Group
Attributes
| Key | Value |
|---|
| Aircraft Drill | No |
| Application | Metalworking |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Country of Origin (subj. | Germany |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1575 |
| Depth x Dia. Ratio | 12xD |
| Depth:Dia. Ratio | 12xD |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black and Gold Oxide |
| Drill Bit Grouping | Drill Bit, Individual |
| Drill Bit Material | Carbide |
| Drill Bit Point Angle | 130 Degrees, 130 Degre. |
| Drill Bit Point Type | 4 Facet Point |
| Drill Bit Size | 4.00 mm |
| Drill Diameter Tolerance | K7 |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.9330 mm |
| Drilling Depth | 56.00mm |
| Finish | Black and Gold Oxide |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 69.00 mm |
| Flute Type | Straight |
| Grade | WN10HD |
| Helix Angle | 0 Degrees, 0 Degrees |
| Item | Jobber Length Drill Bit. |
| List Number | TDG534 |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machin. | WN10HD |
| Maximum Drilling Depth | 56.00mm, 56.00 mm |
| Measurement System | Metric |
| Number of Coolant Holes | 2 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 107.00 mm |
| Point Type | Split Point Chisel Edge |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, N |
| Series | TDG534 |
| Shank Dia. | 6.00 mm |
| Shank Length | 36.00mm, 36.00 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | ANSI, DIN 6535, ISO, AN. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2528823 | 163.12 | 1 | In Stock | | Widia | 0.05 | 163.12 @ 1 |
| grainger.ca | WIDTDG534A04000 | 277.33233132 | 1 | In Stock | | WIDIA | 0.053 | 277.33233132 @ 1 |
