Cle-line C20438

B00JA57ICO

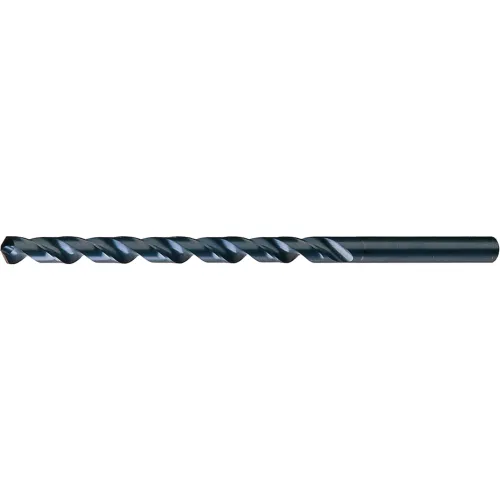

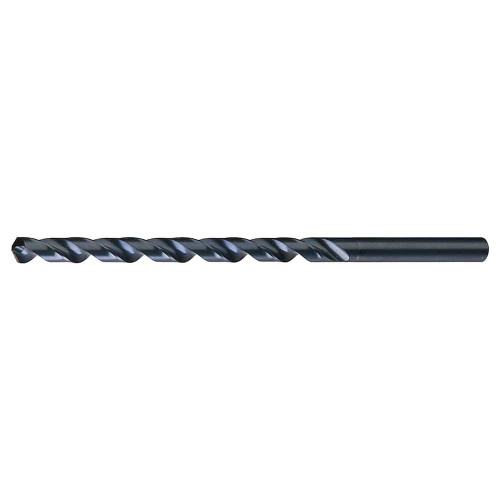

Cle-Line C20438 Extra Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 5/32" Drill Diameter

Cle-Line C20438 Extra Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 5/32" Drill Diameterzoom

Attributes

Key Value
Catalog PageN/A
Coolant FedNon-Coolant Through
Country of OriginUSA
Cutting DirectionRight Hand
Decimal Equivalent0.1562
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.1562"
Diameter (Fraction)5/32"
Drill Bit Point Angle118 ?, 118 Degrees
Drill Bit Point TypeNotched Point
Drill Bit Size5/32 in
Drill ConstructionGeneral Purpose
Drill Diameter Tolerance+0.0000 in /-0.0007 in
Drill Length ClassExtra Long
Drill Point Length0.0469 in
Drill Size SystemFractional
Drill StyleExtra Length Drill
Finish - MachiningBlack Oxide
Flute Length9 in, 9.0000"
Flute Length (Metric)228.60mm
Flute TypeSpiral
Hand of CutRight
Hand of SpiralRight
Helix Angle21? to 34?
ItemExtra Long Drill Bit
Item?50AT50
MaterialHSS
Material - MachiningHigh Speed Steel
Maximum Drilling Depth5/8 in
Measurement SystemFractional Inch
Mfr. Model?C20438
Number of Flutes2
Overall Length12 in, 12.0000"
Overall Length (Metric)304.80mm
Point Angle118?
Point StyleNotched
Primary Material Applic.Cast Iron, Steel, Cast .
Primary Material Applic.K; P
Shank ConfigurationStraight
Shank Dia.5/32 in
Shank Length3.0000", 3 in
Shank Length (Metric)76.20mm
Shank Size0.1563"
Shank Size (Metric)3.97mm
Shank Type - MachiningStraight
SKUC20438
Spiral DirectionRight Hand
StandardsASME B94.11M
Surface ConditionSteam Oxide
Tool Size5/32"
UNSPSC27112801
UPC6.97E+11

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGlobal IndustrialWBB254346413.51In StockCle-Line13.5 @ 1
thumbzoomMegadepotC2043813.681In StockCle-Line13.68 @ 1
thumbzoomheavydutydepot.comC2043813.688In StockCle-Line13.68 @ 8
thumbzoomZoroG495876814.091In StockCle-Line0.0614.09 @ 1
thumbzoomusmegastore.comC2043814.811In StockCle-Line14.81 @ 1
AmazonSCB00JA57ICO23.051In StockCle-line23.05 @ 1
Grainger50AT5023.11In StockCLE-LINE23.1 @ 1
thumbzoomimsbolt.comC2043826.251In StockCLE-LINE26.25 @ 1
