Cle-line C20583

B00JA5DBX4

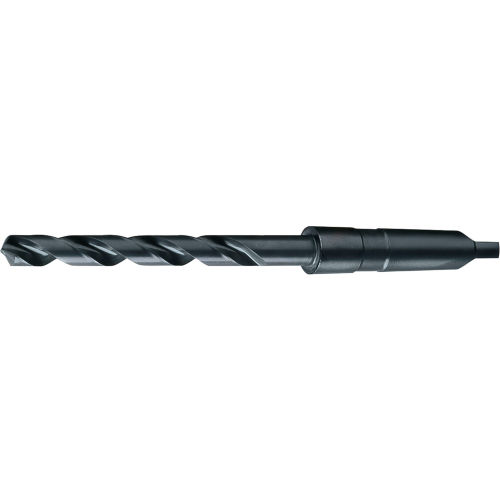

Cle-Line C20583 General Purpose Taper Shank Drill, High Speed Steel, Steam Oxide Finish, No.4 Morse Taper Shank, 118-Degree Radial Point, 1 19/64" Drill Diameter

Cle-Line C20583 General Purpose Taper Shank Drill, High Speed Steel, Steam Oxide Finish, No.4 Morse Taper Shank, 118-Degree Radial Point, 1 19/64" Drill Diameterzoom

Attributes

Key Value
Applicable MaterialsAlloy Steel, Carbon Ste.
ApplicationGeneral Purpose Drilling
Coolant FedNon-Coolant Through
Cutting Depth8-5/8 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Decimal Equivalent1.2969
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter1.2969"
Diameter (Fraction)1-19/64"
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishBlack Oxide
Drill Bit Point Angle118 Degrees
Drill Bit Point TypeConventional Point
Drill Bit Size1 19/64 in
Drill ConstructionGeneral Purpose
Drill Diameter Measurem.Imperial
Drill Diameter Tolerance+0.0000 in /-0.0015 in
Drill Size - Decimal In.1.2969 in
Drill Size - Fraction1-19/64 in
Drill Size SystemFractional
Drill StyleTaper Shank Drill
FinishBlack Oxide
Finish - MachiningBlack Oxide
Flute Length8-5/8 in, 8.6250", 8 5/.
Flute Length (Metric)219.07mm
Flute TypeSpiral
Hand of CutRight
Hand of SpiralRight
ItemTaper Shank Drill Bit
MaterialHSS
Maximum Drilling Depth8 5/8 in
Number of Flutes2
Overall Length14 1/4 in, 14-1/4 in, 1.
Overall Length (Metric)361.95mm
Point Angle118 deg, 118?
Point StyleRadial
Point TypeRadial
Primary Material Applic.K, P
Series1894
Shank Configuration#4 Morse Taper
Shank Length5.6250"
Shank Length (Metric)142.88mm
Shank Taper Designation#4 Morse Taper
Shank Type - MachiningTaper
StandardsASME B94.11M
Style1894
Surface ConditionSteam Oxide
Taper Shank SizeMT4
Through Coolant (Yes/No)No
Tool Size1-19/64"
TypeGeneral Purpose Regular.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG4953490132.311In Stock10Cle-Line3.36132.31 @ 1
thumbzoomMegadepotC20583133.21In StockCle-Line133.2 @ 1
thumbzoomheavydutydepot.comC20583133.21In StockCle-Line133.2 @ 1
thumbzoomMRO Supply6123897136.491In StockCle-Line136.49 @ 1
thumbzoomGlobal IndustrialWBB2544566136.951In StockCle-Line136.95 @ 1
thumbzoomusmegastore.comC20583154.11In StockCle-Line154.1 @ 1
