- mpnC20989
- brandname: Cle-Line
- manufacturername: Cle-Line

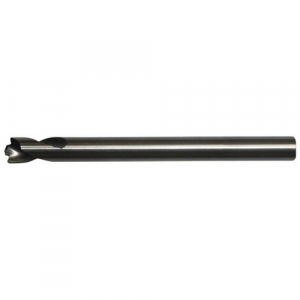

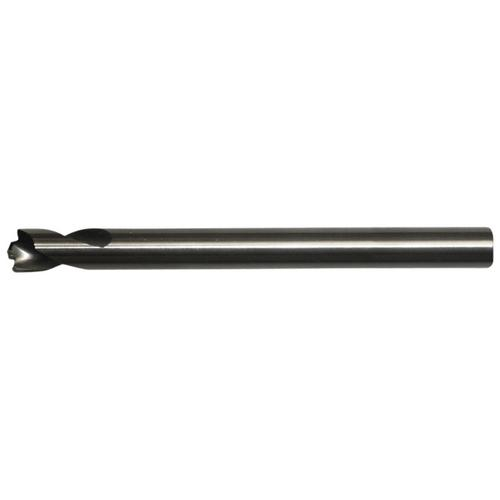

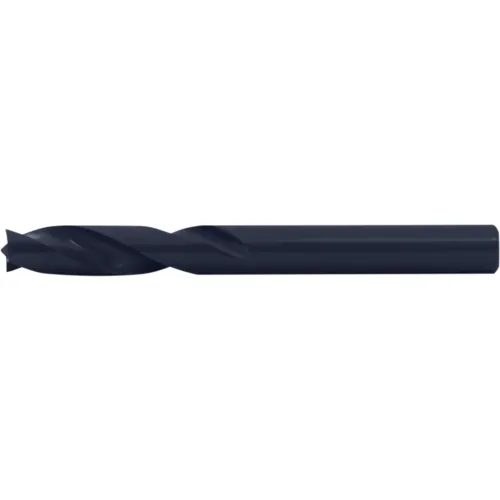

Cle-Line C20989 Welding Point Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, 8.00 mm Drill Diameter (Pack of 6)
- Brand: Cle-line
- PartNumber: C20989
- Model: C20989
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Sheet Metal |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 37 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8 |
| Decimal Equivalent | 0.315 |
| Depth:Dia. Ratio | 4xD |
| Diameter | 8 mm, 0.3150" |
| Diameter (Metric) | 8.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 8.00 mm |
| Drill Construction | Welding Point Drills |
| Drill Size System | Metric |
| Drill Style | Other |
| Finish | Steam Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 37 mm, 1.4567", 37.00 mm |
| Flute Length (Metric) | 37.00mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Impact Rated | No |
| Item | Spot Weld Drill Bit |
| Material | M42 HSS-Co 8, HSS-CO |
| Material - Machining | Cobalt |
| Material Grade - Machin. | Heavy Duty |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length | 79.00 mm, 3.1102", 79 mm |
| Overall Length (Metric) | 79.00mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Primary Material Applic. | P |
| Series | 2195 |
| Shank Configuration | Straight |
| Shank Dia. | 8.00 mm |
| Shank Length | 42.00 mm, 1.6535" |
| Shank Length (Metric) | 42.00mm |
| Shank Size | 8 mm, 0.3150" |
| Shank Size (Metric) | 8.00mm |
| Shank Type | Straight |
| Spiral Direction | Right Hand |
| Style | 2195 |
| Surface Condition | Steam Oxide |
| Tool Size | 8mm, 8.00mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C20989 | 9.46 | 1 | 6 | | Cle-Line | | 9.46 @ 6 |
 | heavydutydepot.com | C20989 | 9.46 | 11 | 6 | | Cle-Line | | 9.46 @ 11 |
 | Zoro | G4938860 | 10.43 | 6 | 6 | | Cle-Line | 0.09 | 10.43 @ 6 |
 | Global Industrial | WBB2545038 | 10.75 | 6 | 6 | | Cle-Line | | 10.75 @ 6 |
 | usmegastore.com | C20989 | 11.29 | 1 | 6 | | Cle-Line | | 11.29 @ 6 |
 | MRO Supply | 6124049 | 12.78 | 3 | 6 | | Cle-Line | | 12.78 @ 6 |
