CLEVELAND C15268

mpnC15268
brandname: CLEVELAND
manufacturername: CLEVELAND

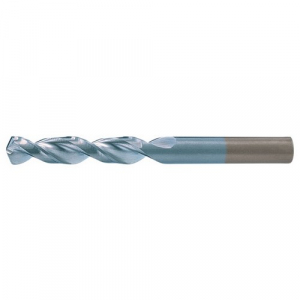

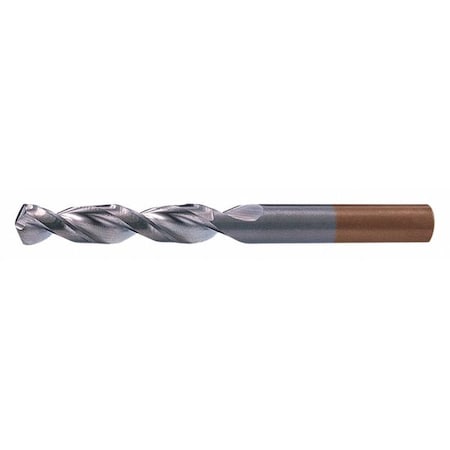

Cleveland 2175N Cobalt Steel Jobbers' Length Drill Bit, TiCN Coated, Round Shank, 135 Degree Notch Point, 11/32" (Pack of 5)

Cleveland 2175N Cobalt Steel Jobbers

zoom

Brand: CLEVELAND
PartNumber: C15268
Model: C15268
Size: 11/32"
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Chilled Cast Iron, High.
Bit Dia.	11/32"
Construction	Wide Land Parabolic
Cutting Depth	5XD
Cutting Direction	Right Hand
Cutting Edge Material	M42 HSS-Co 8
Decimal Equivalent	0.3438" / 8.73mm, 0.3438
Depth x Dia. Ratio	10xD
Depth:Dia. Ratio	10xD
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	TiCN
Drill Bit Grouping	Drill Bit
Drill Bit Material	Cobalt
Drill Bit Point Angle	135 Degrees
Drill Bit Size	11/32 in
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0010 in
Drill Length Class	Screw Machine Length
Drill Point Length	0.0712 in
Drill Size - Decimal In.	0.3438 in
Drill Size - Fraction	11/32 in
Drilling Length	1.688"
Finish	TiCN Coated
Flute Length	1 11/16 in, 1-11/16 in
Flute Type	Parabolic, Right Spiral.
Hand of Spiral Cut	RHS / RHC
Item	Screw Machine Drill Bit
Length of Flute	1.6875" / 42.86mm
List Style:	2175-TC
Material	M42 HSS-Co 8, HSS-CO 8%.
Maximum Drilling Depth	1 11/16 in
Number of Flutes	2
Overall Length	3.0000" / 76.20mm, 3 in
Point	135? Split
Point Angle	135 deg
Point Type	Split
Series	2175-TC
Shank	Straight
Shank Dia.	11/32 in
Shank Length	1 5/16 in
Shank Size	11/32", 0.3438" / 8.73m.
Shank Type	Straight
Sizes Included	11/32"
Style	2175-TC
Surface Condition	TiCN
Tool Size	11/32"
Type	High Performance

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6111291	19.98	2	5		Cleveland		19.98 @ 5
	Megadepot	C15268	21.04	1	5		Cleveland		21.04 @ 5
	usmegastore.com	C15268	24.2	1	5		Cleveland		24.2 @ 5
	sustainablesupply.com	C2975376	25.69	1	5		Cleveland	0.07	25.69 @ 5
	Zoro	G3004141	29.0	1	8		Cleveland	0.07	29.0 @ 5
	National Supply Network	75910828	38.908	10	5		Cleveland		38.908 @ 10
	Amazon	B003Z0BWZO	108.04	1	5		Cleveland Twist Drill		108.04 @ 5
