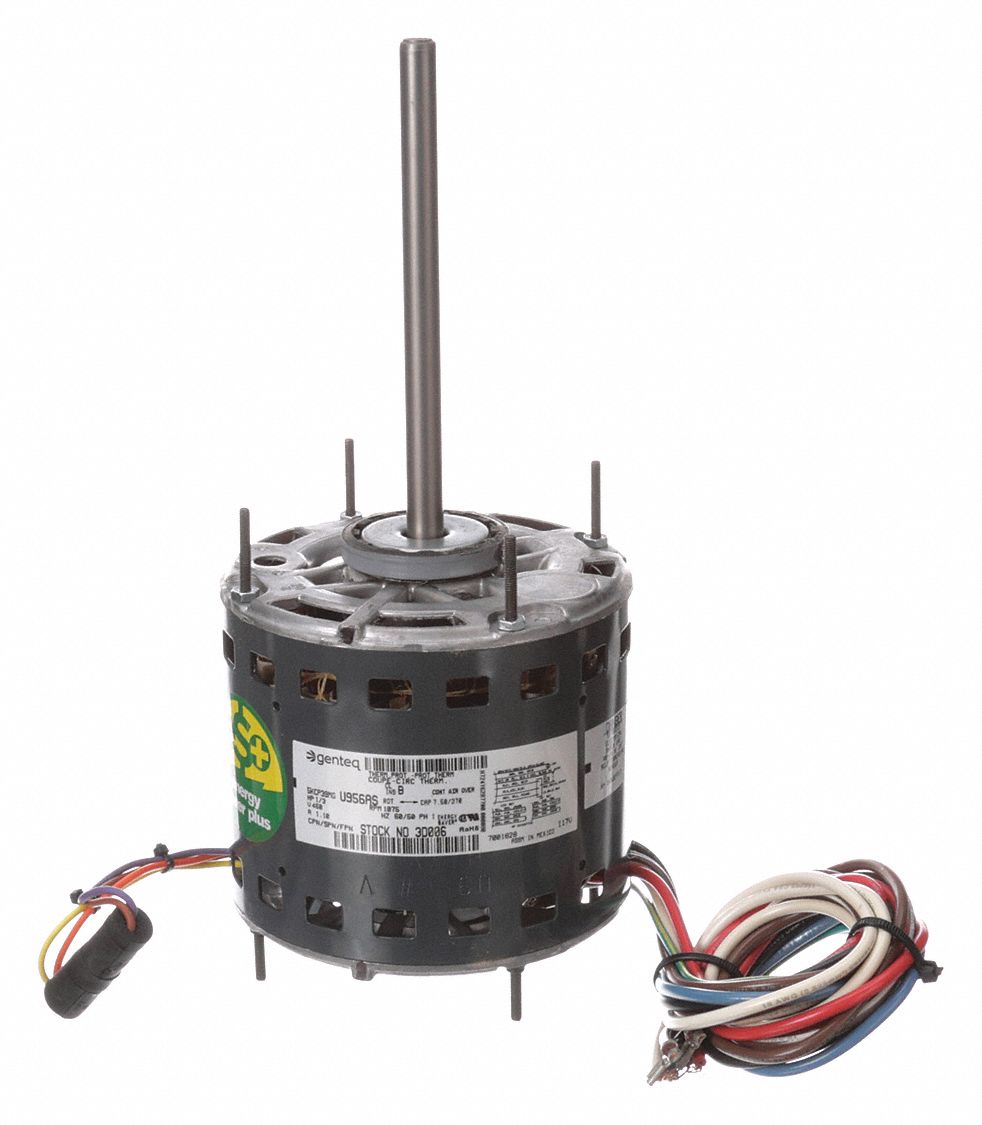

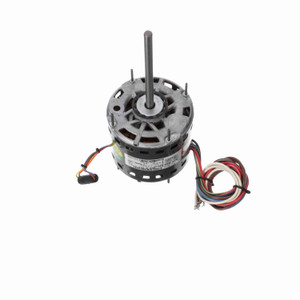

Genteq 3D006

mpn3D006
brandname: GENTEQ
manufacturername: GENTEQ

Motor, PSC, 1/3 HP, 1075 RPM, 460V, 48, OAO

Brand: Genteq
PartNumber: 3D006
Model: 3D006
PackageQuantity: 1
Manufacturer: GENTEQ
Label: GENTEQ

Attributes

Key	Value
Amps	1.10
Application	Blowers, Fans and Air C.
Body Dia.	5 5/8 in
Bolt Circle Dia.	5 3/16 in
Brand	Genteq
C-Dimension	12.39 (in.)
Capacitor Required	Included
Catalog Number	3D006
CE	N
Country of Origin (subj.	Mexico
CSA	Y
Current Stock	31
DE Bearing Type	Ball
DEM Reference	3D006
Duty	Continuous Air Over, Co.
Duty Cycle	Continuous
Electrical Type	Permanent Split Capacit.
Enclosure Type	Open Air Over
Extended Thru-Bolts	Yes
Frame	48
Frame Material	Rolled Steel
Frame Type	48
Frequency	60
Full Load Amps	1.10
HP	1/3
Hz	60 Hz
Includes	Resilient Mounting Ring
Ins. Class	B
Insulation Class	B
International Shipping	No
IP Code	-
Item	Direct Drive Blower Mot.
KVA Code	-
Lead Length	30 in
Length Less Shaft	5 13/16 in
Material	HAWA
Max Ambient	40?C
Max. Ambient Temp.	40 Degrees C
Motor Application	HVAC/R
Motor Bearings	Ball
Motor Design	Permanent Split Capacit.
Motor Enclosure Design	Open Air-Over
Motor Frame Material	Steel
Motor Mounting Position	All Angle
Motor Mounting Type	Band
Motor Orientation	Any
Motor Service Factor	1
Motor Shaft Design	Flat
Motor Shaft Rotation	CW/CCW
Motor Sub Application	Direct Drive Fan/Blower
Motor Thermal Protection	Auto
Mounting Holes	(4) #8-32
Mounting Stud Length	1/16 in
Mounting Stud Location	Both Ends
Mounting Stud Pattern	3-5/8 in x 3-5/8 in
Mounting Type	Round Belly Band
Mpn	3D006
Nameplate RPM	1,075
No. of Speeds	3
Nominal Efficiency	0.67 %
Number of Shafts	1
ODE Bearing Type	Ball
Overall Length	12 3/8 in
Phase	1, Single
Product Category	HVAC/R Motors > Fan an.
Resilient Ring Dia.	2 1/4 in
Ring to Ring Center	5 5/8 in
Rotation	Reversible
RPM (Nameplate)	1075
RPM (Number of Poles)	6 (901 RPM to 1200 RPM)
RPM Range	1,001-1,100
Service Factor	1
Shaft Dia.	1/2 in
Shaft Diameter	1/2 (in.)
Shaft Extension	6.50 (in.)
Shaft Length	6 1/2 in
Shaft Type	Flat
SKU	ZO-G4285687
Speeds	3
Standards	CSA, UL (E46035)
Stud Quantity	4
Stud Size	#8-32
SubCategory	Motors/Ac Motors
Type of Overload Protec.	Thermally Protected
UL	Recognized
UPC	815585022251
Usable @ 200V	No
Usable @ 208V	No
Voltage	460V AC
Voltage Compatibility	200-230/440V AC, 200-23.
Volts	460
Weight	15 lb
