- mpnDDMMN24H7PNA101
- brandname: ITT CANNON
- manufacturername: ITT CANNON

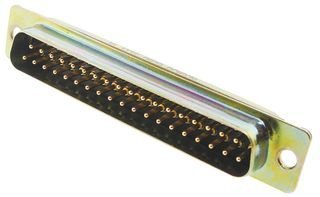

ITT CANNON DDMMN24H7PNA101 D-SUB COMB CONNECTOR, PLUG, DD-24W7
- PackageQuantity: 1
- Manufacturer: ITT CANNON
- Label: ITT CANNON
Attributes
| Key | Value |
|---|
| Backset Spacing | - |
| Base Product Number | DDMM |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0?in (1.27?m) |
| Contact Form | Machined |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 7.5A, 40A |
| Dielectric Material | Polycyclohexylenedimeth. |
| Features | Board Lock, Shielded |
| Flange Feature | Mating Side, Female Scr. |
| Ingress Protection | - |
| Material Flammability R. | UL94 V-0 |
| Mfr | ITT Cannon, LLC |
| Mounting Type | Panel Mount, Through Ho. |
| Number of Positions | 24 (17 + 7 Power) |
| Number of Rows | 2 |
| Operating Temperature | -55?C ~ 150?C |
| Package | Bulk |
| Product Status | Active |
| Series | 24308-Style, Combo D?, . |
| Shell Material, Finish | Steel, Yellow Chromate . |
| Shell Size, Connector L. | 5 (DD, D) - 24W7 |
| Termination | Solder |
| Voltage Rating | - |
| Wire Gauge | - |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Newark | 63P9564 | 74.34 | 1 | In Stock | | ITT CANNON | | 74.34 @ 1 |
| Digi-Key | 2585672 | 95.1 | 1 | In Stock | | ITT Cannon, LLC | | 95.1 @ 1 |
