Leeson 171846.60

B078XNF6W1

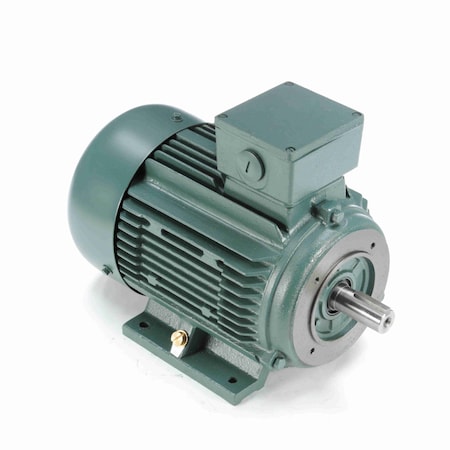

Leeson 5HP 1800RPM.184TZ.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID.GRAIN DRYER (171846.60)

Leeson 5HP 1800RPM.184TZ.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID.GRAIN DRYER (171846.60)zoom

Attributes

Key Value
Amperage Rating13.8 to 12.8/6.4 A
Amps13.8-12.8/6.4
Bearing TypeBall
BearingsBall
CategoryElectric Motor
CompositionCast Iron
Description:..5HP..1800RPM.184TZ.TE.
Dimensions17.1 in L x 264 mm H
Drive End Bearing Size6206
Drive End Bearing TypeBall
Duty CycleContinuous
Efficiency89.5%, 89.5
Efficiency %89.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialCast Iron
Enclosure TypeTEFC (Totally Enclosed .
Family SeriesLeeson Motors
Frame184TZ
Frame MaterialCast Iron
Frequency60, 50 Hz
Frequency Rating60/50 Hz
Gross Weight0 lbs
Horsepower5 hp
HP5
Hz60
Insulation ClassClass F, F
Inverter DutyYes - Constant 10:1/Var.
Item ConditionFACTORY NEW
Item Number171846.60
KW3.7
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number171846.60
MaterialCast Iron
Maximum Ambient Tempera.40? C
MFG Part #:171846.60
MountingRigid Base
mountingRigid Base
Mounting TypeFoot Mount, Rigid Base
NEMA Frame184TZ
Net Weight0 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6205
Opp. Drive End Bearing .Ball
Overall Length17.10"
Package Quantity1
Phase3, 3 ph
Product TypeThree Phase
RotationReversible
RPM1760, 1700 - 1800, 1,76.
Service Factor1.15
Shaft Diameter1.125, 1.125"
Shaft Length3.755", 3.755
Shaft Size1.125 in Dia x 3.755 in.
Ship Weight121 lbs.
Speed1760 rpm
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720053614
Voltage208-230/460
Voltage (AC)208 VAC, 230 VAC, 460 V.
Volts208/230/460, 208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB078XNF6W1843.031In Stock5Leeson843.03 @ 1
thumbzoomMRO Supply2834406852.71In StockLeeson852.7 @ 1
thumbzoomZoroG24976131061.991In StockLeeson1061.99 @ 1
us.rs-online.com733970061191.41In StockLeeson1191.4 @ 1
thumbzoomGalco171846.60-LEES1223.61In StockLeeson1223.6 @ 1
thumbzoomemotorpro.com171846.601229.641In StockLeeson121.01229.64 @ 1
thumbzoomDealers Electric171846.601264.8116Leeson121.01264.81 @ 1
thumbzoomWalker Industrial171846-601325.571In Stock17Leeson1325.57 @ 1
kscdirect.comLEE 171846.601436.241In StockLEESON ELECTRIC CORPORATION1436.24 @ 1
