Marathon Electric GT2409

B00BFT4NDA

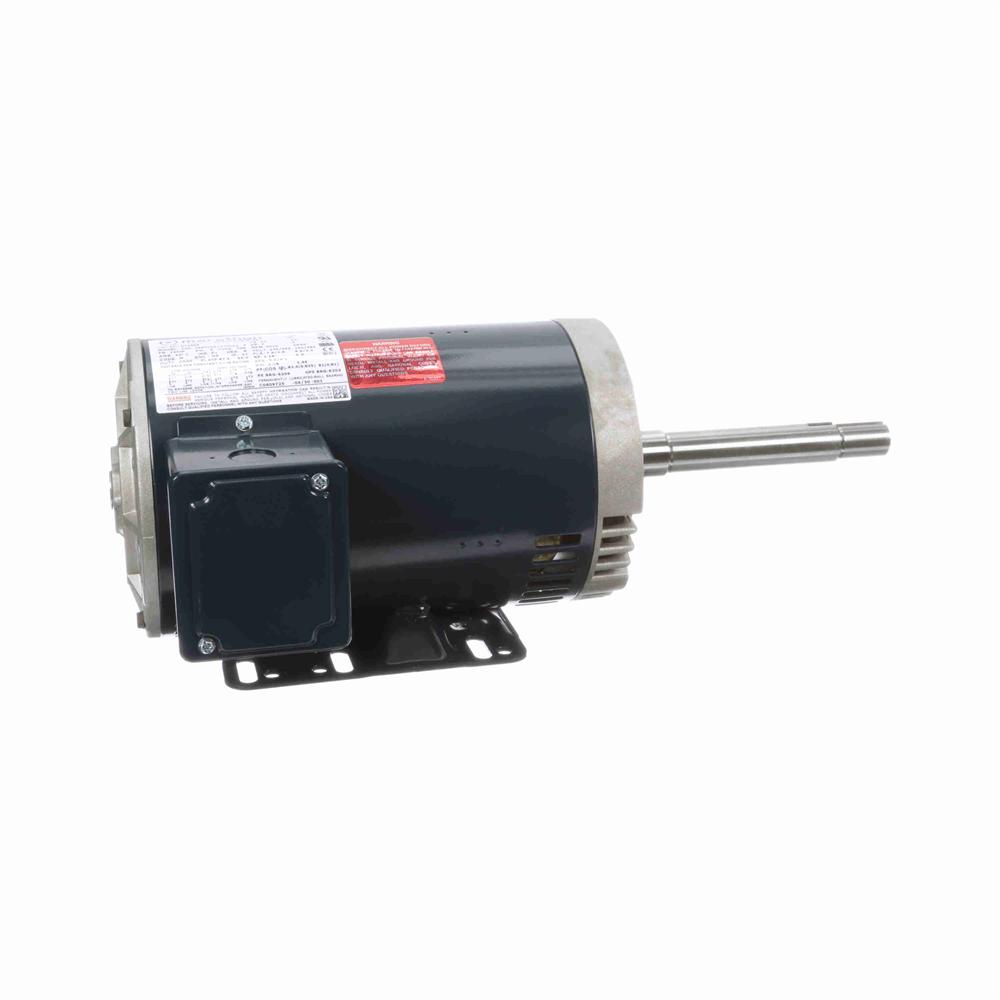

Marathon GT2409 145JP Frame 145TTDR16301 TEFC Closed Coupled Pump Motor, 3 Phase, C-Face, Ball Bearing, 3 hp, 3600 RPM, 1 Speed, 230/460 VAC

Marathon GT2409 145JP Frame 145TTDR16301 TEFC Closed Coupled Pump Motor, 3 Phase, C-Face, Ball Bearing, 3 hp, 3600 RPM, 1 Speed, 230/460 VACzoom

Attributes

Key Value
Amps7.6/3.8
ApprovalsCE, CSA, UR
Bearing TypeBall
BearingsBall
CompositionRolled Steel
Duty CycleContinuous
Efficiency0.875
Efficiency %87.5 %
EnclosureDrip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof)
Family SeriesMarathon Electric Motors
Frame145JP
Frequency60 Hz
Gross Weight0 lbs
Horsepower3 hp
HP3
Hz60
Insulation ClassF
Item NumberGT2409
Kilowatts2.2 kW
ManufacturerMarathon Electric
Manufacturer Model #145TTDR16301
Manufacturer Part Number145TTDR16301
Maximum Ambient Tempera.40? C
Motor Shell Length9.06"
MountingBase
Mounting OrientationHorizontal
Mounting TypeRigid
NEMA Frame145JP
Net Weight0 lbs
Number of Poles2
Number of Speeds1
Overall Length18.18", 18.18 "
Phase3
Product TypeThree Phase
RotationReversible
RPM3510, 3,510 RPM
Service Factor1.15
Shaft Diameter0.88 ", 7/8"
Shaft Length7.31"
Ship Weight47 lbs.
Voltage (AC)230 VAC, 460 VAC
Volts230, 460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomemotorpro.comGT2409582.41In StockMarathon47.0582.4 @ 1
thumbzoomGalcoGT2409-MARA766.060In StockMarathon Electric766.0 @ 60
