Marathon Electric GT1027

mpnGT1027
brandname: Marathon Electric
manufacturername: Marathon Electric

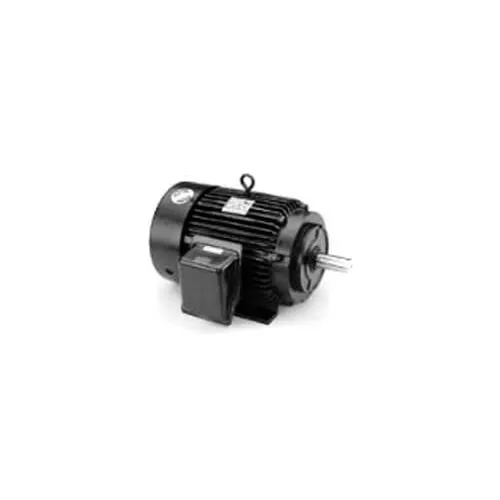

Marathon GT1027 284TS Frame 284TSTFCA6001 TEFC General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 25 hp, 3600 RPM, 1 Speed, 208-230/460 VAC

Marathon GT1027 284TS Frame 284TSTFCA6001 TEFC General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 25 hp, 3600 RPM, 1 Speed, 208-230/460 VAC

zoom

Brand: Marathon Electric
PartNumber: GT1027
Model: MGT1027
PackageQuantity: 1
Binding: Misc.
Manufacturer: Marathon Electric
Label: Marathon Electric

Attributes

Key	Value
Amps	57/28.5
Bearings	Ball
Category	Industrial Automation a.
CC Number	CC003A
Duty Cycle	Continuous
Efficiency	0.917
Enclosure Material	Iron
Enclosure Type	TEFC (Totally Enclosed .
For Use With/Related Pr.	-
Frame	284TS
Full Load Amps	60.0/30.0
Green Certification or .	NEMA Premium(R) Rated
HP	25
Hz	60
Includes	Conduit Box
Ins. Class	F
Insulation Class	F
Inverter Rated	Yes
Item	General Purpose Motor
Length Less Shaft	22 in
Manufacturer Model #	284TSTFCA6001
Manufacturers Warranty .	1 yr
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Mfr	Marathon Motors
Motor Application	General Application
Motor Bearings	Ball
Motor Design	3-Phase
Motor Efficiency Group	NEMA Premium Efficient
Motor Enclosure Design	Totally Enclosed Fan-Co.
Motor Frame Material	Cast Iron
Motor Mounting Position	Horizontal
Motor Mounting Type	Rigid Base
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
Motor Thermal Protection	None
Mounting	Base
Mounting Orientation	Horizontal
Nameplate RPM	3,555
NEMA Design	B
No. of Speeds	1
Nominal Efficiency	94.5 %
Number of Speeds	1
Overall Length	25 1/4 in, 28.82"
Package	Box
Part Status	Active
Phase	3, Three
Product Type	Three Phase
Rotation	Reversible
RPM	3555
Series	-
Service Factor	1.15
Shaft Dia.	1 5/8 in
Shaft Diameter	1-5/8"
Shaft Length	3 1/4 in, 3.25"
Ship Weight	510 lbs.
Standards	UL Recognized (E49747),.
Type	Motor
Usable @ 200V	No
Usable @ 208V	No
Voltage	230/460V AC
Volts	230, 460
Weight	264.00, 386 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	State Supply	BG3014P	1721.96	1	In Stock		Marathon	264.0	1721.96 @ 1
	emotorpro.com	GT1027	1925.94	1	In Stock		Marathon	510.0	1925.94 @ 1
	National Supply Network	B871506	1937.69	1	In Stock		MARATHON MOTORS		1937.69 @ 1
	Global Industrial	WBB871506	1942.0	1	In Stock		Marathon Motors		1942.0 @ 1
	grainger.ca	AOSGT1027	2569.8975945	1	In Stock		MARATHON MOTORS	510.0	2569.8975945 @ 1
	Digi-Key	15835042	2975.95	250	1		Marathon Motors		2975.95 @ 1
