Marathon Industries U763

B06XDGYLWB

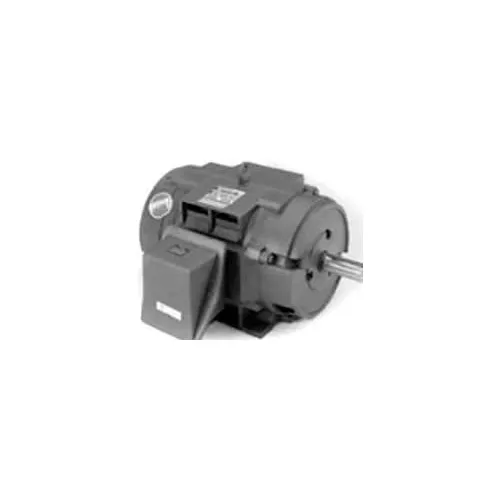

Marathon Motors PEM U763, 1800RPM, 7 1/2HP, 3PH, 208-230/460V, 213T FR, DP

Marathon Motors PEM U763, 1800RPM, 7 1/2HP, 3PH, 208-230/460V, 213T FR, DPzoom

Attributes

Key Value
Amps20.6-19.8/9.9
applications:Blowers and Machinery i.
BearingsBall
duty / condition type:Inverter Duty
Duty CycleContinuous
Efficiency0.91
EnclosureODP
Enclosure MaterialIron
Enclosure TypeODP (Open Dripproof)
enclosure type:DP (Drip Proof)
Frame213T
frame material:Cast Iron
frame size:213T
frequency rating:60 Hz
full load current:20.60
full load efficiency:91.00 %
HP7 1/2, 7-1/2
Hz60
Insulation ClassF
insulation class:F
ip rating:22
Manufacturer Model #213TTDC6026
Maximum Ambient Tempera.40? C
motor horsepower:7.50 hp, 7-1/2 hp
motor phase:3 ph
motor supply voltage:208-230/460 V
MountingBase
Mounting OrientationHorizontal
mounting type:Rigid Base
Number of Speeds1
Overall Length16.38"
overall length (c-dimen.16.38 in
Phase3
Product TypeThree Phase
RotationReversible
RPM1760, 1700 - 1800
Service Factor1.15
service factor:1.15
Shaft Diameter1-3/8"
shaft diameter:1.38 in
Shaft Length3.38"
Ship Weight160 lbs.
standards met:UL, CSA
synchronous rpm:1800 rpm
Voltage230/460
Volts208, 230, 460
weight:160 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialstores.comU763721.711In Stock10Marathon Motors721.71 @ 1
thumbzoomemotorpro.comU763749.481In StockMarathon160.0749.48 @ 1
thumbzoomSquare OneU763751.81In StockMARATHON751.8 @ 1
thumbzoomGlobal IndustrialWBB871342795.01In Stock17Marathon Motors795.0 @ 1
thumbzoomNational Supply NetworkB871342807.61In StockMARATHON MOTORS807.6 @ 1
thumbzoommotionindustries.com04727021854.021In StockMarathon Electric854.02 @ 1
ptacsolutions.comU763863.561In StockMarathon Motors863.56 @ 1
