Mersen MPDB69112

B00JLAZGXQ

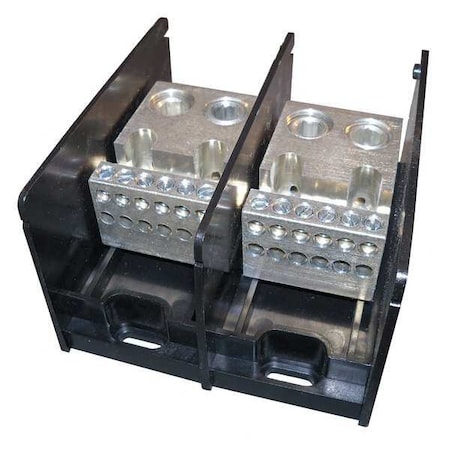

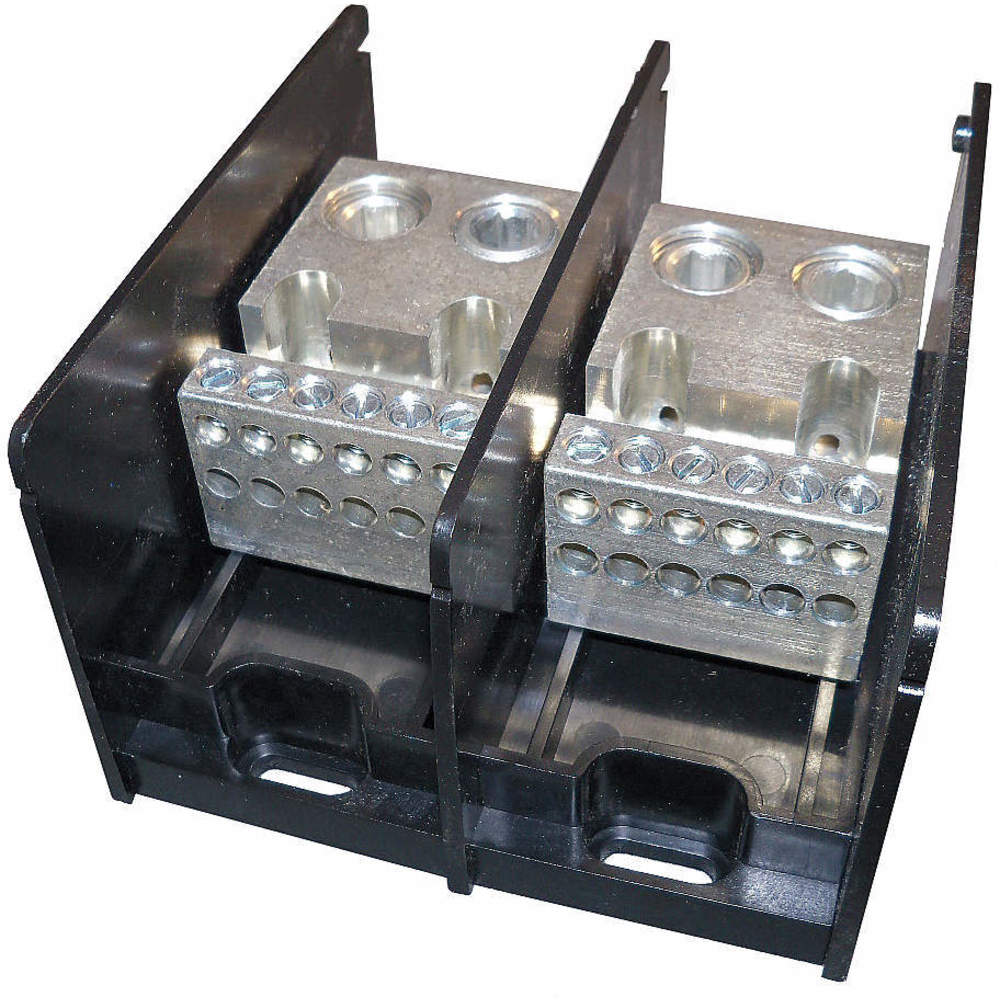

Pwr Dist Block, 760A, 2P, 4AWG-500 MCM, 600V

Pwr Dist Block, 760A, 2P, 4AWG-500 MCM, 600Vzoom

Attributes

Key Value
(2)x 500-4AWG & (12)x 4.Wire Gauge
(2P) Double PolePole
1000VVoltage (V)
3Case Quantity
3.55''Height (in)
5.31''Width (in)
5.7''Length (in)
760AAmperage
782001452513UPC
ApprovalsCSA, UL
Body/Insulating Materia.Material
BrandMersen
ColorBlack
CompositionGlass-Fill Polycarbonate
Current Rating760 A
Current Rating (AC)760 A
Depth3.55 in
Direct Screw MountMounting
Family SeriesMersen, formerly Ferraz.
For additional options .Notes
For Line Aluminum Wire .500 kcmil
For Line Aluminum Wire .4 AWG
For Line Copper Wire Si.500 kcmil
For Line Copper Wire Si.4 AWG
For Load Aluminum Wire .4 AWG
For Load Aluminum Wire .14 AWG
For Load Copper Wire Si.4 AWG
For Load Copper Wire Si.14 AWG
Gross Weight3.7 lbs
Hex/Screw Size & Type (.13/16-16 x 1.06
Hex/Screw Size & Type (.5/16-24 x .38
Hole Diameter (Primary)0.88 in
Hole Diameter (Secondar.0.27 in
Includes CoverNo
Input Wire Range500 kcmil-4 AWG
International ShippingNo
ItemPower Distribution Block
Item NumberMPDB69112
Length5.7 in
Length (Straight Wirewa.5.7 in
Line Side Wire Size Ran.4 AWG - 500 kcmil
Line/Load ConnectionBox Lug/Box Lug
ManufacturerMersen, formerly Ferraz.
Manufacturer Part NumberMPDB69112
MersenBrand
Mounting TypePanel Mount
MPDB69112Stock Code
MpnMPDB69112
Net Weight3.7 lbs
Number of Inputs per Po.2
Number of Outputs per P.12
Number of Poles2
Output Wire Range4-14 AWG
Overall Depth3.55 in
Overall Length5.7 in
Overall Width5.32 in
Primary TypePower Distribution
Product Height3.55 in
Product Length5.7 in
Product SeriesMPDB
Product Width5.31 in
RoHSYes
ROHS Compliant, ULUL Listed
SeriesMPDB Series
SKUZO-G5364414
SubCategoryElectrical
UL ComplianceUL1953
UPC782001452513
Voltage Rating1000 V
Voltage Rating (AC)600 VAC
Width5.32 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB00JLAZGXQ171.5513Mersen171.55 @ 3
thumbzoomsustainablesupply.comC1176279190.513Mersen2.19190.5 @ 3
us.rs-online.com71938021198.3213Mersen198.32 @ 3
thumbzoomZoroG5364414207.9913Mersen6.57207.99 @ 3
thumbzoomsimsupply.comZO-G5364414241.3613Mersen241.36 @ 3
thumbzoomRaptor SuppliesAF8ECQ243.749902513MERSEN243.7499025 @ 3
thumbzoomGalcoMPDB69112-SHAW273.433Mersen, formerly Ferraz Shawmu3.7273.4 @ 3
thumbzoomturtle.comCS MPDB69112311.113MERSEN311.1 @ 3
thumbzoombulbspro.comMPDB69112335.1413Mersen335.14 @ 3
thumbzoomUnited Electric592764484.3213Mersen484.32 @ 3
