METSEPM5560

B011ON9N4U

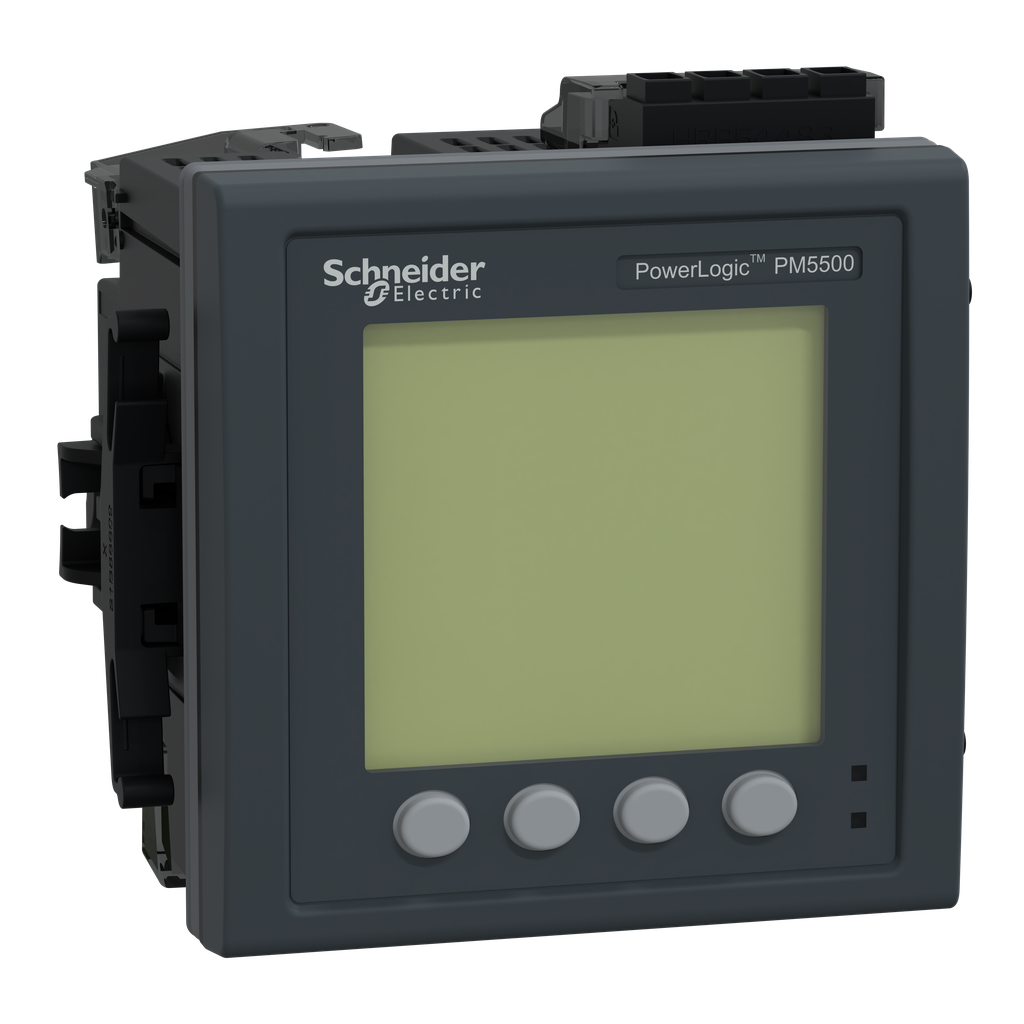

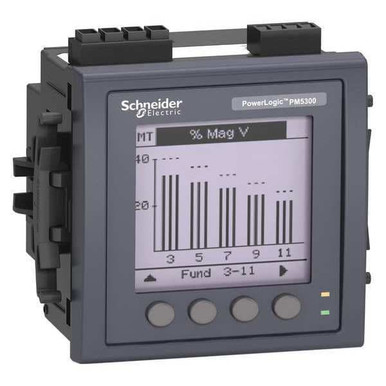

Power Meter, PM5000 Series, , 20 Vac to 828 Vac

Power Meter, PM5000 Series, , 20 Vac to 828 Vaczoom

Attributes

Key Value
[In] rated current1 A
[Us] Rated Supply Volta.100...300 V DC || 90....
Accuracy+/-0.20%, Apparent powe.
accuracy classClass 0.2S active energ.
Accuracy Classclass 0.2S active energ.
ambient air temperature.-25?70 ?C
Ambient Air Temperature.-25-70 ?C
Ambient Air Temperature.-40-85 ?C
ambient air temperature.-40?85 ?C
Amps1 A, 5 A
analogue input typeVoltage (impedance 5 MO.
ApplicationGateway;WAGES metering;.
BrandSchneider Electric
California proposition .WARNING: Cancer and Rep.
California Proposition .Cancer and Reproductive.
Catalog NumberMETSEPM5560
China Rohs RegulationX
Circularity ProfileENVEOLI1310016EN
communication gatewayEthernet/serial
Communication GatewayEthernet/serial
Communication Port Prot.Modbus RTU and ASCII 9..
communication port prot.Modbus RTU and ASCII at.
Communication Port Supp.RS485 || ETHERNET
communication port supp.RS485
Communication Port TypeRS485
ComponentPower meter
connections ? ter.Voltage circuit: screw .
Connections - Terminalsvoltage circuit screw t.
Country of OriginIN - India, India
Current Stock9
Data Recordingevent logs || maintenan.
data recordingEvent logs
Depth72 mm, 2.83 in
depth72 mm
device applicationGateway
Device Applicationgateway || WAGES meteri.
Device Short NamePM5560
device short namePM5560
DisplayLCD
Display Resolution128 x 128 pixels
display resolution128 x 128 pixels
display typeBacklit LCD
Display TypeBacklit LCD
ECCNEAR99
electromagnetic compati.Limits for harmonic cur.
Electromagnetic Compati.8 kV level 4 conforming.
Enclosure RatingNot Enclosed
Environmental DisclosureENVPEP1310016EN
Ethernet ServiceSNTP client || SNMP-Tra.
Ethernet serviceSNTP client
Eu Rohs DirectiveCompliant
FeaturesMulti-Voltage
frequency measurement r.45?65 Hz
Frequency Measurement R.45-65 Hz
Frequency Rating60 Hz;50 Hz
FunctionPower
height96 mm
Height96 mm, 3.78 in
Hz50/60
Indicator128 x 128 pixels;Tariff.
Information Displayedtariff 8)
information displayedTariff (8)
Input Voltage120/480V AC, 125/250V DC
InterfaceModbus RTU and ASCII 9..
International ShippingNo
IP degree of protectionIP52 front: conforming .
Ip Degree Of Protectiondisplay IP54 IEC 60529 .
ItemPower meter
Item TypePower meter;Current;vol.
Lead TimeExpected to ship in 1-2.
Line Rated Current1 A || 5 A
Made in USANo
ManufacturerSchneider Electric
maximum power consumpti.10 VA at 480 V
Maximum Power Consumpti.16 VA 480 V
Measurement Accuracyapparent power +/- 0.5 .
measurement accuracyApparent power +/- 0.5 %
Measurement Current50-10000 mA
measurement current5?10000 mA
measurement voltage20?400 V AC 45?65 Hz be.
Measurement Voltage20-400 V AC 45...65 Hz .
MeasuresCurrent, Data Logging, .
Memory Capacity1.1 MB
memory capacity1.1 MB
Mercury FreeYes
Mercury freeYes
Meter Range20 to 690V
metering typeMeasured neutral current
Metering Typemeasured neutral curren.
Monitoring Accuracy Cla.Class 0.2S
Monitoring ApprovalIEC 61557-12, EN 50470-.
Monitoring Input Curren.5-10000 mAmp
Monitoring InterfaceEthernet Modbus TCP/IP .
Monitoring Measuring Ra.128 samples/cycle
Monitoring Primary Rate.1 Amp, 5 Amp
Monitoring Supply Volta.125-250 VDC, 100-480 VAC
MountingFlush
Mounting ModeFlush-mounted
mounting modeFlush-mounted
Mounting SupportFramework
mounting supportFramework
Mounting TypePanel Mount
MpnMETSEPM5560
Net Weight450 g
net weight450 g
Network Frequency60 Hz || 50 Hz
network frequency60 Hz
number of inputs4 digital
Number Of Inputs4 digital
Number Of Outputs2 digital
number of outputs2 digital
Number of Units in Pack.1
operating altitude3000 m
Operating Temp. Range-25 Degrees to 70 Degr.
Output2 digital
Package 1 Height12.91 cm
Package 1 Length13.277 cm
Package 1 Weight661 g
Package 1 width13.271 cm
Phase3
Poles Description3P + N || 3P || 1P + N
pollution degree2
Pollution Degree2
Power Quality AnalysisUp to the 63rd harmonic
power quality analysisUp to the 63rd harmonic
Product CertificationsCE IEC 61010-1 || cULus.
product certificationsCE conforming to IEC 61.
product namePowerLogic PM5000
Product NamePowerLogic PM5000
product or component ty.Power meter
Product Or Component Ty.Power meter
RangePowerLogic
rangePowerLogic
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Relative Humidity5-95 % 50-50 ?C non-con.
relative humidity5?95 % at 50 ?C
Ride-Through Time35 ms 120 V AC typical .
ride-through time35 ms 120 V AC typical
Rohs Exemption Informat.Yes
sampling rate128 samples/cycle
Sampling Rate128 samples/cycle
SeriesPM5000 Series, PowerLog.
Size3.78
SKUZO-G6914503
Special Features128 samples/cycle;Alarm.
StandardEN 50470-3;IEC 61557-12.
StandardsANSI C12.20 Class 0.2
standardsEN 50470-3
Standards : EN 50470-3 .2015
Sub BrandPowerLogic PM5000;PM5560
SubCategoryElectrical
supply voltage125?250 V DC
Sustainable Offer StatusGreen Premium product
Sustainable offer statusGreen Premium product
Toxic Heavy Metal FreeYes
TypePower
Type Of Measurementcurrent || voltage || f.
type of measurementCurrent
type of network3P + N
Unit Type of Package 1PCE
UNSPSC39121106
UPC785901977247
UPC Code785901977247
Voltage Rating100...300 V DC;90...528.
web servicesAlarm notification by e.
Web Servicesalarm notification by e.
WeeeThe product must be dis.
WEEEThe product must be dis.
Width96 mm, 3.78 in
width96 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommodiconpac.com5391820.01In StockSchneider Electric1.4542820.0 @ 1
thumbzoomNex InstrumentMETSEPM55601280.01In StockSchneider Electric1280.0 @ 1
RS Delivers913-97561760.521In StockSchneider Electric1760.52 @ 1
thumbzoomkempstoncontrols.co.ukMETSEPM55601762.507891In StockSchneider1762.50789 @ 1
alliedcontrols.comMETSEPM55602298.711In StockSchneider Electric2298.71 @ 1
thumbzoomZoroG69145032305.99116Schneider Electric1.352305.99 @ 1
us.rs-online.com703707182308.2314Schneider Electric2308.23 @ 1
thumbzoomNewark51X60632354.391In StockSCHNEIDER ELECTRIC2354.39 @ 1
thumbzoomsustainablesupply.comC29267442441.11In StockSchneider Electric1.412441.1 @ 1
thumbzoomRadwellMETSEPM55602450.01In StockSCHNEIDER ELECTRIC SQUARE D2450.0 @ 1
thumbzoommidwestapplianceparts.comMETSEPM5560-SQ-P2627.851In StockSquared2627.85 @ 1
thumbzoomsimsupply.comZO-G69145032731.2319Schneider Electric2731.23 @ 1
Grainger31HK342826.01In Stock16SCHNEIDER ELECTRIC2826.0 @ 1
thumbzoommayerelectric.comSQDMETSEPM55603381.891In StockSCHNEIDER ELECTRIC0.993381.89 @ 1
thumbzoomRaptor SuppliesAG2FBT3629.3315761In StockSCHNEIDER ELECTRIC3629.331576 @ 1
thumbzoomcrescentelectric.com3077013647.31In StockSchneider Electric3647.3 @ 1
rspsupply.comSCHNEIDER METSEPM55603711.831In StockSchneider Electric3711.83 @ 1
Graybar256524623832.718412Square D (Schneider Electric)3832.7184 @ 1
