Amp - Te Connectivity 5745036-2

B00DKC91WI

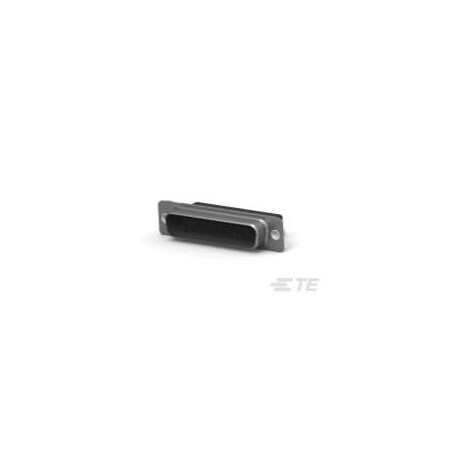

Amp - Te Connectivity D Sub Shell, Plug, Size 3, Steel - 5745036-2

Amp - Te Connectivity D Sub Shell, Plug, Size 3, Steel - 5745036-2zoom

Attributes

Key Value
Agency ApprovalsUL Recognized ; UL List.
Alternate Mfr Part Numb.5745036-2
AngleStraight
ApplicationCommercial
Cable Insulation Diamet.5.51 ? 11.05
CategoryConnectors, Interconnec.
Centerline (Pitch).108, .109, .11, 2.74, .
Circuit ApplicationSignal
ColorContacts Not Included
CommentClinch Nut: 4-40 thread.
ConnectorWire & Cable
Connector StylePlug, Plug for Male Con.
Connector SystemCable-to-Cable
Connector Type25
Contact Size20
Contact TypeFree Hanging (In-Line)
Country of Origin (subj.China
Dielectric MaterialBlack
FeaturesSteel, Tin Plated
Flange FeatureGrounding Indents
GenderMale
GradeStandard
Grounding IndentsWith
Housing FinishTin
Ingress Protection-
Insert Flammability Rat.UL 94V-0
Insert MaterialNylon/Polyester, Thermo.
Mating Connector LockWith
Mating Connector Lock T.Clinch Nut, 4-40 UNC
Mating CyclesThermoplastic
MfrTE Connectivity AMP Con.
Mounting TypeCable Side (4-40)
Note2
Number of Contacts25
Number of Positions25, 3 (DB, B)
Number of Rows2
Operating Temperature-
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
PackageActive
Packaging MethodPackage
Packaging Quantity400
Part StatusD-Sub
Primary TypeD-Sub
Product TypeConnector
SealableNo
SeriesBulk, HDP20 Series
Shell Finish Thickness-
Shell MaterialSteel, Full Metal Shell
Shell Material, Finish200?in (5.08?m)
Shell PlatingTin
Shell Plating MaterialTin
Shell Size3
Shell Size, Connector L.Signal
Shell TypeFull Metal Shell
ShieldedYes
StandardsUL94 V-0
TerminationCrimp
TypeCable Plug
UL Flammability RatingUL 94V-0
Voltage Rating250 V
Wire Size20 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com5745036-25.411841TE Connectivity / AMP Brand5.41 @ 50
HotendaH11903706.51404TE Connectivity AMP Connectors6.5 @ 50
TE Connectivity5745036-26.506281671TE Connectivity (TE)6.50628 @ 50
thumbzoomDigi-KeyA31918-ND6.979150TE Connectivity AMP Connectors6.979 @ 50
thumbzoomZoroG9009463688.0150Te Connectivity8.0 @ 50
thumbzoomNewark42K73668.81150AMP - TE CONNECTIVITY8.81 @ 50
us.rs-online.com700854959.821804TE Connectivity9.82 @ 50
AmazonTPB00DKC91WI10.841502T-E Connectivity10.84 @ 50
RS Delivers782-611810.872150TE Connectivity10.872 @ 50
