- mpnEC13B
- brandname: US Motors
- manufacturername: US Motors

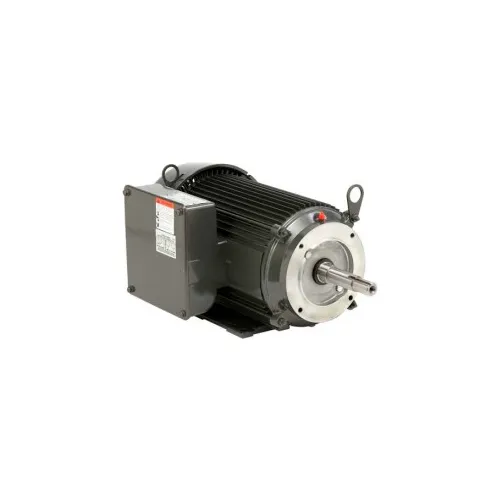

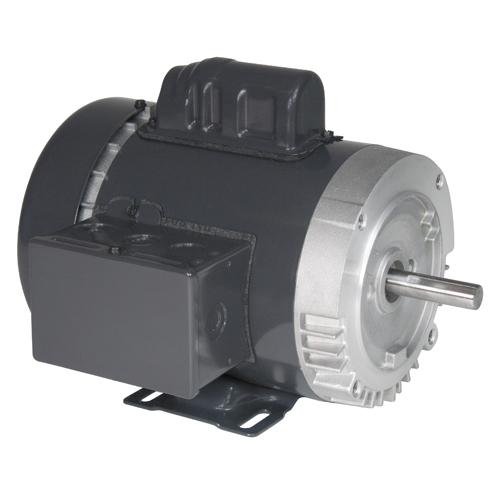

U.S. Motors US Motors Pump, 2 HP, 1-Phase, 3450 RPM Motor, EC13B
- Brand: U.S. Motors
- PartNumber: EC13B
- Binding: Misc.
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 9.6-9.0 |
| Bearings | Ball |
| Capacitor | 35MFD/370VAC |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 41.80 |
| Family Series | US Motors Motors |
| FL Amps | 9.6-9.0 |
| Frame | 56C |
| Frequency | 60 Hz |
| Gross Weight | 42.2 lbs |
| Hertz | 50, 60 |
| Horsepower | 2 hp |
| HP | 2 |
| Hz | 50/60 |
| Insulation Class | F |
| Item | Motor,2HP,3450,2850RPM,. |
| Item Number | EC13B |
| Kilowatts | 1.5 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | T063CPH1452014J |
| Manufacturer Part Number | EC13B |
| Maximum Ambient Tempera. | 40? C |
| Model Number | T063CPH1452014J |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face, Rigid |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overload Protection | Automatic |
| Part Number | EC13B |
| Phase | 1 |
| Product Type | General Purpose, Capaci. |
| Rotation | Reversible |
| RPM | 3450, 3,450 RPM |
| Ship Weight | 38 lbs. |
| Speed (RPM) | 3450 |
| Thermal Protection | Automatic |
| Voltage | 208V, 230V |
| Voltage (AC) | 208-230 VAC, 220 VAC |
| Volts | 208, 230, 220 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0919963 | 548.0 | 1 | In Stock | | U.S. Motors | 38.0 | 548.0 @ 1 |
 | Global Industrial | WBB465588 | 686.0 | 1 | In Stock | 17 | US Motors | | 686.0 @ 1 |
 | emotorpro.com | EC13B | 741.49 | 1 | In Stock | | U.S. Motors | 38.0 | 741.49 @ 1 |
 | motorsandcontrol.com | EC13B | 756.0 | 1 | In Stock | | US Motors (Nidec) | 41.8 | 756.0 @ 1 |
 | National Supply Network | B465588 | 762.39 | 1 | In Stock | | US MOTORS | | 762.39 @ 1 |
 | Galco | EC13B-USM | 774.0 | 1 | In Stock | | US Motors | 42.2 | 774.0 @ 1 |
| motionindustries.com | 04385279 | 990.66 | 1 | In Stock | | US Motors (Nidec) | | 990.66 @ 1 |
