- mpnEE515
- brandname: US Motors
- manufacturername: US Motors

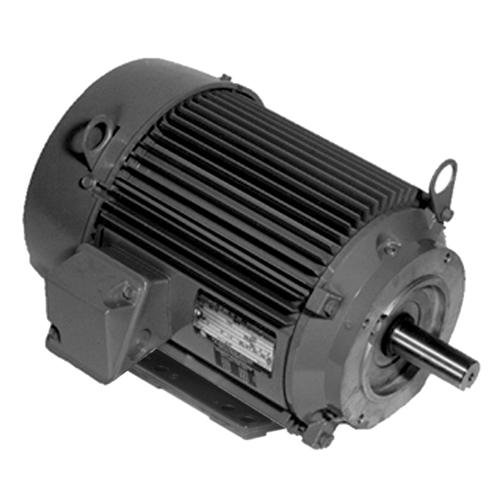

US Motors/Emerson Ee515 3/4hp 3ph Tefc Motor
- PartNumber: EE515
- Binding: Misc.
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| Amps | 2.8-2.7/1.35 |
| Bearings | Ball |
| Body Dia. | 5.9 in |
| Conduit Box Location | Exterior |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Enclosure | TEFC |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 18.70 |
| FL Amps | 2.8-2.7/1.35 |
| Frame | 56J |
| Full Load Amps | 2.8-2.7/1.35 |
| Full Load Amps @ 50Hz | 2.8-2.7/1.35 A |
| Gross Weight | 32.14 lbs |
| Hertz | 50, 60 |
| HP | 3/4, 0.75 |
| HP @ 50Hz | 3/4 |
| Hz | 50/60, 60/50 |
| Ins. Class | B |
| Insulation Class | B |
| Inverter Rated | No |
| Item | Motor |
| Length Less Shaft | 9 5/16 in |
| Manufacturer | US Motors (Nidec) |
| Manufacturer Model # | P063TLM4857013J |
| Max. Ambient Temp. | 104 Degrees F |
| Max. SF Amps | 3.7-3.6/1.8 A |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | J Face |
| Motor Service Factor | 1.5 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CCW |
| Motor Sub Application | Blank |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Face |
| Nameplate RPM | 3,450/2,850 |
| No. of Speeds | 1 |
| Nominal Efficiency | 82.7 % |
| Number of Speeds | 1 |
| Overall Length | 11 7/8 in |
| Part Number | EE515 |
| Phase | 3, Three |
| Product Type | Pump, Three Phase |
| Rotation | CCW Shaft End |
| RPM | 3450 |
| RPM @ 50Hz | 3,450/2,850 |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.50 |
| Service Factor @ 50Hz | 1.5 |
| Shaft Dia. | 5/8 in |
| Ship Weight | 17 lbs. |
| Speed (RPM) | 3450 |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208-230/460V AC, 208V, . |
| Voltage @ 50Hz | 208-230/460 |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460 |
| Weight | 32.1 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB466611 | 236.95 | 1 | In Stock | | US Motors | | 236.95 @ 1 |
 | emotorpro.com | EE515 | 251.32 | 1 | In Stock | | U.S. Motors | 17.0 | 251.32 @ 1 |
 | Galco | EE515-USM | 256.71 | 1 | In Stock | | US Motors | 32.14 | 256.71 @ 1 |
 | motorsandcontrol.com | EE515 | 256.96 | 1 | In Stock | | US Motors (Nidec) | 18.7 | 256.96 @ 1 |
 | Zoro | G1931862 | 257.18 | 1 | In Stock | | U.S. Motors | 22.0 | 257.18 @ 1 |
 | National Supply Network | B466611 | 259.64 | 1 | In Stock | | US MOTORS | | 259.64 @ 1 |
 | bscsource.com | EE515 | 403.99 | 1 | In Stock | | US Motors | | 403.99 @ 1 |
 | Guardian | 81423113 | 433.67 | 1 | In Stock | | US Motors | | 433.67 @ 1 |
