- mpnEU09
- brandname: US Motors
- manufacturername: US Motors

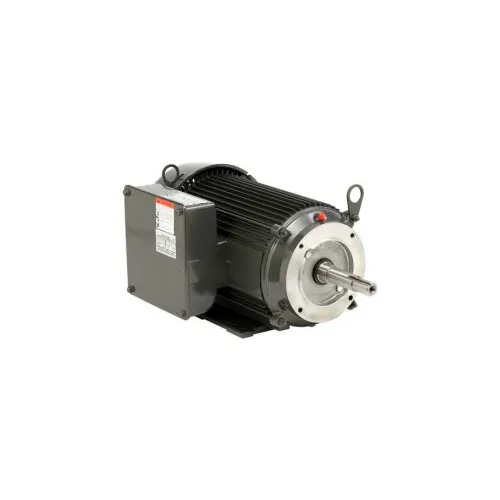

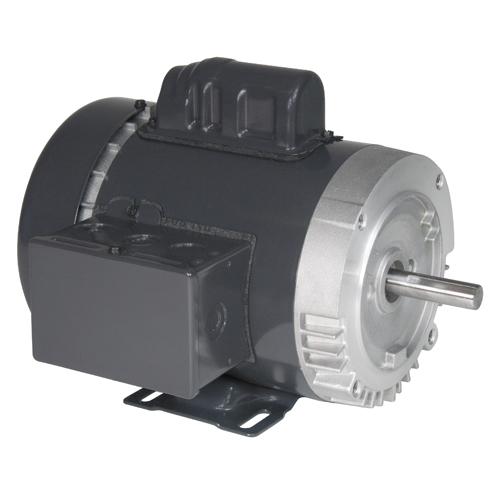

U.S. Motors US Motors Pump, 1 1/2 HP, 1-Phase, 3450 RPM Motor, EU09
- Brand: U.S. Motors
- PartNumber: EU09
- Binding: Misc.
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 16.6/9.0-8.3 |
| Bearings | Ball |
| Bolt Circle Dia. | 5 7/8 in |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | C-Face |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 43.23 |
| Family Series | US Motors Motors |
| FL Amps | 16.6/9.0-8.3 |
| Frame | 56J |
| Frequency | 60 Hz |
| Full Load Amps | 16.6/9.0-8.3 |
| Gross Weight | 40 lbs |
| Height | 8 5/8 in |
| Hertz | 50, 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1 1/2, 1-1/2 |
| Hz | 50/60, 60/50 |
| Ins. Class | F |
| Insulation Class | F |
| Item | Motor |
| Item Number | EU09 |
| Kilowatts | 1.1 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | C063HMF5035013J |
| Manufacturer Part Number | EU09 |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | C063HMF5035013J |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Mounting Type | J-Face/Rem Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CCW |
| Motor Sub Application | Commercial Pump |
| Motor Thermal Protection | Auto |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | J-Face, Removable Base |
| Nameplate RPM | 3,450/2,850 |
| NEMA Frame | 56J |
| Net Weight | 0 lbs |
| Nominal Efficiency | 83.2 % |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overload Protection | Automatic |
| Part Number | EU09 |
| Phase | 1, Single |
| Product Type | Pump, Capacitor Start |
| Rotation | CCW Shaft End |
| RPM | 3450, 3,450 RPM |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/2 in |
| Ship Weight | 40 lbs. |
| Speed (RPM) | 3450 |
| Thermal Protection | Automatic |
| Voltage | 110/220V, 115/208-230V,. |
| Voltage (AC) | 110 VAC, 115 VAC, 208-2. |
| Volts | 115, 208, 230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0918301 | 468.99 | 1 | In Stock | | U.S. Motors | 40.0 | 468.99 @ 1 |
 | Guardian | 53655825 | 512.93 | 1 | In Stock | | US Motors | | 512.93 @ 1 |
 | bscsource.com | EU09 | 516.09 | 1 | In Stock | | US Motors | | 516.09 @ 1 |
 | Global Industrial | WBB465301 | 574.0 | 1 | In Stock | | US Motors | | 574.0 @ 1 |
 | emotorpro.com | EU09 | 622.66 | 1 | In Stock | | U.S. Motors | 40.0 | 622.66 @ 1 |
 | motorsandcontrol.com | EU09 | 634.84 | 1 | In Stock | | US Motors (Nidec) | 43.23 | 634.84 @ 1 |
 | National Supply Network | B465301 | 641.39 | 1 | In Stock | | US MOTORS | | 641.39 @ 1 |
 | Galco | EU09-USM | 649.97 | 1 | In Stock | | US Motors | 40.0 | 649.97 @ 1 |
| motionindustries.com | 04377185 | 831.9 | 1 | In Stock | | US Motors (Nidec) | | 831.9 @ 1 |
