- mpnU3P2DC
- brandname: US Motors
- manufacturername: US Motors

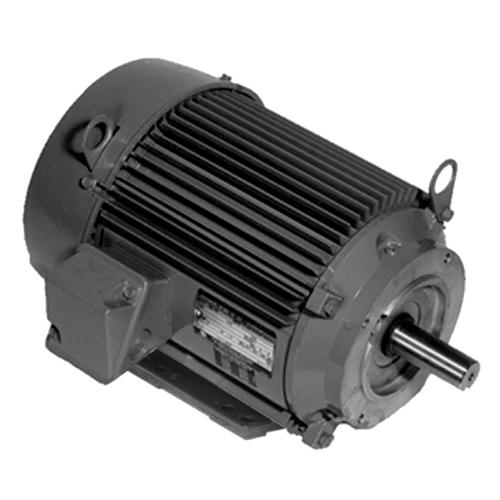

US Electric Motors-Nidec, U3P2DC, 3HP, 1765RPM, 3PH, 230V;460V;190V;380V, 182TC Frame, General Purpose Motor Motor.
- Brand: US Motors-Nidec
- PartNumber: U3P2DC
- Manufacturer: US Motors-Nidec
- Label: US Motors-Nidec
Attributes
| Key | Value |
|---|
| Amps | 8.4-7.8/3.9 |
| Bearings | Ball |
| Brand | U.s. Motors |
| Composition | Aluminum |
| Construction | Aluminum |
| Drive End Flange Type | C-Face |
| Efficiency | 89.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 77.00 |
| Family Series | US Motors Motors |
| FL Amps | 8.4-7.8/3.9 |
| FL Efficiency | 89.5 |
| Frame | 182TC |
| Frequency | 60 Hz |
| Gross Weight | 70 lbs |
| Hertz | 50, 60 |
| Horsepower | 3 hp |
| HP | 3 |
| Hz | 50/60 |
| Insulation Class | F |
| International Shipping | No |
| Item | General Purpose Motor |
| Item Number | U3P2DC |
| Kilowatts | 2.2 kW |
| Length Less Shaft | 13 3/8 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | CK69 |
| Manufacturer Part Number | U3P2DC |
| Manufacturers Warranty . | 2 yr |
| Maximum Ambient Tempera. | 40? C |
| Model Number | CK69 |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Aluminum |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face Footed |
| Mpn | U3P2DC |
| Nameplate RPM | 1,800 |
| NEMA Frame | 182TC |
| Net Weight | 4.375 lbs |
| Nominal Efficiency | 89.5 % |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 16 1/4 in |
| Part Number | U3P2DC |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1,765 RPM, 1765 |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.25 |
| Shaft Dia. | 1 1/8 in |
| Shaft Length | 2 3/4 in |
| Ship Weight | 70 lbs. |
| SKU | ZO-G4566301 |
| Speed (RPM) | 1765 |
| Standards | CE, CSA, UL |
| SubCategory | Motors/Ac Motors |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | U3P2DC-USM | 416.88 | 1 | 2 | | US Motors | 70.0 | 416.88 @ 1 |
 | Global Industrial | WBB466486 | 563.0 | 1 | In Stock | | US Motors | | 563.0 @ 1 |
 | motorsandcontrol.com | U3P2DC | 568.72 | 1 | 4 | | US Motors (Nidec) | 77.0 | 568.72 @ 1 |
 | emotorpro.com | U3P2DC | 580.35 | 1 | In Stock | | U.S. Motors | 70.0 | 580.35 @ 1 |
 | sustainablesupply.com | C1549371 | 663.26 | 1 | In Stock | | US Motors | 62.95 | 663.26 @ 1 |
 | National Supply Network | B466486 | 664.34 | 1 | In Stock | | US MOTORS | | 664.34 @ 1 |
 | Zoro | G4566301 | 744.99 | 1 | 1 | | U.S. Motors | 62.95 | 744.99 @ 1 |
 | simsupply.com | ZO-G4566301 | 909.43 | 1 | In Stock | | U.s. Motors | | 909.43 @ 1 |
| motionindustries.com | 04392900 | 1046.78 | 1 | In Stock | | US Motors (Nidec) | | 1046.78 @ 1 |
