ASHCROFT 451379SSL04L1500#

B007ID7BM2

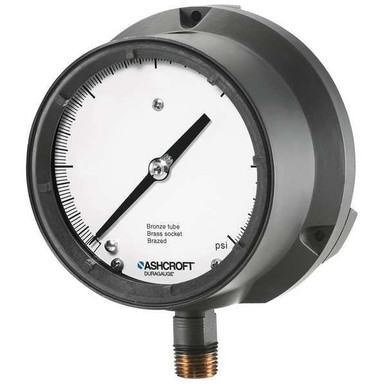

Ashcroft Duragauge Type 1379 Solid Front Aluminum Case Glycerin Filled Pressure Gauge, 316 Stainless Steel Bourdon Tube and Tip, 316 Stainless Steel Socket, 4-1/2" Dial Size, 1/2" NPT Lower Connection, 0/1500 psi Pressure Range

Ashcroft Duragauge Type 1379 Solid Front Aluminum Case Glycerin Filled Pressure Gauge, 316 Stainless Steel Bourdon Tube and Tip, 316 Stainless Steel Socket, 4-1/2" Dial Size, 1/2" NPT Lower Connection, 0/1500 psi Pressure Rangezoom

Attributes

Key Value
(Combined) Gauge CaseEpoxy Coated Aluminum
Accuracy+/-0.5%
Accuracy GradeASME B40.100 Grade 2A
Accuracy ScaleFull Scale
Ambient Operating Tempe.20 Degrees to 150 Degr.
Basic Gauge Case Materi.Plastic
Basic Gauge Lens Materi.Plastic
Basic Gauge Sensor Mate.Stainless Steel
Basic Gauge Socket Mate.Stainless Steel
Basic Gauge Wetted PartsStainless Steel
Bezel MaterialPolypropylene
Blowout Safety BackYes
Bolt Circle Diameter5.375 in
BrandAshcroft
Burst Pressure21,400 psi
Calibration Certificate.No
Case ColorBlack
Case ConstructionSolid Front with Pressu.
Case Depth3.375 in
Case Diameter5.812 in
Case FinishEpoxy Coated
Cleaned for Oxygen Serv.No
ColorBlack
Compatible Process MediaChemical and Petrochemi.
Connection LocationLower
Connection Size1/2 in NPT
Current Stock42
Dial ColorWhite
Dial Face ColorWhite
Dial Face MaterialAluminum
Dial Size (In.)4-1/2
Diameter5-13/16"
Dry Dampening FeatureNone
Field FillableYes
For Use WithMedia Compatible with B.
Freeze Resistant Moveme.No
Gauge Accuracy+/-0.50%
Gauge Accuracy GradeGrade 2A - Process
Gauge ApplicationProcess
Gauge Case ColorBlack
Gauge Case LiquidGlycerin
Gauge Case MaterialAluminum
Gauge Connection Locati.Bottom
Gauge Connection Size1/2 in
Gauge Connection TypeMNPT
Gauge Filled WithGlycerin
Gauge Lens MaterialAcrylic
Gauge Mounting MethodSurface
Gauge Nominal Dial Size4 1/2 in
Gauge Panel MountableYes
Gauge Primary Range Num.200
Gauge Primary Range Sma.20
Gauge Primary Range Uni.psi
Gauge Primary Range Val.0 to 1500
Gauge Sensor Material316L Stainless Steel
Gauge Socket Material316 Stainless Steel
Gauge Wetted PartsStainless Steel
Graduations200 psi
Hazardous Location Rati.Not Rated
Includes Calibration Ce.No
Includes Mounting Hardw.No
Includes Vent PlugNo
International ShippingNo
ItemProcess Pressure Gauge
Lens MaterialGlass
Lens Material - GaugeGlass
Liquid FilledYes
Liquid-Filled CaseYes
Manufacturer Warranty L.10 yr
MaterialPhenolic/Thermoplastic
Max. Pressure (PSI)1500
Movement Material400 Stainless Steel
Movement TypeRotary
Mpn451379SSL04L1500#
Nominal Dial Size4 1/2 in
Non-SparkingNo
Operating Temp. Range0 Degrees to 150 Degre.
Panel Mount Characteris.3 0.218 Dia Holes on 5 .
Panel-MountableNo
Pointer CharacteristicsMicrometer Adjustable
Pointer ColorBlack
Pointer MaterialAluminum
Pressure and Vacuum Gau.Pressure Gauge
Pressure Gauge TypeProcess Pressure Gauge
Primary Pressure Range0 to 1,500
Primary Pressure Scale .Black
Primary Scale Minor Gra.20
Primary Scale Numeric I.200
Primary Scale Unitspsi
Process Connection Gend.Male
Process Connection Loca.Bottom
Process Connection Size1/2 in
Process Connection TypeNPT
Process Temperature Ran.20 Degrees to 150 Degr.
Range0 to 1500 psi
Removable BezelNo
Scale TypeSingle
Sensor Material316L Stainless Steel
Sensor TypeBourdon Tube
Series1379SSL
SKUZO-G3626542
Smallest Graduation20 psi
Socket Material316L Stainless Steel
SubCategoryTest Instruments
UPC723259820433
Vibration ResistanceLiquid-Filled

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB007ID7BM2141.01In Stock2Ashcroft Inc.141.0 @ 1
thumbzoomZoroG3626542159.95130Ashcroft4.05159.95 @ 1
thumbzoomsimsupply.comZO-G3626542161.28142Ashcroft161.28 @ 1
