Dayton 2Z842

mpn2Z842
brandname: DAYTON
manufacturername: DAYTON

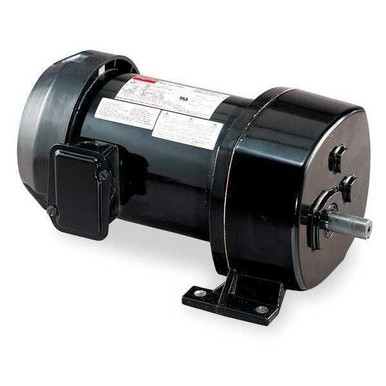

AC Gearmotor, 39 RPM, TEFC, 115V

AC Gearmotor, 39 RPM, TEFC, 115V

zoom

Brand: Dayton
PartNumber: 2Z842
Model: 2Z842
PackageQuantity: 1
Binding: Misc.
Manufacturer: Dayton
Label: Dayton

Attributes

Key	Value
Ambient (C)	40
Bearings	Heavy Duty Ball, Needle.
Brake	4Z447
Brand	Dayton
Current Stock	7
Enclosure	TEFC
Full Load Amps	5.50
Full Load Torque (In.-L.	450.0
Gear Case	Die Cast Aluminum
Gear Case Material	Die Cast Aluminum
Gear Material	Hardened Steel
Gear Ratio	43:1
Gear Type	Helical First Stage/Sub.
Gearmotor Brake Type	None
Gearmotor Enclosure	Totally Enclosed Fan-Co.
Gearmotor Mounting Posi.	All Angle
Gearmotor Phase	1
Gearmotor Rotation	CW/CCW
Gearmotor Shaft Orienta.	Parallel
Gearmotor Shaft Type	Single
Gearmotor Type	AC Gearmotor
Gearmotor Voltage	115V AC, 115 V AC
Gears	Hardened Steel, 1st Sta.
Housing	Die Cast Aluminum
Hz	60
Input HP	1/3
International Shipping	No
Item	AC Gearmotor
Keyway Depth	1/8 in
Keyway Width	3/16 in
Length Less Shaft	12 5/16 in, 12-5/16"
Length Less Shaft (In.)	12-5/16
Lubrication	Permanent Heavy Duty Ge.
Max. Ambient Temp.	40 Degrees C
Max. Torque	450 in.- lbs., 450.0 in.
Motor Type	Split-phase
Mount Hole Center-to-Ce.	2.5 in
Mount Hole Center-to-Ce.	7.13 in
Mounting	All Position
Mpn	2Z842
Nameplate RPM	39 RPM, 39
Output Shaft Diameter	3/4 in
Output Shaft Height	3 in
Output Shaft Length	1 1/2 in
Overall Height	6.63 in
Overall Width	8.13 in
Overhung Load	325 lbs.
Overhung Load (Lb.)	325
Phase	1
Rotation	Rev.
Seals	Lip Type on Input and O.
Shaft Dia. (Dimension U)	3/4"
Shaft Dimensions (In.)	3/4 x 1 1/2
Shaft Length (Dimension.	1.5"
Shaft Orientation	Parallel
Ship Weight	29 lbs.
SKU	ZO-G2560817
Standards	UL Recognized, CSA Cert.
SubCategory	Power Transmission
Thermal Protection	None
Type	Parallel Shaft
UPC	190735241301
Voltage Rating	115

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	AmazonTP	B000BHCGW2	519.45	1	In Stock	2	DAYTON		519.45 @ 1
	Zoro	G2560817	697.99	1	14		Dayton	28.65	697.99 @ 1
	sustainablesupply.com	C2674989	805.79	1	In Stock		Dayton	28.65	805.79 @ 1
	simsupply.com	ZO-G2560817	826.07	1	7		Dayton		826.07 @ 1
	emotorpro.com	2Z842	852.5	1	In Stock		Dayton	29.0	852.5 @ 1
	grainger.ca	WWG2Z842	1012.21630566	1	In Stock		DAYTON	28.65	1012.21630566 @ 1
	Raptor Supplies	AC4DVQ	1146.7251315	1	In Stock		DAYTON		1146.7251315 @ 1
