Kyocera TTX32R6001KW10

mpnTTX32R6001KW10
brandname: Kyocera
manufacturername: Kyocera

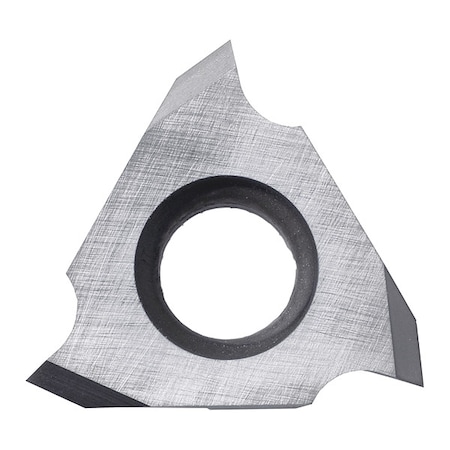

Kyocera TTX 32R6001 KW10 Grade Uncoated Carbide, External, 60 Degree Partial Profile, Right-Hand Threading Insert for Metric (M), Unified (UN) Threads (10 Pieces)

zoom

Brand: Kyocera
PartNumber: TTX32R6001KW10
PackageQuantity: 1
Manufacturer: Kyocera
Label: Kyocera

Attributes

Key	Value
ANSI Code	TTX32R6001
Chip-Breaker	No
Corner Radius	0.004 in
Cutting Direction	Right Hand
Finish - Machining	Bright (Uncoated)
For Toolholder	KTTXR10-3JXF, KTTXR1010.
Inscribed Circle	60 Degrees
Insert Holding Type	Screw
Insert Length	Screw
Insert Type	TTX
Item	Indexable Thread Turnin.
Manufacturer Grade	KW10
Material - Machining	Carbide
Max. Threads per Inch	28
Measurement System	Metric
Min. Thread per Inch	1 mm
Min. Thread Pitch	1 mm
Number of Cutting Edges	3
Primary Material Applic.	Aluminum, Brass, Bronze.
Thickness	1/8"
Thread Profile Type	60 Degrees Partial
Thread Standard	Metric/ISO; UN
Threading Location	External
Through Hole Inside Dia.	0.1730"

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G7963078	24.69	10	10	7	Kyocera	0.13	24.69 @ 10
