Lovejoy 68514477013

mpn68514477013
brandname: LOVEJOY
manufacturername: LOVEJOY

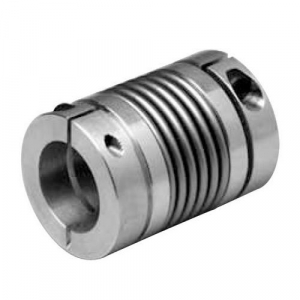

Lovejoy 77013 Size BWLC-78 Bellows Clamp Style Coupling, Complete Coupling, Inch, 0.625" Bore A, 0.625" Bore B, 2.598" OD, 3.071" Length, 531 in-lbs Nominal Torque, 8600 rpm Max Rotational Speed

Lovejoy 77013 Size BWLC-78 Bellows Clamp Style Coupling, Complete Coupling, Inch, 0.625" Bore A, 0.625" Bore B, 2.598" OD, 3.071" Length, 531 in-lbs Nominal Torque, 8600 rpm Max Rotational Speed

zoom

Brand: Lovejoy
PartNumber: 68514477013
Model: 68514477013
Size: 0.625 inches
PackageQuantity: 1
Binding: Misc.
Manufacturer: Lovejoy
Label: Lovejoy

Attributes

Key	Value
Angular Misalignment	1 ?
Application	Motion Control
Axial Misalignment	0.0160 in
Bellows Material	Stainless Steel
Bore A	0.625 in
Bore B	0.625 in
Clamp Screw Size	M8
Coupling Size	BWLC78
Cubic in ches	20.72803 in3
Hub Material	Aluminum
Keyway Size	No Keyway
Length thru Bore	0.768 in (19.50 mm)
Max. Bore (Dimensions I.	1.378 in (35.00 mm)
Max. Operating Temperat.	212.00 ?F
Max. Speed	8600.00 rpm
Min. Bore (Dimensions I.	0.551 in (14.00 mm)
Moment of in ertia	1.7090 lb-in2
Nominal Torque	531.00 in-lb
Outside Diameter	2.598 in (66.00 mm)
Overall Length	3.071 in (78 mm)
Parallel Misalignment	0.004 in
Style	Clamp
Torsional Stiffness	646050.00 in-lb /rad
Type	Bellows Coupling
Weight	1.32 oz
Weight (Complete Coupli.	21.16 oz

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	usmegastore.com	68514477013	369.1	1	In Stock		Lovejoy	0.0825	369.1 @ 1
	Megadepot	68514477013	380.8	1	In Stock		Lovejoy	0.0825	380.8 @ 1
	heavydutydepot.com	68514477013	380.8	1	In Stock		Lovejoy		380.8 @ 1
