CAI - SCHNEIDER ELECTRIC 750XBXRC-12D

B07J2WV9CC

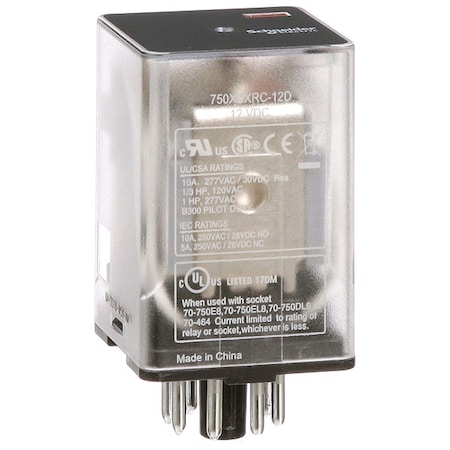

Schneider Electric 12VDC, 8-Pin Octal Base General Purpose General Purpose Relay; AC Contact Rating: 10A @ 277V

Schneider Electric 12VDC, 8-Pin Octal Base General Purpose General Purpose Relay; AC Contact Rating: 10A @ 277Vzoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 277V, 10 A @ 277V
Base Type - Plug In Rel.Octal
Body Depth2.05 in
Body Depth - Relay1.40 in, 1.4 in
Body Height1.4 in
Body Height - Relay2.09 in
Body Width1.38 in
Body Width - Relay1.38 in
Coil Voltage12 VDC
Coil Volts12V DC
Contact Current Rating10 A
Contact FormDPDT
Contact Form - RelayDPDT
Contact MaterialSilver Alloy, Gold Flas.
Contact Voltage Rating300 VAC
Control Voltage12
Current Rating10 A
DC Contact Rating - Rel.10 A @ 28V, 10A @ 28V
Family SeriesSchneider Miscellaneous
FeaturesClear Cover
Flat Pin WidthNot Applicable
FunctionGeneral Purpose
Green Environmental Att.RoHS 2011/65/EU Complia.
Gross Weight0 lbs
HP @ 120V1/3 hp
HP @ 240V1/2 hp
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Item Number750XBXRC-12D
ManufacturerSchneider
Manufacturer Part NumberC507197M
Mounting - RelayPlug In, Plug-In
Mounting TypeSocket Mount
Net Weight0 lbs
Number of Pins8
Number of Pins - Relay8
Overall Depth2.05 in
Overall Height - Relay2.09 in
Power Consumption - Rel.1.4 W
Primary TypePower Relays
Product Header750 Series Octal Relay
Push To TestNo
Relay TypeElectromechanical
Series750H Hazardous Location.
Socket Code - RelayA
StandardsUL, CSA, CE Marked, UL .
Status IndicatorMechanical Flag
Termination8-Pin Octal
Voltage Rating250 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com750XBXRC-12D11.7791In StockMagnecraft / Schneider Electric11.779 @ 1
grainger.caWWG35KR2718.83466571In StockSCHNEIDER ELECTRIC0.1618.8346657 @ 1
thumbzoomZoroG978453722.691122Schneider Electric0.1622.69 @ 1
thumbzoomGalco750XBXRC-12D-MGCR23.2710In StockSchneider23.27 @ 10
us.rs-online.com7036390529.2161Schneider Electric/Legacy Relays29.2 @ 1
thumbzoomRaptor SuppliesAH4TLZ32.50371151In StockSCHNEIDER ELECTRIC32.5037115 @ 1
thumbzoomNewark36X195933.2110In StockSCHNEIDER ELECTRIC/LEGACY RELAY33.21 @ 10
