Marathon Electric GT1114

mpnGT1114
brandname: Marathon Electric
manufacturername: Marathon Electric

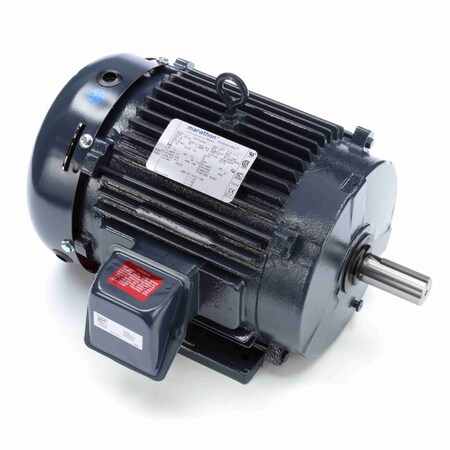

Marathon GT1114 215T Frame 215TTFC6080 TEFC General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 5 hp, 1200 RPM, 1 Speed, 575 VAC

Marathon GT1114 215T Frame 215TTFC6080 TEFC General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 5 hp, 1200 RPM, 1 Speed, 575 VAC

zoom

Brand: Marathon Electric
PartNumber: GT1114
Model: MGT1114
PackageQuantity: 1
Binding: Misc.
Manufacturer: Marathon Electric
Label: Marathon Electric

Attributes

Key	Value
Amps	5.6
Bearings	Ball
CC Number	CC003A
Country of Origin (subj.	China
Duty Cycle	Continuous
Efficiency	0.895
Enclosure Material	Iron
Enclosure Type	TEFC (Totally Enclosed .
Frame	215T
Full Load Amps	5.5
Green Certification or .	NEMA Premium(R) Rated
HP	5
Hz	60
Includes	Conduit Box
Ins. Class	F
Insulation Class	F
Inverter Rated	Yes
Item	General Purpose Motor
Length Less Shaft	16 5/8 in
Manufacturer Model #	215TTFC6080
Manufacturers Warranty .	1 yr
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Application	General Application
Motor Bearings	Ball
Motor Design	3-Phase
Motor Efficiency Group	NEMA Premium Efficient
Motor Enclosure Design	Totally Enclosed Fan-Co.
Motor Frame Material	Cast Iron
Motor Mounting Position	Horizontal
Motor Mounting Type	Rigid Base
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
Motor Thermal Protection	None
Mounting	Base
Mounting Orientation	Horizontal
Nameplate RPM	1,190
NEMA Design	B
No. of Speeds	1
Nominal Efficiency	92.4 %
Number of Speeds	1
Overall Length	20 in, 19.73"
Phase	3, Three
Product Type	Three Phase
Rotation	Reversible
RPM	1180
Service Factor	1.15
Shaft Dia.	1 3/8 in
Shaft Diameter	1-3/8"
Shaft Length	3.37", 3 3/8 in
Ship Weight	193 lbs.
Standards	UL Recognized (E49747),.
Usable @ 200V	No
Usable @ 208V	No
Voltage	575V AC
Volts	575
Weight	158 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	emotorpro.com	GT1114	1015.94	1	In Stock		Marathon	193.0	1015.94 @ 1
	Zoro	G7043886	1032.04	1	In Stock	5	Marathon		1032.04 @ 1
	grainger.ca	AOSGT1114	1420.43137424	1	In Stock		MARATHON MOTORS	193.0	1420.43137424 @ 1
