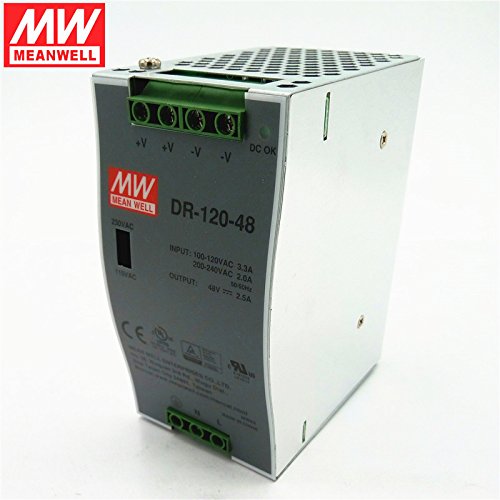

MEAN WELL DR-120-48 120W 48V 2.5A Single Output Industrial DIN Rail Mean well Power Supply

MEAN WELL DR-120-48 120W 48V 2.5A Single Output Industrial DIN Rail Mean well Power Supplyzoom

Attributes

Key Value
AC Current (Typ.)2.6A / 115VAC------1.6A.
Approx. Wattage120W
ConfigurationEnclosed
Dimension65.5 x 125.2 x 100mm (L.
Dimensions65.5 x 125.2 x 100 mm
Efficiency (Typ.)80%
EMC EmissionCompliance to EN55011, .
EMC ImmunityCompliance to EN61000-4.
FeaturesStandard
Hold up Time36ms/230VAC - - -32ms/1.
Industry Aliasesnew
Input Voltage100 VAC ; 110 VAC ; 115.
Input Voltage Range88-132/176-264 VAC
IP LevelNon-Waterproof
Isolation ResistanceI/P - O/P, I/P-FG: O/P-.
Line Regulation?0.5%
Load Regulation?1.0%
Mechanical FormEnclosed
Mounting TypeDIN Rail Mount
MTBF136.8.1Khrs min. MIL-HD.
Number of Outputs1
Output Current2.5 A
Output Power120 W
Output Voltage48V, 48 VDC
Over Voltage15 ~ 16.5V
Overload105 ~ 150% rated output.
Packing0.79Kg; 20pcs / 16.5Kg .
Primary TypeAC-DC
SeriesDR/DRP (Standard), DR S.
Storage Temp., Humidity-20 ~ +85?C, 10 ~ 95% RH
Temp. Coefficient?0.03%/?C (0 ~ 50?C)
TypeDIN Rail Type, Industri.
Voltage Tolerance?2.0%
Warranty3 Years Warranty
Wattage120
Working Humidity20 ~ 90% RH non-condens.
Working Temp.-10 ~ +60?C (Refer to ".

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoompowersupplymall.comDR-120-4839.431In StockMeanwell39.43 @ 1
Future Electronics405232052.561In StockMEAN WELL52.56 @ 1
AmazonTPB017U49TW857.651In Stock2MEAN WELL57.65 @ 1
AmazonUNKB00FRBTE5E61.991In StockMean Well61.99 @ 1
Onlinecomponents.comDR-120-4863.71156Mean Well63.71 @ 1
us.rs-online.com7088118763.821In StockMEAN WELL63.82 @ 1
thumbzoompeaktopeakpower.comDR-120-4869.671In StockMean Well69.67 @ 1
